Quick Details
-
Model Number:
-
FER1622
-
Weight:
-
580 kg
-
Suitable Excavator(ton):
-
16-22T
-
Max Torque(KNm):
-
180
-
Max syeterm pressure(bar):
-
220
-
Max/Min flow rate (L/min):
-
50/80
-
Max Hydraulic pressure(bar):
-
25
-
Weight(KG):
-
580
-
Pin centre /mm:
-
600
-
Tilt angle(°):
-
360
-
Time /Flow rate of incllnation (S/L/Min):
-
40
-
Time /Flow rate of rotation (S/L/Min):
-
7/25
-
Suitable excavator:
-
16-22T
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
China
-
Brand Name:
-
farsee parts
-
Model Number:
-
FER1622
-
Weight:
-
580 kg
-
Suitable Excavator(ton):
-
16-22T
-
Max Torque(KNm):
-
180
-
Max syeterm pressure(bar):
-
220
-
Max/Min flow rate (L/min):
-
50/80
-
Max Hydraulic pressure(bar):
-
25
-
Weight(KG):
-
580
-
Pin centre /mm:
-
600
-
Tilt angle(°):
-
360
-
Time /Flow rate of incllnation (S/L/Min):
-
40
-
Time /Flow rate of rotation (S/L/Min):
-
7/25
-
Suitable excavator:
-
16-22T
Product Description

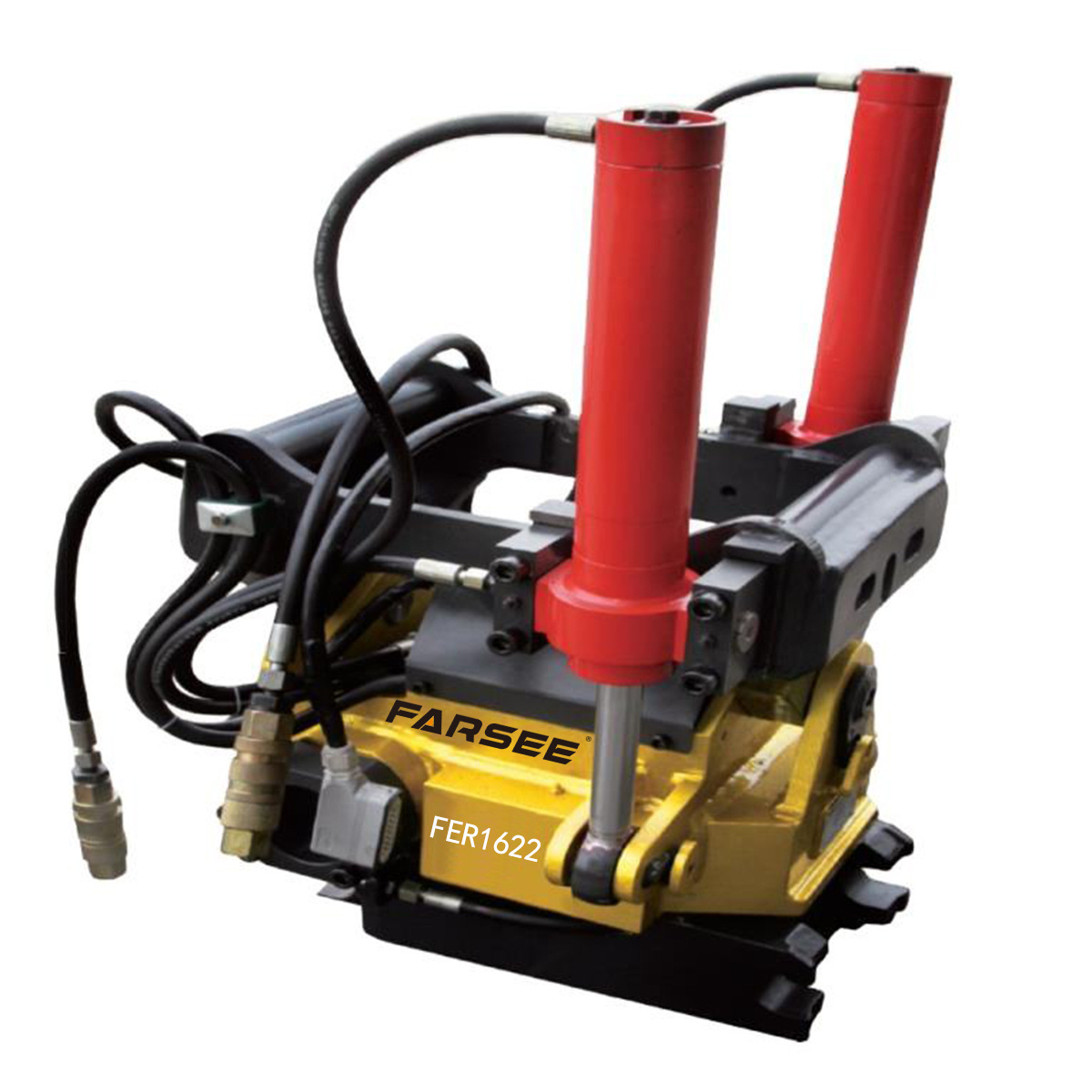

FARSEE TECH serials rotiltor, a connector with the function of rotation and jigging motion, is mainly used for replacement between excavator and different kinds of attachments.
Function: The attachments connected to the rotiltor can rotate around itself 360°and the rofilor also can filt 40°by its neutral surface. These can enlarge the working area,reduce labour intensity and improve the labouring efficiency and economic benefits.
Farsee parts provide both mechanical type and hydraulic type quick coupler.
Product Parameter
Please kindly send us what type you need and which machine you want fit,we will send you specification soon.
| Item | Quick Coupler-Rotiltor | |||||
| FER0103 | FER0307 | FER0712 | FER1216 | FER1622 | FER2232 | |
| Max Torque(KNm) | 18 | 45 | 90 | 130 | 180 | 240 |
| Max syeterm pressure(bar) | 220 | 220 | 220 | 220 | 220 | 220 |
| Max/Min flow rate (L/min) | 15/35 | 15/40 | 30/60 | 40/70 | 50/80 | 50/100 |
| Max Hydraulic pressure(bar) | 25 | 25 | 25 | 25 | 25 | 25 |
| Weight(KG) | 105 | 165 | 315 | 435 | 580 | 850 |
|
Pin centre /mm |
230 | 300 | 430 | 480 | 600 | 670 |
| Tilt angle(°) | 360 | 360 | 360 | 360 | 360 | 360 |
| Time /Flow rate of incllnation (S/L/Min) | 40 | 40 | 40 | 40 | 40 | 40 |
| Time /Flow rate of rotation (S/L/Min) | 7/25 | 7/25 | 7/25 | 7/25 | 7/25 | 7/25 |
| Suitable excavator | 1-3T | 3-7T | 7-12T | 12-16T | 16-22T | 22-32T |
