Quick Details
-
Applicable Industries:
-
Marine&Offshore
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOPHVAC
-
Core Components:
-
COMPRESSOR
-
Weight (KG):
-
220 KG
-
Product name:
-
Marine Packaged Air Conditioner
-
Application:
-
Passenger ships, Cargo ships, Oil platform, etc.
-
Cooling capacity:
-
7 Kw
-
Net weight:
-
220 KG
-
Fan type:
-
Centrifugal Fan
-
Condensor:
-
Shell and tube
-
Evaporator:
-
Copper tube cooper fins
-
Style:
-
Sea water cooled packaged
-
Control:
-
PLC
-
After-sales Service Provided:
-
YES
Quick Details
-
Type:
-
Cabinet Air Conditioner
-
Mounting:
-
Floor Standing
-
Airflow:
-
1050m³/h
-
Applicable Industries:
-
Marine&Offshore
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOPHVAC
-
Core Components:
-
COMPRESSOR
-
Weight (KG):
-
220 KG
-
Product name:
-
Marine Packaged Air Conditioner
-
Application:
-
Passenger ships, Cargo ships, Oil platform, etc.
-
Cooling capacity:
-
7 Kw
-
Net weight:
-
220 KG
-
Fan type:
-
Centrifugal Fan
-
Condensor:
-
Shell and tube
-
Evaporator:
-
Copper tube cooper fins
-
Style:
-
Sea water cooled packaged
-
Control:
-
PLC
-
After-sales Service Provided:
-
YES

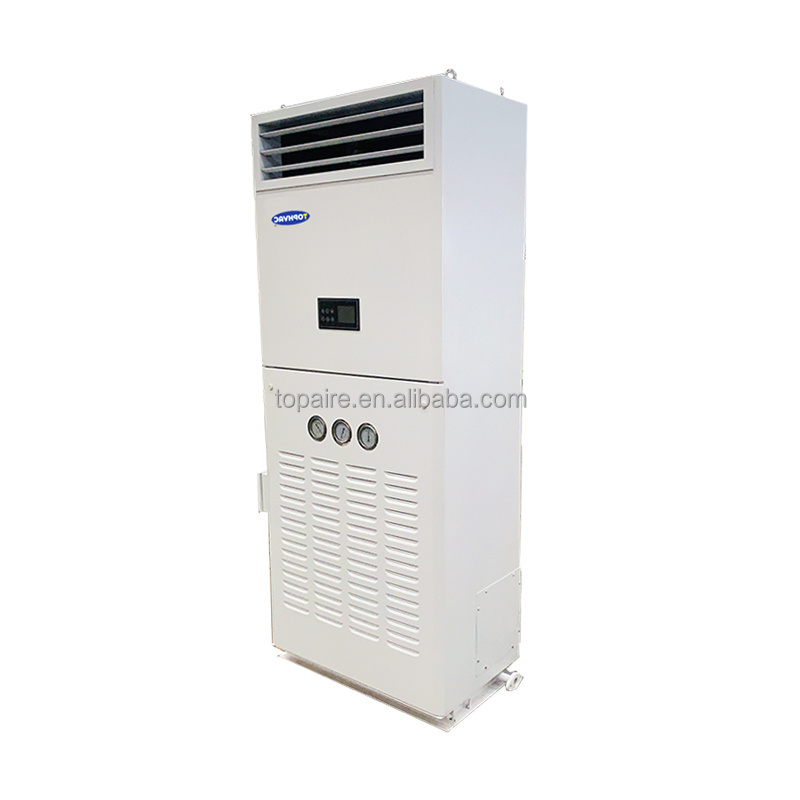

Marine Water Cooled Type packaged units
Marine Package Air Conditioners are in wide use to supply cooling or heating for separate spaces on board. It contains refrigerating compressor, marine shell and tube condense, ventilation fan, direct expansion cooling coil, heater, filter, expansion valve, electric solenoid valve and built-in control panel.
All components to be packed in unit with compact size, the advantages are steadiness of function, low noise level. The Unit is designed to use by connecting electric power and cooling water.
Product Description
Marine packaged units are self-contained air conditioning units with all components fully assembled as a compact unit, it operates either seawater cooled, fresh water cooled or other tailored made units to meet the customer’s requirement.
Marine packaged unit can be used for all kinds of small capacity air conditioning requirements. it is specifically suitable for area ’ s that can difficulty served by a central air handling units, like thruster room, secluded cabin, etc.
The casing is
made of galvanized sheet and
thermally insulated to prevent condensation and surface treatment by plastic spraying to resist corrosion. Plenum with adjustable grill and optional for fresh air intake as well.
Features
· Cooling capacities from 10.5 to 105kW
· Cooling coil for direct expansion or chiller water
· High efficiency centrifugal fan
· Hermetically sealed scroll or semi-seal reciprocating type compressor with low sound generation
· Cu/Ni shell and tube condenser for seawater, cast iron shell and Cu tube condenser for freshwater, Other material combinations and coatings are available on request.
· Standard refrigerant R404A or R407C, or other refrigerants are available on request.
· Air filter (EU-2) with optional for EU-4.
· Control panel with motor protection by thermal overload relay, temperature control and compressor control
· Specially designed 100% fresh air packaged unit for Galley with various capacities.
