Quick Details
-
Input interface:
-
HDMI*8; Audio In*8
-
Output interface:
-
LAN Port*2
-
Protocol:
-
SRT, HTTP, RTSP, RTMP/RTMPS, HLS, FLV, ON VIF, Multicast: UDP/RTP
-
Max Input Resolution:
-
3840*2160@30hz*8
-
Video encoding:
-
H.264
-
Audio encoding:
-
AAC-LC/EAAC/EAACPLUS/G711
-
Code Rate:
-
CBR/VBR 16Kbps-12Mbps adjustable
-
Subtitles:
-
English ,Pictures
-
Size:
-
W:485 mm *D :200mm *H :45 mm
-
Net Weight:
-
1.5kg
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Orivision
-
Model Number:
-
ZY-EH408
-
Input interface:
-
HDMI*8; Audio In*8
-
Output interface:
-
LAN Port*2
-
Protocol:
-
SRT, HTTP, RTSP, RTMP/RTMPS, HLS, FLV, ON VIF, Multicast: UDP/RTP
-
Max Input Resolution:
-
3840*2160@30hz*8
-
Video encoding:
-
H.264
-
Audio encoding:
-
AAC-LC/EAAC/EAACPLUS/G711
-
Code Rate:
-
CBR/VBR 16Kbps-12Mbps adjustable
-
Subtitles:
-
English ,Pictures
-
Size:
-
W:485 mm *D :200mm *H :45 mm
-
Net Weight:
-
1.5kg
Product Description

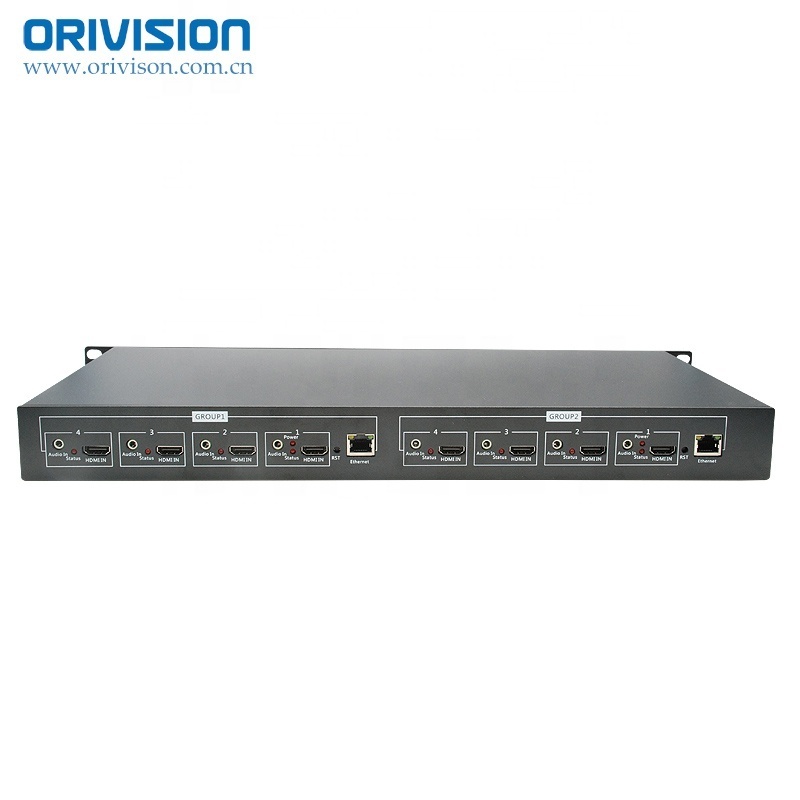

H.264 8CH HDMI Video Encoder-1U Rack
Support H.264/MPEG-4 encoding
Support 8XHDMI Input and audio input
Support up to 8channels 4K@30hz resolution input
Support HDMI1.4 and HDCP 1.4
1000M network interface uses full duplex mode, LAN and WAN transmission
Applied in Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting
OEM&ODM
Application Diagram
Product Paramenters
|
Input interface
|
|
8×HDMI 1.4
|
|
|||
|
Support resolution
|
|
3840*2160,1920*1080,1920*960,1680*1200,1600*900,1440*1050,
1440*900,1360*768,1280*720,1280*800,1280*768,1024*768, 1024*576,960*540,850*480,800*600,720*576,720*540,720*480, 720*404,704*576,640*480,640*360,480*270,Auto |
|
|||
|
Frame rate
|
|
5-60hz
|
|
|||
|
HDCP
|
|
Support HDCP 1.4
|
|
|||
|
Output interface
|
|
2×Ethernet port (RJ45),
|
|
|||
|
Video encoding
|
|
H.264/Baseline Profile/Main profile/High Profile
|
|
|||
|
Max bitrate
|
|
16kbps- 12Mbps
|
|
|||
|
Rate control
|
|
CBR/VBR
|
|
|||
|
Audio
|
|
|
|
|||
|
Input interface
|
|
8×External audio, HDMI built-in Audio
|
|
|||
|
Output interface
|
|
-
|
|
|||
|
Audio encoding
|
|
ACC, G711
|
|
|||
|
Audio Encoder type:
|
|
LCAAC,EAAC,EAACPLUS
|
|
|||
|
Bit-rate Option
|
|
48K,64K,96K,128K,160K,192K,256K
|
|
|||
|
Sampling Accuracy
|
|
24 Bit
|
|
|||
|
Audio Data-rate
|
|
64Kb/s to 384Kb/s
|
|
|||
|
Network
|
|
|
|
|||
|
RJ45
|
|
1000M Ethernet port
|
|
|||
|
Program streaming
|
|
SRT, HTTP, RTSP, RTMP/RTMPS, HLS, FLV, ONVIF, Multicast: UDP/RTP
|
|
|||
|
Control Panel
|
|
Web panel (Language is English), remote upgrade
|
|
|||
|
Firmware Update
|
|
Enable by uploading files to the dashboard
|
|
|||
|
General
|
|
|
|
|||
|
Dimension(W*L*H)
|
|
W:485 mm *D :200mm *H :45 mm
|
|
|||
|
Gross Weight
|
|
1.5kg
|
|
|||
|
Temperature
|
|
0 ~ 45℃（for working）,-20~60℃（for storing)
|
|
|||
|
Humidity
|
|
<90%, non-condensing
|
|
|||
|
Input Voltage
|
|
DC 220V/AC
|
|
|||
