Quick Details
-
Brand Name:
-
SAMFIBER
-
Model Number:
-
DJF-10A
-
Product name:
-
DJF-10A Geophysical Price Mid-Power IP & Resistivity Transmitter
-
Model:
-
DJF-10A
-
Maximum output voltage:
-
1200V
-
Rated output power:
-
10KW(1000V, 10A)
-
Dimension:
-
430*260*180mm
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SAMFIBER
-
Model Number:
-
DJF-10A
-
Product name:
-
DJF-10A Geophysical Price Mid-Power IP & Resistivity Transmitter
-
Model:
-
DJF-10A
-
Maximum output voltage:
-
1200V
-
Rated output power:
-
10KW(1000V, 10A)
-
Dimension:
-
430*260*180mm

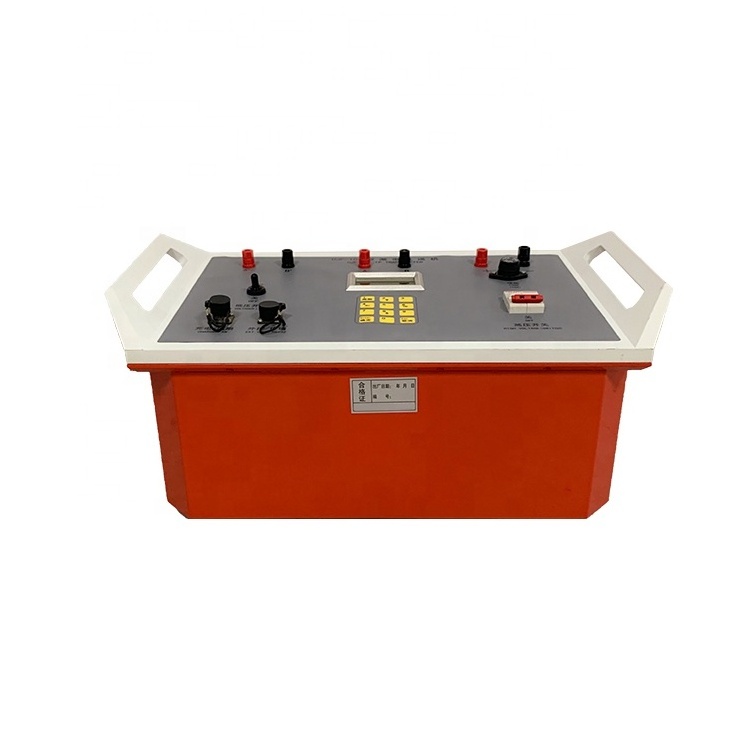

DJF-10A Big Power IP Resistivity Transmitter
Products Description
DJF-10A induced polarization transmitter,an induced polarization sending system composed of DJF-10A main set and DZ-10A commutation supply,is an automatic power supply device matched with DWJ-3B microcomputer induced polarization instrument.
Features
1.Duty ratio of 1:1with periods of 4" 、8“、16"、32”、64“.
2.An external controller where the power-on time and period is controlled by the DWJ-3B,which especially applies to IP Groundwater Prospecting,IO sounding,IP in near field sourer,IP oil finding,even in strong interference environment.
3.The high voltage power supply can be provided by the DC from DZ-10A(dummy load equipped with balancing generator),or by dry cell and storage cell in case of low power,which indicates a strong adaptability.
4.The main circuit works steadily and reliably by reason that it has adopted silicon controlled rectifier Commutation Bridge and DC switch without mechanic contacts
Technical Data
|
Time control Precision
|
0＜±0.01%（quartz crystal controller）
|
|
Rated output power
|
10KW（1000V,10A）
|
|
Maximum output voltage
|
1200V
|
|
Maximum output current
|
±10A（AB Voltage must＞200V）
|
|
Maximum output voltage
|
=＜150mA
|
|
Work temperature
|
-10℃-45℃
|
|
Additional function
|
Input voltage, output current measurement
|
|
Voltage indication accuracy
|
±0.2%±1word
|
|
Current indication accuracy
|
±0.2%±1word
|
|
Current memory interval
|
memory as period interval
|
|
power supply periods
|
√32“（input 0-996 by hand）√MIPI external control
|
|
High-capacity data memory
|
9000 groups current data (Include the year,month,day,hour,minute and second of the measurement time).It has ac dump protecting
function,can store the data for 25 years. |
|
Internal power consumption
|
√12V,150mA,√Power supply:12V, 3AH
√Rechargeable lithium battery |
|
Dimension
|
430*260*180mm
|
|
Weight
|
10.5KG
|
|
Insulation resistance
|
＞100MQ
|
