- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
EY-2306
-
Language:
-
English,Spanish,Korean,Turkish,Indonesian,Tha...
-
Identify mode:
-
FP,RF Card,Password and its combinations(5 kinds in all)
-
LCD display:
-
2.8" TFT LCD
-
Communication:
-
USB /TCPIP(10/100Mbps, option)
-
Fingerprint Sensor:
-
Optical Sensor (CEN931)
-
Log Capacity:
-
1000finger+1000card+1000pin(can Optional )
-
User log/ Management log:
-
120000/10000
-
Real-time event:
-
Send events to sever with UDP,TCPIP communication.
-
Feature:
-
fingerprint access control
Quick Details
-
Type:
-
Biometric Time Recording
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Eseye
-
Model Number:
-
EY-2306
-
Language:
-
English,Spanish,Korean,Turkish,Indonesian,Tha...
-
Identify mode:
-
FP,RF Card,Password and its combinations(5 kinds in all)
-
LCD display:
-
2.8" TFT LCD
-
Communication:
-
USB /TCPIP(10/100Mbps, option)
-
Fingerprint Sensor:
-
Optical Sensor (CEN931)
-
Log Capacity:
-
1000finger+1000card+1000pin(can Optional )
-
User log/ Management log:
-
120000/10000
-
Real-time event:
-
Send events to sever with UDP,TCPIP communication.
-
Feature:
-
fingerprint access control
Product Description

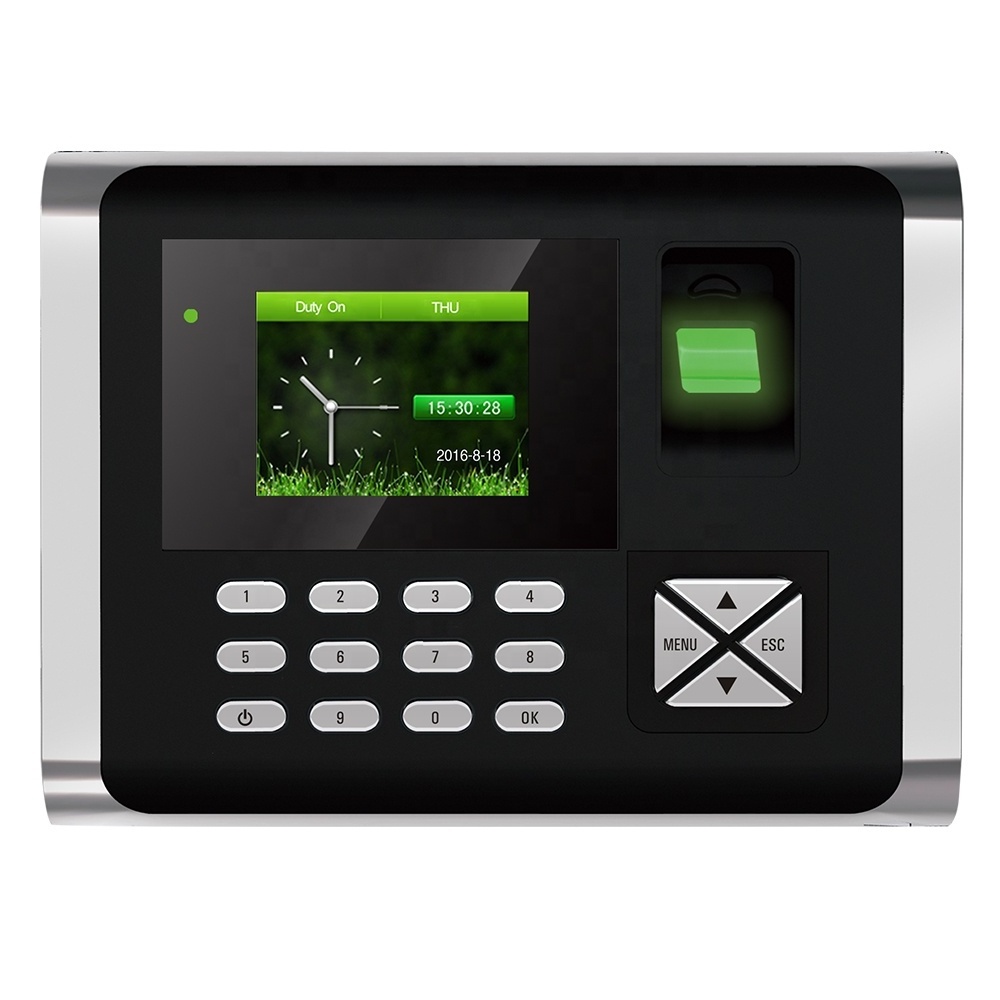

Eseye Low Price Of Brand New Fingerprint Attendance Device With Stable Function
| Item | Function | Spec |
| Hardware | CPU | 32bit CPU |
| Fingerprint Sensor | Optical Sensor (CEN931) | |
| USB Disk | yes | |
| RF card support | ID card, MIFARE card(wiegand interface) -optional | |
| LCD | 2.8” TFT LCD | |
| LED | 2(red,green) | |
| Keyboard | 16 keys(have back light) | |
| Communication interface | USB /TCPIP(10/100Mbps, option) | |
| Output ports | Wiegand26 input or output | |
| two Relay outputs(lock,alarm) | ||
| Finger Touch Sensor | yes | |
| Input ports | Wiegand26/34 input (can be used for RF card reader) | |
| Door sensor input | ||
| Tamper detect | ||
| Exit button | ||
| Voice output | Yes | |
| RTC | Yes | |
| Operating Voltage | DC 9V | |
| Humidity(RH) | 20% ~ 80% | |
| Temperature | -10℃ ~ 60℃ | |
| User capacity | 1000finger+1000card+1000pin(can Optional ) | |
| User log/ Management log | 120000/10000 | |
| Identify mode | FP,RF Card,Password and its combinations(5 kinds in all) | |
| Language | English,Vietnamese,Spanish,German,Dutch,Thai,Portuguese,Turksih,Farsi,Korean, Indonesian, Hebrew and so on. | |
| Access Control | Door / Time zone , Anti-pass, Duress alarm | |
| Time & Attendance | Attendance status (Duty On/Off,Overtime…) time zone | |
| Job code | Yes | |
| Bell | Yes | |
| Power Management | Auto power off,Sleep | |
| USB disk up/download(enroll data, log) | Yes | |
| Self test | Yes | |
| Attendance log search | Yes(User can search for his/her log data by means of identification) | |
| PC SDK | Yes(multi development language:VB.NET,VB6.0, C++, C#, Java,Delphi, ect SDK) | |
| DHCP | Yes | |
| Real-time event | Send events to sever with UDP,TCPIP communication. | |
| Fingerprint Algorithm | Engine Version | Smack Finger V3.0 |
| FAR/ FRR | 0.00001/ 0.1(%) | |
| Matching speed | <=0.8 s(In case of 1000 fingerprints enrollment) | |
| Allowable finger rotation | 360°(all direction) | |
| Intelligent adaptation function | Yes | |
| FP identification mode | 1:N, 1:1 |
