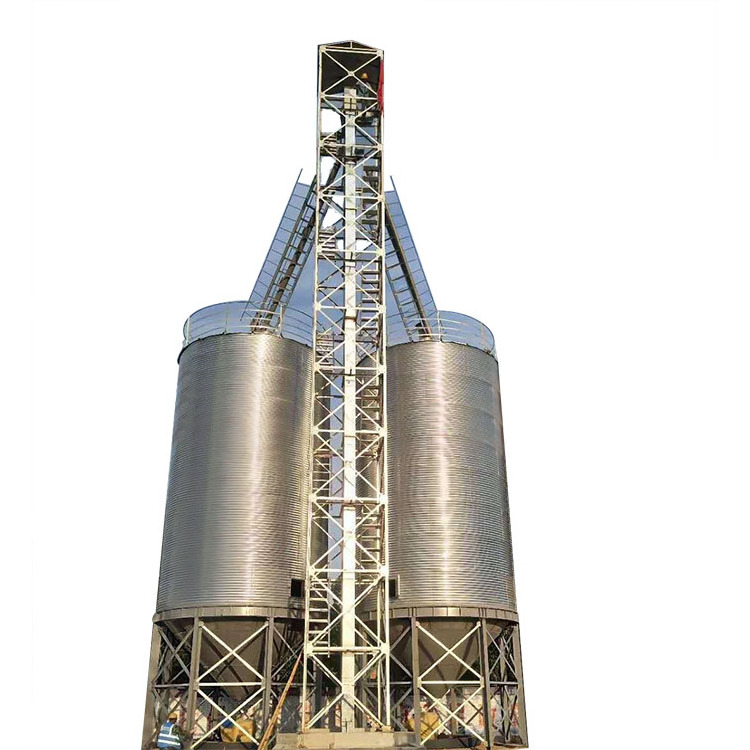

More available mini space wheat coffee bean rice husk soybean silo

Grain steel silos and the project

Yunshan Grain steel silos and the project including: all kinds of storage engineering technology (including lifting, transportation, magnetic suspension, dust removal, ventilation, temperature measurement, drying, fumigation and other supporting systems), civil engineering, electric control and other complete engineering design, manufacturing, installation, commissioning and personnel training one-stop turnkey project.

A full set of flow chart

The Integrated storage silos project is used in feed, port, rice, flour, grease, wine, grain  processing, cement, logistics distribution center, storage and other industries. The project includes grain harvesting, drying, storage and transportation to various processing enterprises, realizing the integration of drying, storage, packaging, transportation and processing.

Technical data O f YunShan Fabricated grain steel silos

Features O f YunShan Fabricated grain steel silos

1, Both hot dip galvanized coil steel plate and flat steel plate can be used, and electric galvanized steel plate can also be used, which is more convenient to take materials.

2,All parts and components are standard components, which are replaceable. In case of damage or corrosion, users can easily replace damaged parts and extend service life

3,It can be modified and dismantled, especially for the users who rent the site

4,It can realize the form of outer column, which is more favorable to the mobility of grain in the silos.

5,After the use of silica gel filler, the air tightness requirements can be achieved

6,Double layer insulation can be conveniently realized with little cost increase.

Structure introduction

1. Silo part: the straight cylinder is made of high-quality galvanized sheet in corrugated shape, which is prepared into standard hole and connected by ordinary and high-strength bolts. The thickness distribution of silo plate is designed according to the equal strength theory, so that the expansion tensile stress of silo plate is uniform. The vertical friction force is borne by the vertical stiffener distributed in the vertical direction of the silo. The cross-section shape is Z-shaped, and the screw hole is equipped with spherical anti-corrosion Aviation special waterproof mortar strip is added between the water gasket warehouse plates, and the warehouse door, internal and external ladder are provided for convenient maintenance and clearance..

2. Umbrella shaped framework is prepared on the top of silo: the tile plate is made of galvanized sheet, and the pressing strip and bolts are galvanized. The roof is equipped with natural ventilation window, manhole, ladder on the top of silo, safety net and other facilities.

3. As the main parts of silo and roof are galvanized sheet and galvanized parts, the steel warehouse is durable, long service life and easy to realize mechanized operation.
