Quick Details
-
Voltage:
-
220V/380 V or other require
-
Power:
-
6KW
-
Dimension(L*W*H):
-
2520*1080*1800mm.
-
Weight:
-
1800 kg
-
Suitable Paper Weight:
-
140-350gsm
-
Rated Productivity:
-
100-110 pcs/min
-
GW/NW:
-
1800KGS/1700KGS
-
Package Size:
-
2520*1080*1800mm
-
Cup Side Welding:
-
Copper Heater or Ultrasonic heater
-
Paper Cup Size:
-
2 ~16 OZ (50ml~330ml Mould exchangeable)
-
Raw Material:
-
One or Two side PE coated Paper
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Production Capacity:
-
100-110 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGYUAN
-
Voltage:
-
220V/380 V or other require
-
Power:
-
6KW
-
Dimension(L*W*H):
-
2520*1080*1800mm.
-
Weight:
-
1800 kg
-
Suitable Paper Weight:
-
140-350gsm
-
Rated Productivity:
-
100-110 pcs/min
-
GW/NW:
-
1800KGS/1700KGS
-
Package Size:
-
2520*1080*1800mm
-
Cup Side Welding:
-
Copper Heater or Ultrasonic heater
-
Paper Cup Size:
-
2 ~16 OZ (50ml~330ml Mould exchangeable)
-
Raw Material:
-
One or Two side PE coated Paper
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Machine introduction
|
Model
|

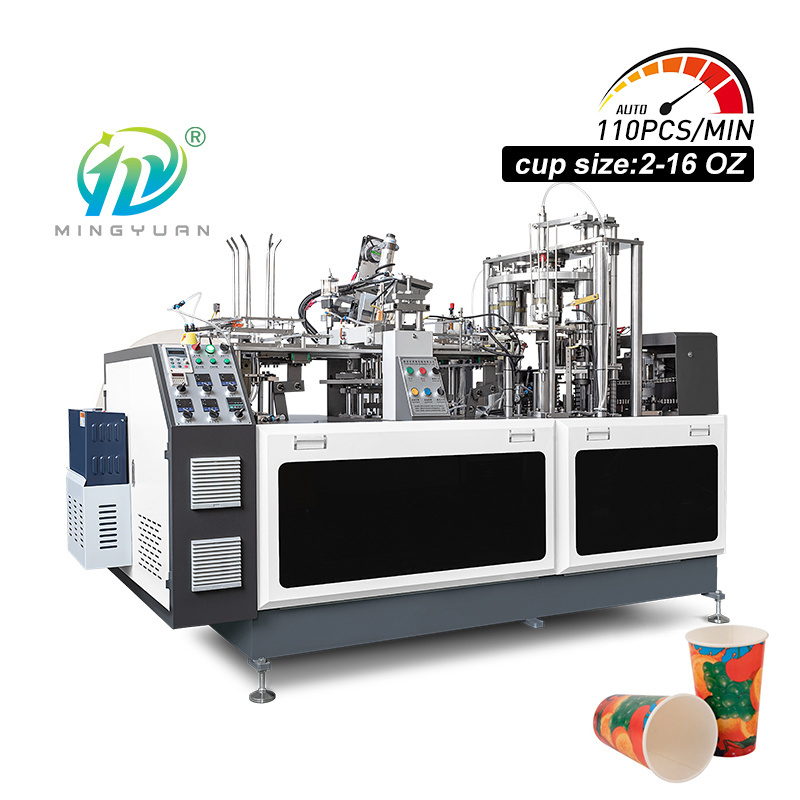

High Speed Intelligence Model Paper Cup Machine MYC-OCM12
|
|
|
|
||||
|
Cup Side Welding
|
Ultrasonic heater
|
|
Ultrasonic heater
|
|
||||
|
Paper Cup Size
|
1.5 ~16 0Z (Mould exchangeable, Max Cup Height:136mm , Max Bottom width :80mm
|
|
|
|
||||
|
Rated Speed
|
80~110pcs/min ( Speed affected by cup size, paper quality & thickness)
|
|
|
|
||||
|
Raw Material
|
One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)
|
|
|
|
||||
|
Suitable paperweight
|
140-350gsm
|
|
140-350gsm
|
|
||||
|
Power Source
|
50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement
|
|
|
|
||||
|
Total Power
|
6KW
|
|
8.5 KW
|
|
||||
|
Total Weight
|
GW/NW: 2000KG/1900KG
|
|
GW/NW: 1900KG/1750KG
|
|
||||
|
Pack Size(L*W*H)
|
2350*1110*2000mm(Machine size)1160*1200*2100mm(Collecting table size)
|
|
2350*1110*2000mm(Machine size) 1160"12002100mm(Collecting table size)
|
|
||||
|
Working Air Source
|
Air pressure:0.4Mpa:
Air Out-put:0.6myminute
Need to buy Air Compressor(by user) |
|
|
|
||||
|
Cup Bottom Heating
|
1side PE paper by heater knurling.2side PE paper by cool device (circle water) knurling
|
|
|
|
||||
|
Cup Bottom Knurling
|
Heater Knurling (if use single PE coated paper)
|
|
|
|
||||
|
OEM ( Show Client Company Name in Machine Panel ) is welcome in our factory
|
|
|
|
|
||||
Cup Size Range
the full set mould or half set mould can be changed to make different sizes of cups in one machine.
Selling Point of a Product
Vaccum Suction Generator
Prevent wet air with water from entering solenoid valve, longer service life more stable and better.
Honeywell Relay
Best imported US brand relay ,best quality and longer service life
Cover Platen Board
Longer service life More stable and better.
Metal Rod Accessories Thickness Upgrade
New design is durable better qualityis not easy to be broken in long time running.
Video Cloud Exploration Factory
Consult us and we will take you to our factory to see various models of paper cup machines.
1 to 1 service for you
, according to
your needs to recommend the best machine for you.
We are the real manufacturer, to provide you with quality service and solutions.
（>>>Click to contact<<<)
Company Strength
Customer Cases
We have customers all over the wonld, according to your needs we can provide you with similar cases as a reference, as well as for you to recommend and design the most popular paper cup size in your location.
Other aspects
Raw material Solutions
If you also need raw materials, we can recommend our cooperated paper raw material suppliers with good quality.
Paper Cup Raw Material
Paper Cup Fan
FAQ
Q1. Are you trading company or manufacturer?
A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product machinery in China.
Q2. How will the machine be repaired if there are faults, and what is the warranty?
A:Our engineer team will send the operation video to guide you to solve the problem .if the spare parts is broken in the warranty period, we will send you the new replacement parts for free
Q3. What is the delivery time after the order ?
A:We have only half finished machine (no mould) in stock.The mould design is customized as each customer requirement The mould production costs 20 days,10 days for the installation.The delivery time is 30-35 days after the deposit payment .
A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product machinery in China.
Q2. How will the machine be repaired if there are faults, and what is the warranty?
A:Our engineer team will send the operation video to guide you to solve the problem .if the spare parts is broken in the warranty period, we will send you the new replacement parts for free
Q3. What is the delivery time after the order ?
A:We have only half finished machine (no mould) in stock.The mould design is customized as each customer requirement The mould production costs 20 days,10 days for the installation.The delivery time is 30-35 days after the deposit payment .
Q4.How can I install the machine and get training services in my country?
A:The machine will be finished installation and tested running perfectly before the delivery . You will get the complete machine which is finished installation. We will provide the full operation and training Videos to guide you to run the machine Anyone can install the machine and operate it easily.
Q5. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
A:The machine will be finished installation and tested running perfectly before the delivery . You will get the complete machine which is finished installation. We will provide the full operation and training Videos to guide you to run the machine Anyone can install the machine and operate it easily.
Q5. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
