Brushess gear motor from 250w to 750w.Front or rear drive available.
High power,great climbing performance.
The top speed can up to 50km/h.fast and powerful motor.
Can laced 20x4.0inch or 26x4.0inch rim.
Single-wall or double-wall aluminium alloy rim.
Colorful rim available too.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HALO Power OEM ODM
-
Model Number:
-
HALO-104C2
-
Bike Throttle:
-
Thumb/Twist
-
Product Name:
-
fat ebike conversion kit
-
Application:
-
Electric Bicycle Tricycle Trike
-
Weight:
-
9.5
-
Motor type:
-
Dc Brushless Gear Motor
-
Rated Voltage:
-
24/36/48/60v
-
OLD(mm):
-
170/190 mm
-
Rated Efficiency(%):
-
≥82
-
Feature:
-
high torque better climbing
-
Rated Speed:
-
25-55km/h
-
Power:
-
250W-750W
Quick Details
-
Battery Capacity:
-
13.4 Ah
-
Wheel Size:
-
20-28 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HALO Power OEM ODM
-
Model Number:
-
HALO-104C2
-
Bike Throttle:
-
Thumb/Twist
-
Product Name:
-
fat ebike conversion kit
-
Application:
-
Electric Bicycle Tricycle Trike
-
Weight:
-
9.5
-
Motor type:
-
Dc Brushless Gear Motor
-
Rated Voltage:
-
24/36/48/60v
-
OLD(mm):
-
170/190 mm
-
Rated Efficiency(%):
-
≥82
-
Feature:
-
high torque better climbing
-
Rated Speed:
-
25-55km/h
-
Power:
-
250W-750W
Products Description
Specification
|
1
|
Motor
|
Motor Model
|
HALO-104C2
|
|
|
|
2
|
|
Motor Type
|
BLDC Gear Motor
|
|
|
|
3
|
|
Position
|
Rear
|
|
|
|
4
|
|
Rated Voltage (V)
|
24/36/48/60v
|
|
|
|
5
|
|
Rated Power (W)
|
250W-750W
|
|
|
|
6
|
|
Rated Speed(km/h)
|
25-55
|
|
|
|
7
|
|
Temperature (℃)
|
-20~45
|
|
|
|
8
|
|
Rated Efficiency(%)
|
≥82
|
|
|
|
9
|
|
Hall Sensor
|
Optional
|
|
|
|
10
|
|
Surface Color
|
Black/Shining/Silver
|
|
|
|
11
|
|
Reduction Ratio
|
1:5
|
|
|
|
12
|
|
Suitable wheel size (inch)
|
20-28
|
|
|
|
13
|
|
Net Weight (kg)
|
4.0-4.5
|
|
|
|
14
|
|
OLD (mm)
|
170/190 mm
|
|
|
|
15
|
|
Cable location
|
Shaft Center Right
|
|
|
|
16
|
|
Brake Type
|
V brake/Disc brake
|
|
|
|
17
|
|
Spoke Specification
|
36H*10g/12g/13g
|
|
|
|
18
|
|
Noise (db)
|
<55db
|
|
|
|
19
|
Controller
|
15A-26A (250w-750w)
|
Standard / quick release waterproof plug
|
|
|
|
20
|
Controller box
|
Case / Bag
|
Option
|
|
|
|
21
|
Display
|
LED / LCD / TFT colorful LCD
|
Option
|
|
|
|
22
|
Throttle
|
Thumb / Half twist /Full twist
|
Option
|
|
|
|
23
|
Brake
|
Normal Brake lever /Hydraulic / brake sensor
|
Option
|
|
|
|
24
|
Pedal assist
|
8 magnets /10 magnets / 12 magnets
|
Option
|
|
|
|
25
|
Battery
|
36V/48V (10Ah/13Ah/16Ah/17Ah/20Ah etc)
|
Option
|
|
|
|
26
|
Charger
|
42V/54.6V (2A,3A,4A,5A）
|
Option
|
|
|
Recommend Products
Details Images

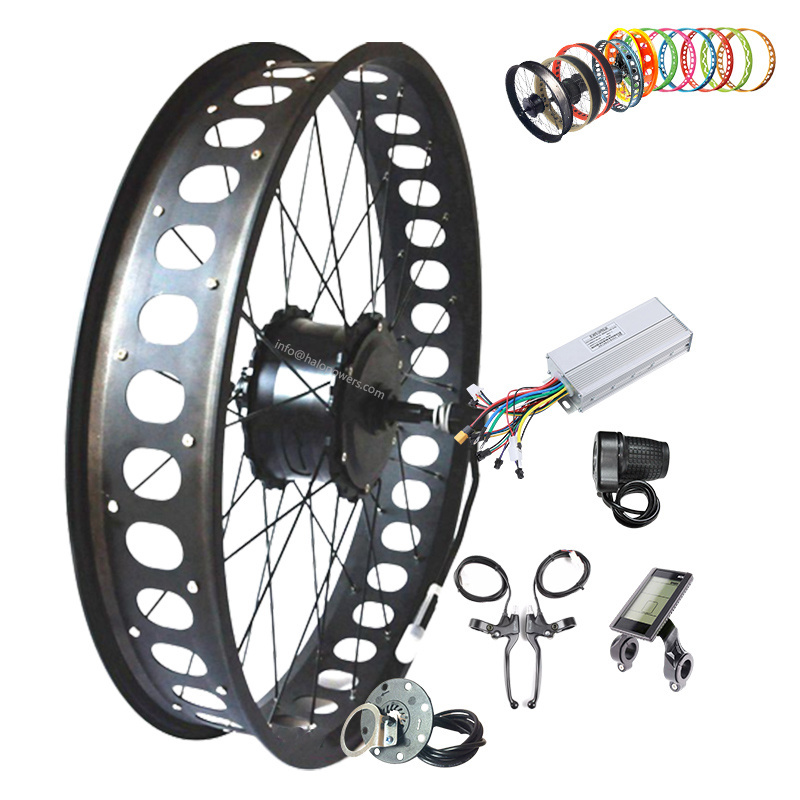

Motor wheel
Option for controller
The integrated controller which just available for the motor ≤500w.
Option for brake
There are main three kind of brakes can be choice.
If you want to keep to use your original brake,then we will offer our brake sensor to you(will send the use manual of it)
Opption for display
LED/LCD/Colorful LCD display.The three kind of displays from cheaper,middle cost and high cost level(from simple to
multi-function) for you to choice.Each kind of display also have different models and looking.We would like to offer the most
popular and stable model to you.
multi-function) for you to choice.Each kind of display also have different models and looking.We would like to offer the most
popular and stable model to you.
Option for throttle
Three kind of throttles can meet your different needs.And It's available for the throttle which been integrated the display together as well as the key on throttle.
Option for PAS
Four kind of pedal assist sensors.8 magnets/10 magnets/12 magnets whole parts /12 magnets two half pads (it's easier to install on
your pedal,don't need to take off the crank.and cthe sensor can be installed
directly on the ebike axle.
your pedal,don't need to take off the crank.and cthe sensor can be installed
directly on the ebike axle.
Option for throttle
down tube battery/Rear rack battery/customize size for you. with smart BMS.original grade A battery cell. can lock the battery on
the bike frame with a key,battery level indicator available for down tube and rear rack type. Press the indicator to show the
battery level. Or rear rack battery,or customize the size and capacity based on your needs.
the bike frame with a key,battery level indicator available for down tube and rear rack type. Press the indicator to show the
battery level. Or rear rack battery,or customize the size and capacity based on your needs.
