Quick Details
-
Furnace Structure:
-
double layer
-
Continuous Temperature:
-
1000C
-
Max.temperature:
-
1100C
-
Temperature accuracy:
-
+/-1C
-
Size:
-
customized
-
Warranty:
-
one year
-
Certificate:
-
CE
Quick Details
-
Brand Name:
-
Kejia
-
Model Number:
-
OTF-1200X Crystal growth furnace
-
Place of Origin:
-
Henan, China
-
Furnace Structure:
-
double layer
-
Continuous Temperature:
-
1000C
-
Max.temperature:
-
1100C
-
Temperature accuracy:
-
+/-1C
-
Size:
-
customized
-
Warranty:
-
one year
-
Certificate:
-
CE

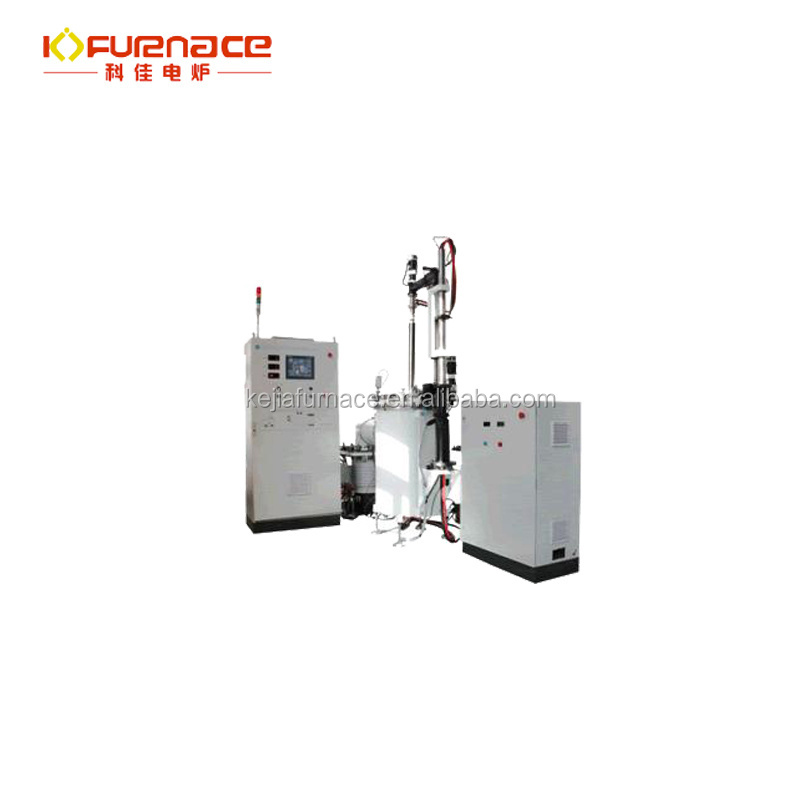

Kejia Single Crystal Growth Furnace
Introduction of CZ crystal grower system Single Crystal Growth Furnace
EQ-SKJ-50CZ is a high quality Cubic Zirconia Crystal Growth Furnace for material research laboratories.
This furnace has been proven to be excellent for pulling various oxide crystals with melting point up to 2100 o C,
including Sapphire, GGG, YAG, LaAlO3, Si, and Ge, etc. with diameter up to 3". MTI provides technical training
on installing and operating this furance to customers before shipping. MTI also provides online video technical
support worldwide.
Technical parameter of CZ crystal grower system Single Crystal Growth Furnace
Working Voltage |
240V AC, 0.2-29 kHz, Three Phases |
Working Current |
100A |
Max. Power Consumption |
50 KW |
Melting Temperature |
Max: 2100°C (3812°F) Accuracy: < +/- 0.2°C by Euro-thermo temperature controller |
Max. Vacuum Level |
10 -3 torr by mechanical pump (included) 10 -5 torr by diffusion pump (optional) |
Vacuum Chamber Size
|
500mm(Dia.) x 700mm(H) |
Water Cooling |
Water flows through chamber jacket and crystal seed rod Water Pressure: 0.13 - 0.18 MPa Water Flowrate: 60 L/minute |
Controller |
Electronic operation unit for controls of pulling, rotating, temperature |
Puller
|
Driven by constant torque DC motors Pulling Rate: 0.1-20mm/h Max. Seed Rod Travel Distance: 400mm Rotating Rate: 0-40 RPM |
Crucible |
Crucible Rod Raising Speed: Manual Crucible Rod Max. Travel Distance: 100mm Optional: Iridium Crucible and Refractory components are available upon request at extra cost. |
Product Dimensions |
Crystal Growing Controller: 880mm(L) x 1250mm(W) x 2850mm(H) Control unit: 680mm(L) x 540mm(W) x 1700mm(H) RF Power supply: 800(L) x 500mm(W) x 1500mm(H) |
Application of Crystal Growth Furnace
Zhengzhou Kejia Furnace Co., Ltd. is one high-tech enterprises specialized in development, production and sales of heating treatment
product. Our products cover muffle furnace, tube furnace, vacuum furnace, atmosphere
furnace, CVD system, dental furnace, bottom lift furnace, , track furnace and others, which
is widely used in metallurgy, vacuum brazing, sintering ceramics, battery materials dry, shiny
metal processing, parts annealing, science and many other different fields.
