Quick Details
-
Model Number:
-
TF005
-
Product Name:
-
Wall panel mould
-
Material:
-
Steel
-
Mould material:
-
3Cr17
-
Design software:
-
CAD
-
Surface treatment:
-
Polishing
-
Cavity:
-
Single Cavity\ Multiple Cavity
-
Size:
-
Customized
-
Quality:
-
High level
-
Mould Life:
-
5 years
-
Application:
-
Household Product Mold
Quick Details
-
Shaping Mode:
-
Extrusion Mould
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
TongFeng
-
Model Number:
-
TF005
-
Product Name:
-
Wall panel mould
-
Material:
-
Steel
-
Mould material:
-
3Cr17
-
Design software:
-
CAD
-
Surface treatment:
-
Polishing
-
Cavity:
-
Single Cavity\ Multiple Cavity
-
Size:
-
Customized
-
Quality:
-
High level
-
Mould Life:
-
5 years
-
Application:
-
Household Product Mold
3D WPC Foam Plastic Interior Wall Forming Panel PVC Plastic Steel Wall Panel Mold
Products Description
Die head
Adopt detachable positioning device.
Convenient disassembly and assembly for precise material flow control.
Hidden heating design within stable extrusion.
Increased surface brightness of the product with special air pressure hole balance.
Reduced scrap rate.
Finalize module
Automatically adjust positioning keys.
Dimensionally accurate "tapered shaping sleeve design".
Increase production speed Independent vacuum at the inlet.
Well-formed curvature adjustment device to ensure straight line.
Water tank
Dual vacuum system.
Promote the combined design of molding flow and spray.
Rapid cooling self-adjustable water tank plate.
Simple debugging stainless steel frame system.
Prevent damage with special water distribution and cooling balance.

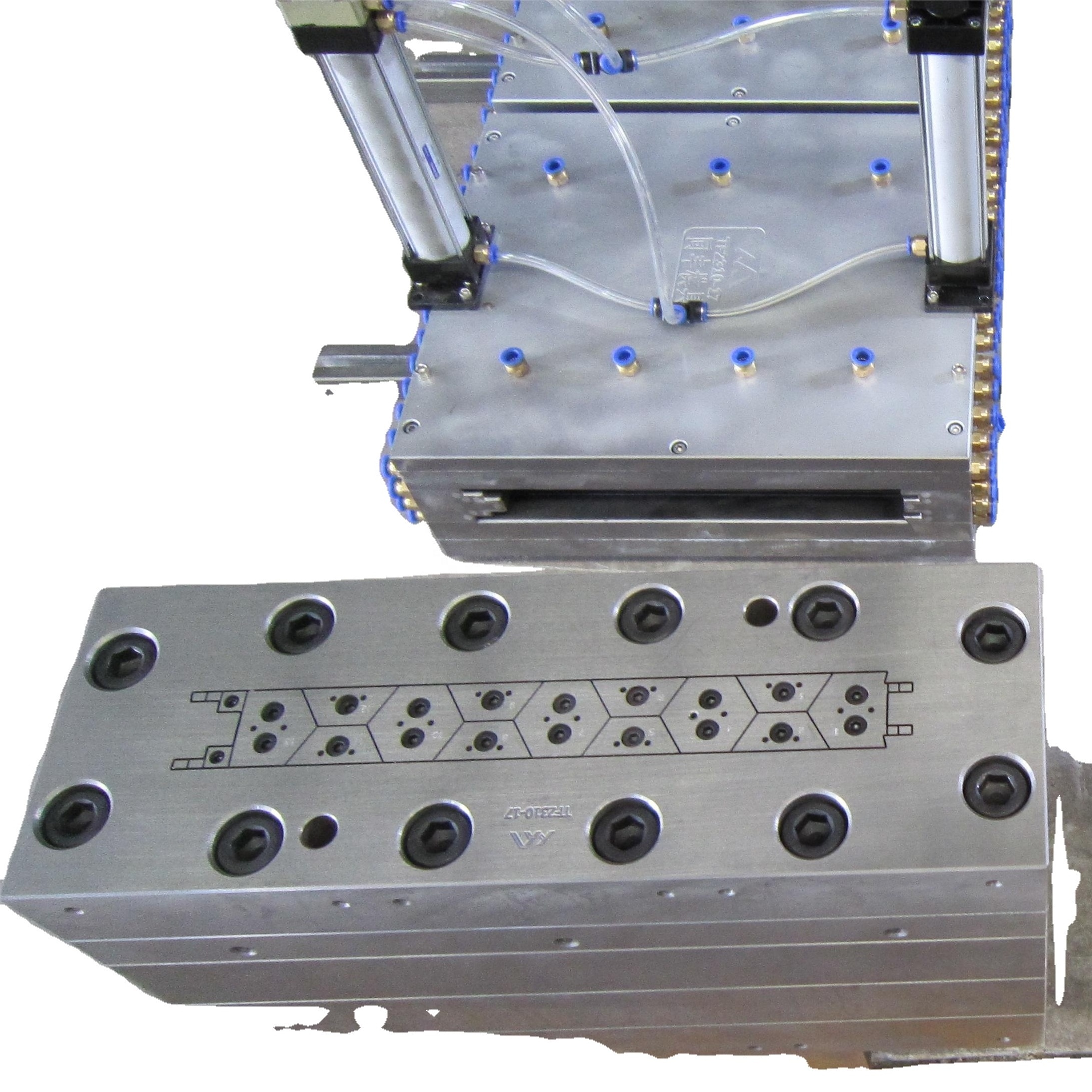

Partial extrusion mold display
Display of various extrusion products
Specification
|
Name
|
3D WPC Foam Plastic Interior Wall Forming Panel PVC Plastic Steel Wall Panel Mold
|
|
Mold specification:
|
Mold length up to 1500MM
|
|
Product materials:
|
Suitable for all metal and non-metal materials suitable for extrusion materials
|
|
Thickness:
|
0.05mm-5.0mm
|
|
Mold starting time:
|
7-30 Working days
|
|
Mold accuracy:
|
0.02mm
|
|
Mould life:
|
More than 10000000 times
|
|
Above process types:
|
Washing, grinding, drilling, fast walking wire, slow walking wire, computer gong, spark machine
|
|
Mold steel:
|
3CR17
|
|
Advantages:
|
Mold high precision, extrusion speed, save labor and material costs
|
|
Application:
|
Suitable for all extrusion industries
|
|
Certification:
|
ISO9001 & IATF16949;
|
|
Warm tips:
|
All products of the company support non - standard customization, a variety of material specifications optional
|
