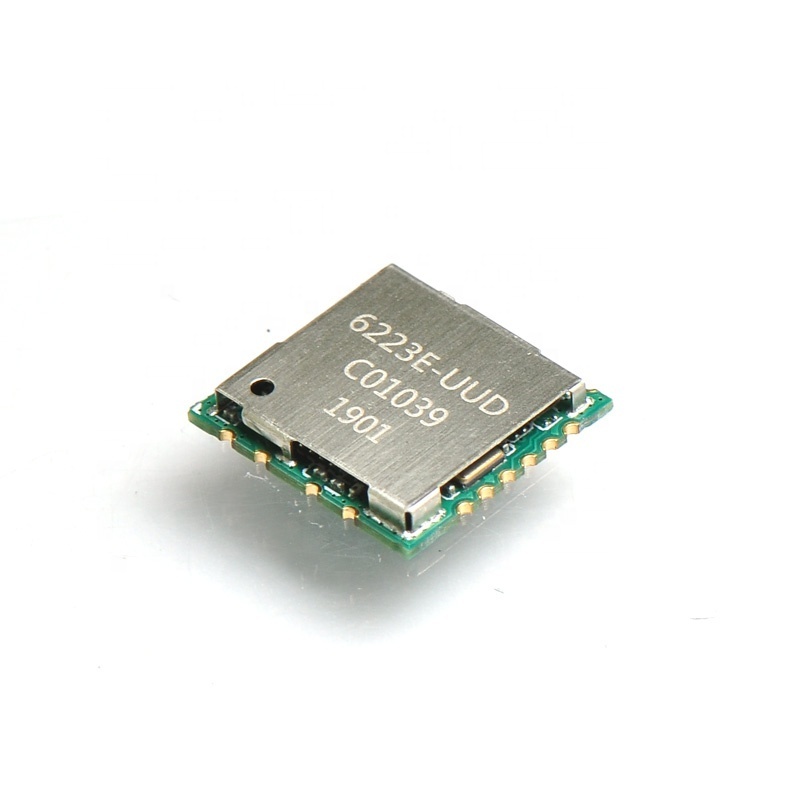

2.4G Realtek WiFi Module RTL8723DU Embedded USB WiFi Chip For Wireless Video Sender

2.4G Realtek WiFi Module RTL8723DU Embedded USB WiFi Chip For Wireless Video Sender

FOB Reference Price: Get Latest Price

≥5 Pieces

US $3

≥1001 Pieces

US $2.8

≥5001 Pieces

US $2.5

≥10001 Pieces

US $2.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Country of Origin:: China

Brand:: OFLYCOMM

Product Name:: Realtek WiFi Module

WiFi Standard:: 802.11b/g/n

BT Protocol:: Ble4.2

Operating Voltage:: 3.3±10% Vdc I/O supply voltage

Dimension:: L12.2*W13*H1.9mm

Main Chipset:: RTL8723DU

Date Rates:: 150Mbps

Antenna:: External Antenna

Operating Frequency:: 2.4Ghz

Quick Details

Model Number:: 6223E-UUD-W3

Chipset:: RTL8723DU

Application:: Tablet/IPTV/OTT/IPC/Speaker/Printer/POS/Projector

Country of Origin:: China

Brand:: OFLYCOMM

Product Name:: Realtek WiFi Module

WiFi Standard:: 802.11b/g/n

BT Protocol:: Ble4.2

Operating Voltage:: 3.3±10% Vdc I/O supply voltage

Dimension:: L12.2*W13*H1.9mm

Main Chipset:: RTL8723DU

Date Rates:: 150Mbps

Antenna:: External Antenna

Operating Frequency:: 2.4Ghz

Product Description

2.4G Realtek WiFi Module RTL8723DU Embedded USB WiFi Chip For Wireless Video Sender

It is an embedded wifi module supplied by 3.3V voltage with both Wi-Fi and BT4.2
It is based on Realtek RTL8723DU chipset, with USB interface for WiFi and Bluetooth
It is contains 2.4GHz WLAN IEEE 802.11 b/g/n MAC/Baseband and Bluetooth 4.2(Supportable with BLE)
It is packaged in an small form factor that facilitates integration into size- and power-sensitive applications.

Characterisitic

WiFi 802.11b/g/n	Support sophisticated WiFi/BT coexistence mechainism to enhance collection performance
Bluetooth V4.2 specification(Dual Mode)	Support Bluetooth adaptive power management mechainism
USB for WiFi and Bluetooth	External antenna and IPEX connector
Full speed Bluetooth Piconet and Scatternet Supported	Enterprise level security -WPA/WPA2 certification for WiFi
1T1R supporting 150Mbps Bandwidth	RoHS,REACH

Spec

1.Operating Frequency: 2.400～2.4835GHz
2.Modulation: 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
3.PHY Data Rate: 802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802.11n: up to 150Mbps
4.Transmit Output Power: 802.11b@11Mbps 16±1.5dBm
802.11g@54Mbps 14±1.5dBm
802.11n@65Mbps 13±1.5dBm (MCS 7_HT20) 13±1.5dBm (MCS 7_HT40)
5.Operating Channel: 11(Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
6.Media Access Control: CSMA/CA with ACK
7.Network: Ad-hoc mode (Peer-to-Peer )/Infrastructure mode/Software AP/Wi-Fi Direct
8.Security: WPA, WPA-PSK, WPA2, WPA2-PSK,WEP 64bit & 128bit, IEEE 802.11x, IEEE 802.11i
9.OS Supported: Android /Linux/ Win CE /iOS /XP/WIN7

Applications

Pos Printer/WiFi Bluetooth Speaker/Tablet PC/DVR

Note

Please contact us before you place the order that we can make sure this module can reach your requirement and then share with youthe driver. The follow up is up to the process of your project and exact problems during the testing.
