High-speed silent cooling fan,
high air volume.
Equipped with overheating
intelligent protection system.
- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Efficiency(lm/w):
-
/
-
Color Rendering Index(Ra):
-
/
-
Lifespan (hours):
-
2000
-
Working Time (hours):
-
2000
-
Product Weight（kg）:
-
16
-
Input Voltage(V):
-
AC100-240V 50/60Hz
-
Lamp Luminous Flux(lm):
-
4268.5
-
CRI (Ra>):
-
65.9
-
Working Temperature(℃):
-
0 - 100
-
Working Lifetime(Hour):
-
2000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Big Dipper
-
Emitting Color:
-
14+Blank
-
Product name:
-
Beam stage light 7R 230 Watt sharpy beam DJ lighting equipment
-
Mode:
-
Auto/Sound/ DMX/Master-Slave
-
Product size:
-
381.8*314*535mm
-
Channel:
-
16/20
-
Movement angles:
-
X axis:540° Y axis:270°
-
N.W./G.W.:
-
16/17.5KGS
-
Parrallel beam angle:
-
0-4.5 Degree
-
Prism:
-
8 Prism
-
Dimmer:
-
0-100% Mechanical Dimmer
-
Color wheel:
-
14+1
Quick Details
-
Color Temperature(CCT):
-
7992
-
Type:
-
Beam Lights
-
Application:
-
STAGE LIGHTING
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Efficiency(lm/w):
-
/
-
Color Rendering Index(Ra):
-
/
-
Lifespan (hours):
-
2000
-
Working Time (hours):
-
2000
-
Product Weight（kg）:
-
16
-
Input Voltage(V):
-
AC100-240V 50/60Hz
-
Lamp Luminous Flux(lm):
-
4268.5
-
CRI (Ra>):
-
65.9
-
Working Temperature(℃):
-
0 - 100
-
Working Lifetime(Hour):
-
2000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Big Dipper
-
Emitting Color:
-
14+Blank
-
Product name:
-
Beam stage light 7R 230 Watt sharpy beam DJ lighting equipment
-
Mode:
-
Auto/Sound/ DMX/Master-Slave
-
Product size:
-
381.8*314*535mm
-
Channel:
-
16/20
-
Movement angles:
-
X axis:540° Y axis:270°
-
N.W./G.W.:
-
16/17.5KGS
-
Parrallel beam angle:
-
0-4.5 Degree
-
Prism:
-
8 Prism
-
Dimmer:
-
0-100% Mechanical Dimmer
-
Color wheel:
-
14+1
Products Description

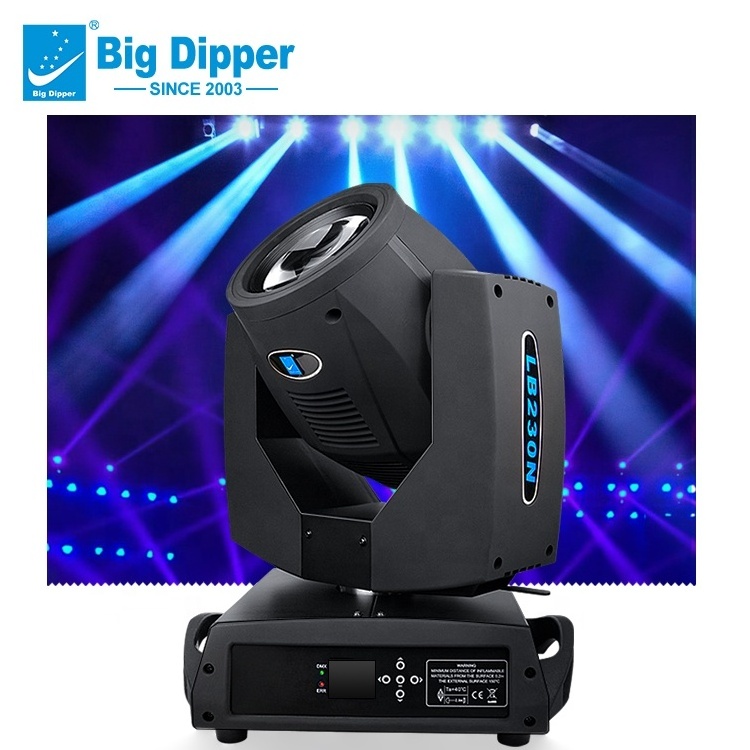

Model:LB230N
230W Moving head beam light
Movement Angle
——————————
Operating angle: pan 540° tilt 270°
X-axis positioning lock
Y-axis positioning lock
——————————
Optical zoom,clear pattern.
Power system
——————————
AC100-240V 50/60Hz
Split power supply,
strong power, fast speed.
Product stable nice, safety strongly.
——————————
Hd digital display screen;
Touch+ key control;
More intelligence, more convenient.
Simple and easy to install
——————————
Simplified accessories,
no tedious installation steps,can
save a lot of time spent on installation.
——————————
Energy saving,
strong controllability,
Low noise and vibration.
|
Product parameters
|
Full color animation laser light SD10000+RGB
|
|
|
|
Model : LB230N
|
Luminance Flux : 5078 lm
|
|
|
|
Size : 381.8*314*535mm
|
Color : 14 color + blank color
|
|
|
|
Packing : 1pcs
|
Gobo : 17 fixed gobo + blank gobo
|
|
|
|
N.W / G.W: About 16kg / 17.5kg
|
Channel : 16CH/20CH
|
|
|
|
Power Supply : AC100-240V 50/60Hz
|
10m illumination : 122000lux
|
|
|
|
Rated Power : 400W
|
Dimmer : 0~100% Mechanical Dimmer
|
|
|
|
Movement Angle : pan:540° Tilt : 270°
|
Color Temperature : 7820K
|
|
|
|
Beam Angle : 4.5°
|
Lifespan : 2000 Hours
|
|
|
|
Control Model : Sound / Auto / DMX512 / Master-slave
|
|
|
|
|
Power supply parameters
|
|
|
|
|||
|
Input voltage
|
Input current
|
Input power
|
Power factor
|
|||
|
100V / 60Hz
|
2.94
|
295
|
0.992
|
|||
|
110V / 60Hz
|
2.655
|
292.2
|
0.991
|
|||
|
120V / 60Hz
|
2.41
|
290
|
0.990
|
|||
|
220V / 50Hz
|
1.305
|
281.7
|
0.983
|
|||
|
230V / 50Hz
|
1.25
|
281
|
0.983
|
|||
|
240V / 50Hz
|
1.201
|
280
|
0.984
|
|||
|
Lamp high&low temperature testing
|
|
|
||
|
/
|
Ambient temperature
|
|
||
|
|
-25℃
|
+40℃
|
||
|
Whole machine power
|
199.5W
|
199.5W
|
||
|
Light flux
|
5083lm
|
5083lm
|
||
|
Color temperature
|
23950K
|
23950K
|
||
|
Color rendering index
|
89.5Ra
|
89.5Ra
|
||
|
Waves length
|
483.8nm
|
483.8nm
|
||
Ordinary cardboard box
Built-in foam protection module
Size : 430*430*540mm
Packing quantity : 1pcs
N.W. :16kg / G.W. :17.5kg
waterproof aviation box
Size : 739*460*700mm
Packing quantity : 2pcs
About Us
FAQ
1.Are you factory?
A1. Yes, we are factory, welcome to visit us in Shenzhen City, Guangdong province.
2. Do the lights have Minimum Order Quantity asked?
A3. In our standard package, we don't have MOQ asked, any quantities are acceptable.
3. Do you provide the Warranty ? How about the after sales service ?
A3. Big Dipper always specialize in stage lighting products & Solutions with best price, and we believe in our products, 12 months guarantee and provide friendly, easy-to-reach support.
A1. Yes, we are factory, welcome to visit us in Shenzhen City, Guangdong province.
2. Do the lights have Minimum Order Quantity asked?
A3. In our standard package, we don't have MOQ asked, any quantities are acceptable.
3. Do you provide the Warranty ? How about the after sales service ?
A3. Big Dipper always specialize in stage lighting products & Solutions with best price, and we believe in our products, 12 months guarantee and provide friendly, easy-to-reach support.
4.
What's the payment terms?
A4. T/T,Western union, or Paypal and ect.(30% deposit,balance before shipping)
5.
How long would the order be shipped?
A5.
Our products have in stock, small batch orders usually ship to you within 3-5 days, large batch orders usually take 15-20 days to produce.
