Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
- Product Details
- {{item.text}}

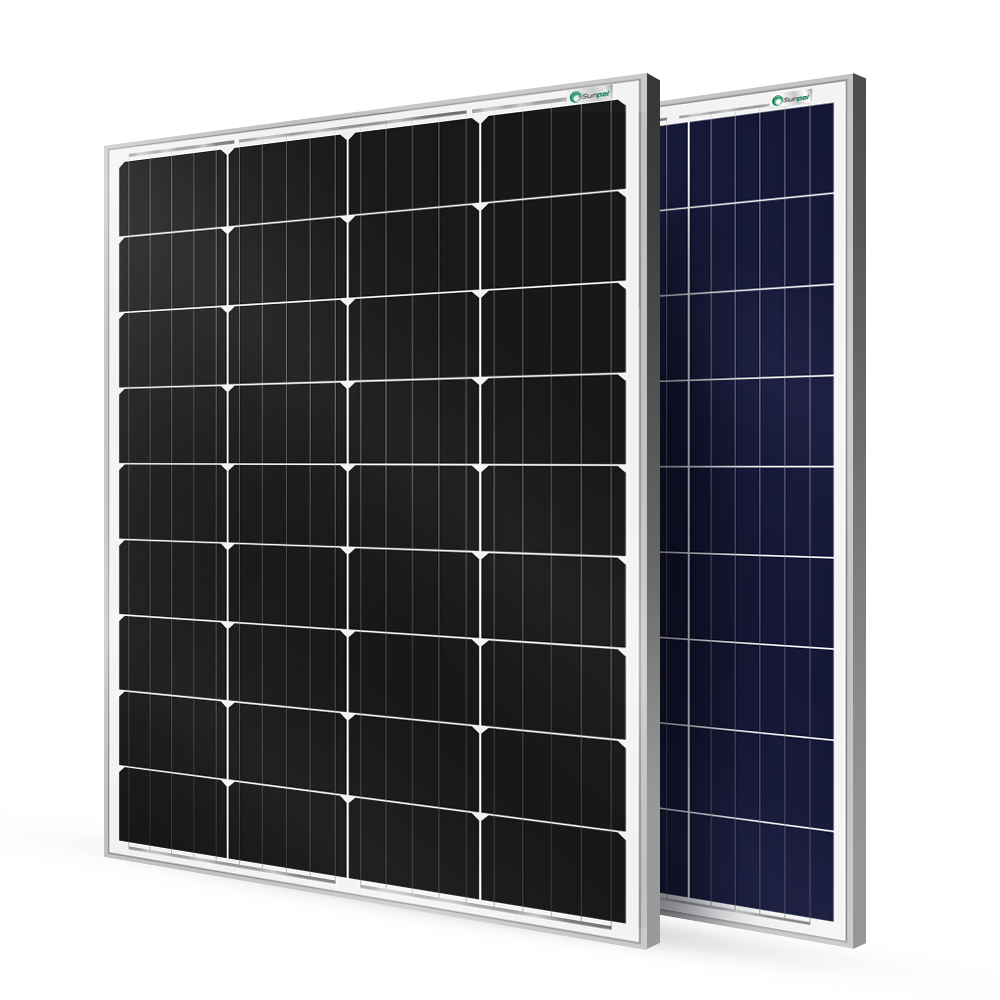

Quick Details
-
Warranty:
-
10Years, 10 Years
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP100M-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1000*665*30mm
-
PV Glass:
-
3.2mm Ultra Clear Tempered Low Iron
-
Solar cell:
-
Mono 104*156mm
-
Cell Color:
-
Black
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP67 Rated
-
Application:
-
Boats, RV, Roofs
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, CE-RoHS
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
customized solar panel
-
Panel Efficiency:
-
15%
-
Warranty:
-
10Years, 10 Years
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP100M-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1000*665*30mm
-
PV Glass:
-
3.2mm Ultra Clear Tempered Low Iron
-
Solar cell:
-
Mono 104*156mm
-
Cell Color:
-
Black
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP67 Rated
-
Application:
-
Boats, RV, Roofs
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, CE-RoHS
Product Description
ELECTRICAL DATA(STC)
|
Module
|
SPxxxM-36 xxx = Peak Power Watts
|
|
|
|
|
||||
|
Peak Power Watts(Pmax/W)
|
10
|
20
|
30
|
40
|
50
|
||||
|
Power Output Tolerance(W)
|
+3%
|
|
|
|
|
||||
|
Maximum Power Voltage(Vmp/V)
|
17.9
|
17.88
|
17.9
|
18.1
|
18.32
|
||||
|
Maximum Power Current(Imp/A)
|
0.56
|
1.12
|
1.68
|
2.21
|
2.73
|
||||
|
Open Circuit Voltage(Voc/V)
|
22
|
22.2
|
22.37
|
22.62
|
22.8
|
||||
|
Short Circuit Current(Isc/A)
|
0.62
|
1.24
|
1.68
|
2.48
|
2.93
|
||||
|
Module Efficiency(%)
|
10.07
|
11.6
|
12.5
|
12.4
|
13.7
|
||||
|
Module
|
SPxxxP-36 xxx = Peak Power Watts
|
|
|
|
|
||||
|
Peak Power Watts(Pmax/W)
|
20
|
30
|
40
|
50
|
55
|
||||
|
Power Output Tolerance(W)
|
+3%
|
|
|
|
|
||||
|
Maximum Power Voltage(Vmp/V)
|
17.2
|
17.3
|
17.3
|
17.5
|
18.18
|
||||
|
Maximum Power Current(Imp/A)
|
1.17
|
1.77
|
2.31
|
2.9
|
3.1
|
||||
|
Open Circuit Voltage(Voc/V)
|
21.7
|
21.9
|
21.8
|
21.8
|
22.1
|
||||
|
Short Circuit Current(Isc/A)
|
1.25
|
1.93
|
2.54
|
3.2
|
3.31
|
||||
|
Module Efficiency(%)
|
10.3
|
10.9
|
11.5
|
11.2
|
13.2
|
||||
STC:Irradiance 1000W/m
2
,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.
Product Description
ELECTRICAL DATA(STC)
|
Module
|
SPxxxM-36 xxx = Peak Power Watts
|
|
|
|
|
||||
|
Peak Power Watts(Pmax/W)
|
65
|
70
|
75
|
80
|
90
|
||||
|
Power Output Tolerance(W)
|
+3%
|
|
|
|
|
||||
|
Maximum Power Voltage(Vmp/V)
|
18.42
|
18.54
|
18.3
|
18.1
|
18.2
|
||||
|
Maximum Power Current(Imp/A)
|
3.53
|
3.78
|
4.10
|
4.42
|
4.95
|
||||
|
Open Circuit Voltage(Voc/V)
|
22.8
|
22.86
|
22.8
|
22.6
|
22.72
|
||||
|
Short Circuit Current(Isc/A)
|
3.77
|
4.03
|
4.39
|
4.74
|
5.3
|
||||
|
Module Efficiency(%)
|
14.2
|
14.5
|
14.3
|
13.5
|
14.3
|
||||
|
Module
|
SPxxxP-36 xxx = Peak Power Watts
|
|
|
|
|
||||
|
Peak Power Watts(Pmax/W)
|
60
|
65
|
70
|
85
|
90
|
||||
|
Power Output Tolerance(W)
|
+3%
|
|
|
|
|
||||
|
Maximum Power Voltage(Vmp/V)
|
18.2
|
18.4
|
18.2
|
18.4
|
18.6
|
||||
|
Maximum Power Current(Imp/A)
|
3.3
|
3.53
|
3.85
|
4.62
|
4.84
|
||||
|
Open Circuit Voltage(Voc/V)
|
22.2
|
22.4
|
22.2
|
22.4
|
22.6
|
||||
|
Short Circuit Current(Isc/A)
|
3.56
|
3.82
|
4.15
|
4.99
|
5.23
|
||||
|
Module Efficiency(%)
|
13.8
|
13.9
|
13.7
|
14.1
|
14.2
|
||||
STC:Irradiance 1000W/m
2
,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.
Our Factory
Strict QC System
100% Cells Sorting
100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
100% "Zero"
Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
Professional Packing
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
