Quick Details
-
Weight (KG):
-
0.35 KG
-
Name:
-
Laser module
-
Material:
-
Copper + Aluminum
-
Electric Power:
-
30W
-
Optical Output Power:
-
15W max.
-
Wave Length:
-
445nm
-
Working current:
-
2.5A
-
Input power:
-
12V 5a
-
Accuracy:
-
0.02mm
-
Light spot Size:
-
0.08MM
-
Laser Beam Mode:
-
Dot
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
/
-
Brand Name:
-
TZT
-
Weight (KG):
-
0.35 KG
-
Name:
-
Laser module
-
Material:
-
Copper + Aluminum
-
Electric Power:
-
30W
-
Optical Output Power:
-
15W max.
-
Wave Length:
-
445nm
-
Working current:
-
2.5A
-
Input power:
-
12V 5a
-
Accuracy:
-
0.02mm
-
Light spot Size:
-
0.08MM
-
Laser Beam Mode:
-
Dot
30W Laser Head Blue Purple Light 445nm Fixed Focus CNC Laser Module For CNC Engraving Machine
Features:
- Strong heat dissipation function allows it to work for a long time
- Adjustable power
- Support TTL/PWM control, fit multiple models
- Fixed focus laser, high precision
- High-power laser module, precision circuit board, durable
- Carve wood, plastic, bamboo, ivory, metal paint, stainless steel, ceramics, etc.
- Speed up engraving speed, automatically skip the blank
Specifications:
- Material: Copper + Aluminum
- Electric Power: 30W
- Optical Output Power: 15W max.
- Wave Length: 445nm
- Working current: 2.5A
- Input power: 12V 5a
- Accuracy: 0.02mm
- Drive Position: Behind
- Fan: 12v
- Light spot Size: 0.08MM
- Laser Beam Mode: Dot
- Working Frequency: 0-20KHz
Package Included:
- 1 x Set of Laser Module

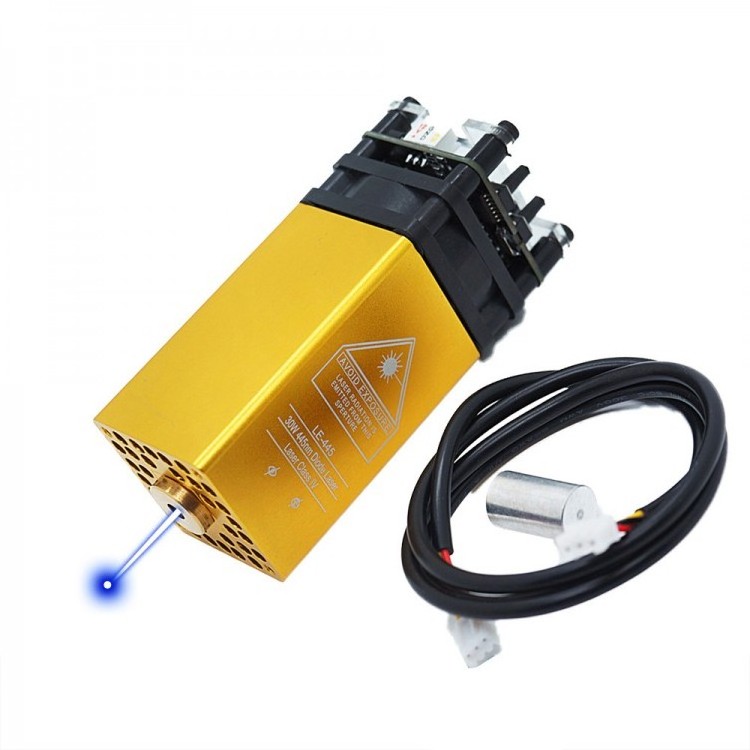

Detail photo
