Quick Details
-
Table Travel (Y) (mm):
-
2100
-
Spindle Taper:
-
HSK A100
-
Dimension(L*W*H):
-
9600*8000*5300 mm
-
Weight (T):
-
50 T
-
Table Travel (Z) (mm):
-
1700
-
Spindle Motor Power(kW):
-
75/75
-
Max. Table Load(kg):
-
6000 kg
-
Rapid Feed Speed(m/min):
-
60
-
Tool Magazine Capacity:
-
60
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DAHUIMT
-
Workbench center hole:
-
60H7 mm
-
B-axis swing range:
-
-30~180°
-
C-axis rotation range:
-
n*360°
-
B axis maximum speed:
-
30rpm
-
C-axis maximum speed:
-
15rpm
-
Spindle diameter:
-
270h5 mm
-
Spindle speed max:
-
7000 rpm
-
Spindle torque (S1/S6-40%):
-
550/650 Nm
-
Capacity:
-
125 kVA
-
Total machine weight:
-
50 t
Quick Details
-
Table Size (mm):
-
1700
-
Number of Axes:
-
5
-
Table Travel (X) (mm):
-
2100
-
Table Travel (Y) (mm):
-
2100
-
Spindle Taper:
-
HSK A100
-
Dimension(L*W*H):
-
9600*8000*5300 mm
-
Weight (T):
-
50 T
-
Table Travel (Z) (mm):
-
1700
-
Spindle Motor Power(kW):
-
75/75
-
Max. Table Load(kg):
-
6000 kg
-
Rapid Feed Speed(m/min):
-
60
-
Tool Magazine Capacity:
-
60
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DAHUIMT
-
Workbench center hole:
-
60H7 mm
-
B-axis swing range:
-
-30~180°
-
C-axis rotation range:
-
n*360°
-
B axis maximum speed:
-
30rpm
-
C-axis maximum speed:
-
15rpm
-
Spindle diameter:
-
270h5 mm
-
Spindle speed max:
-
7000 rpm
-
Spindle torque (S1/S6-40%):
-
550/650 Nm
-
Capacity:
-
125 kVA
-
Total machine weight:
-
50 t
Related products
Products
Recommended
Product Description
|
Item
|
Unit
|

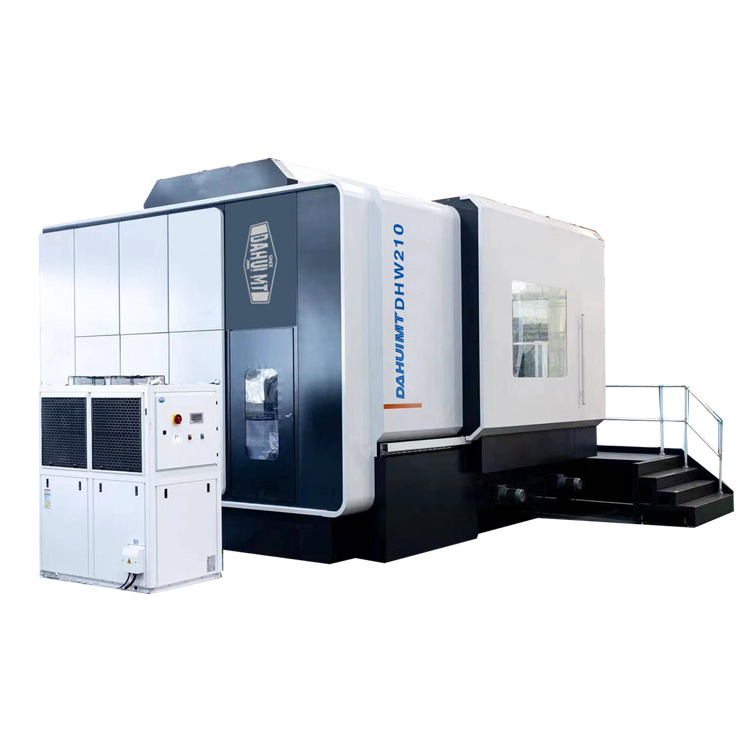

DHW210
|
||
|
Effective table size (diameter x width)
|
mm
|
Φ1700
|
||
|
T-slot specifications (slot width × quantity)
|
-
|
18H7×1：18H11*12
|
||
|
Workbench center hole
|
mm
|
Φ60H7
|
||
|
Maximum carrying capacity
|
kg
|
≤6000
|
||
|
Dimensions of the largest part (diameter X height)
|
mm
|
Φ2100×1700
|
||
|
X/Y/Z axis travel range
|
mm
|
2100/2100/1700
|
||
|
B-axis swing range
|
°
|
-30～180
|
||
|
C-axis rotation range
|
°
|
n × 360
|
||
|
X/Y/Z axis rapid traverse speed
|
mm/min
|
60000/60000/60000
|
||
|
B axis maximum speed
|
rpm
|
30
|
||
|
C-axis maximum speed
|
rpm
|
15
|
||
|
Spindle diameter
|
mm
|
Φ270h5
|
||
|
Spindle speed max
|
rpm
|
7000
|
||
|
Spindle power (S1/S6-40%)
|
kW
|
75/75
|
||
|
Spindle torque (S1/S6-40%)
|
Nm
|
550/650
|
||
|
Spindle taper hole according to DIN69893 standard
|
-
|
HSK A100
|
||
|
Distance from spindle end face to table - vertical (min/max)
|
mm
|
230/1930
|
||
|
Distance from spindle center to table - horizontal (min/max)
|
mm
|
130/1830
|
||
|
X/Y/Z axis positioning accuracy
|
mm
|
0.008
|
||
|
X/Y/Z axis repeatability of positioning
|
mm
|
0.005
|
||
|
B/C axis positioning accuracy
|
″
|
8/8
|
||
|
B/C axis Repeatability of positioning
|
″
|
6/5
|
||
|
Spindle end runout
|
mm
|
0.002
|
||
|
Radial runout of spindle taper bore (near spindle end)
|
mm
|
0.003
|
||
|
The radial runout of the spindle taper hole (300mm from the end of the spindle)
|
mm
|
0.012
|
||
|
*Note: Accuracy requirements for other items not specified are as specified in the standard.
|
|
|
||
|
Tool magazine capacity
|
pcs
|
60
|
||
|
Automatic tool change method
|
-
|
Robotic arm
|
||
|
Maximum diameter of cutter plate (full cutter)
|
mm
|
Φ125
|
||
|
Maximum diameter of cutter plate (adjacent empty)
|
mm
|
Φ250
|
||
|
Maximum tool length
|
mm
|
400
|
||
|
Maximum weight of single tool
|
kg
|
25
|
||
|
CNC system (optional)
|
-
|
HEIDENHAIN TNC 640
|
||
|
Capacity
|
kVA
|
150
|
||
|
Total machine weight
|
t
|
≈50
|
||
|
Machine dimensions (length × width × height)
|
mm
|
9600×8000×5300
|
||
