- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HanDao
-
Dimension(L*W*H):
-
417*441*494mm
-
Weight:
-
53
-
Rated power/speed:
-
6.9kw/3600rpm
-
Marketing Type:
-
Other
-
Starting system:
-
Recoil Start+Electric Start
-
Engine Model:
-
HD188FE
-
BORE*STROKE:
-
88*75mm
Quick Details
-
Displacement:
-
456cc
-
Emission Standard:
-
Other
-
Power:
-
10HP, 7kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HanDao
-
Dimension(L*W*H):
-
417*441*494mm
-
Weight:
-
53
-
Rated power/speed:
-
6.9kw/3600rpm
-
Marketing Type:
-
Other
-
Starting system:
-
Recoil Start+Electric Start
-
Engine Model:
-
HD188FE
-
BORE*STROKE:
-
88*75mm
Product details

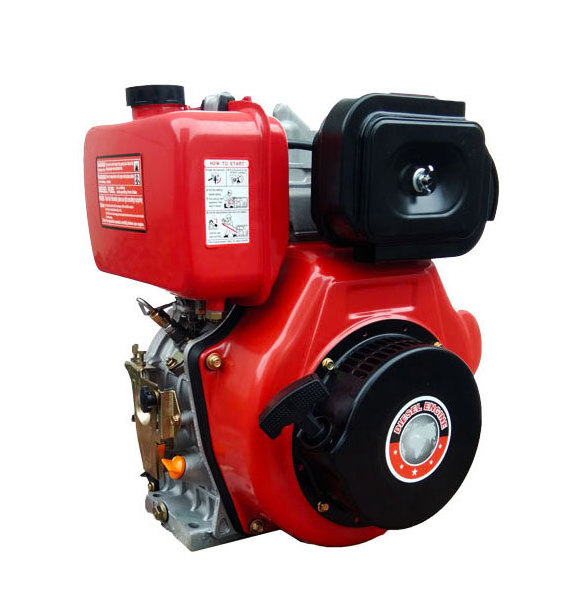

Diesel engine 188FA/FAE
1.Ultra low fuel consumption
Using the patented technology of top clearance oil pump and bottom inertia fuel injection pump, combined with the characteristics of new combustion chamber and high combustion consumption rate, its fuel consumption economy is much lower than that of gasoline engine.
2.
Strong and powerful
Large reserve torque, strong power and inherent super overload capacity
3.
Low noise volume
The well-designed gear transmission structure can greatly reduce vibration and noise. The patented air filter can significantly reduce the noise of intake and exhaust
4.
Safe and reliable
Exquisite craftsmanship and strict quality concept ensure the safety and reliability of products
5.
Wide application range
Various output forms are available for customers to choose
|
Engine model
|
HD188FA/FAE
|
|
|
|
Type
|
Single cylinder, four stroke, air-cooled, vertical
|
|
|
|
combustion system
|
Direct injection
|
|
|
|
Bore×stroke (mm)
|
88*75
|
|
|
|
Displacement(cc)
|
456
|
|
|
|
Compression ratio
|
19.5：1
|
|
|
|
Rated speed [RPM]
|
3000
|
3600
|
|
|
Rated power [kW]
|
6.6
|
6.9
|
|
|
Rated power [HP]
|
9.0
|
9.4
|
|
|
Start mode
|
F:Recoil
|
E:Electric
|
|
|
Tank volume (L)
|
5.5
|
|
|
|
Oil capacity (L)
|
1.65
|
|
|
|
Fuel consumption (g / kWh)
|
275
|
280
|
|
|
Fuel
|
Diesel: 0# (summer), -10# (winter)
|
|
|
|
Lubrication oil
|
Sae10w30 (above CD level)
|
|
|
|
Size(mm)
|
417*441*494
|
|
|
|
Net weight(kg)
|
F: 48
|
E: 53
|
|
|
Steering (viewed from flywheel)
|
Clockwise
|
|
|
