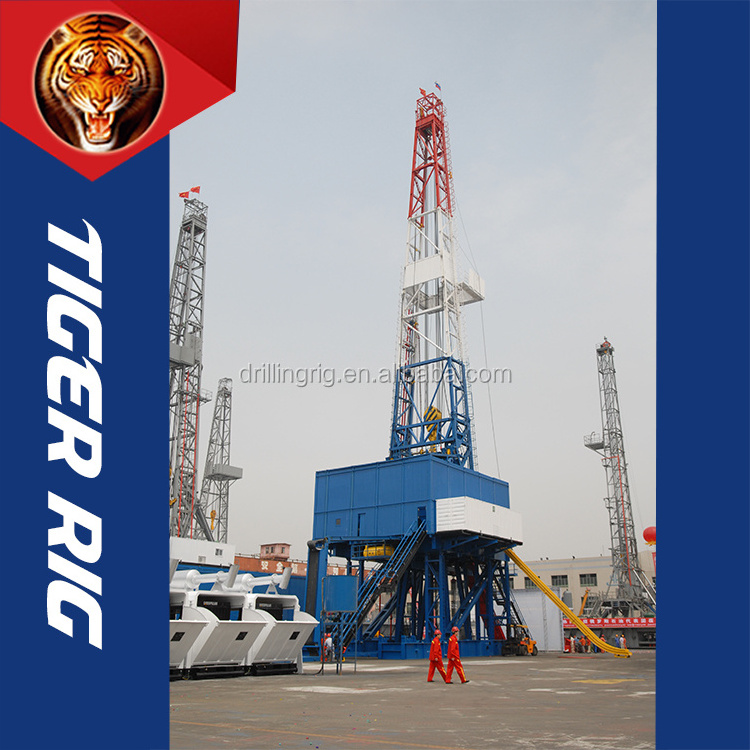

Tiger rig world-class technical ZJ70DBS land drilling rig machine
Major features for drilling rig
Adopts integrated design of mechanical, electrical, hydraulic, pneumatic and digital control, utilizes fully the advantages of advanced digital control AC VF electric transmission, and simplifies its mechanical structure.
As adopting of slingshot type substructure, drill floor equipments and driller cabin etc realize low-position installation and integer lifting.
Electric transmission adopts vector VF drive system to realize all digital operation and control, and also processes elementary functions of automation, intelligence and information to realize collection (signal), display, restoration, printing, remote monitoring and management of control and drilling parameters.
By the use of VF technology, DW realizes max torque output when its speed is zero to ensure the suspension function of rig lifting system, which change traditional driller operation mode completely.
This drilling rig price is equipped with an integral driller's cabin, in which a driller can finish major operations.
|
Model |
ZJ30DBS |
ZJ40DBS |
ZJ50DBS |
ZJ70DBS |
ZJ90DBS |
||
|
Nominal depth
|
114mm(4 1/2 in.) DP |
1600~3000
|
2500~4000
|
3500~5000
|
4500~7000
|
6000~9000
|
|
|
127mm(5 in.) DP |
1500~2500
|
2000~3200
|
2800~4500
|
4000~6000
|
5000~8000
|
||
|
Max. load of drilling string
|
1700 (382) |
2250 (496) |
3150 (695) |
4500 (992) |
6750(1518) |
||
|
Max. line number strung |
5×6 |
5×6 |
6×7 |
6×7 |
7×8 |
||
|
Dia. of drilling line mm (in) |
29 (1 1/8) |
32 (1 1/4) |
35 (1 3/8) |
38 (1 1/2) |
42 (1 3/4) |
||
|
Dia of traveling sheave mm (in) |
1005 (40) |
1120 (44) |
1270 (50) |
1524 (60) |
1524 (60) |
||
|
Center pipe dia. of swivel mm (in) |
75 (3) |
75 (3) |
75 (3) |
75 (3) |
75 (3) |
||
|
Rated input power of DW kW (hp) |
550 (750) |
735(1000) |
1000(1340) |
1470 (2000) |
2210(3000) |
||
|
Shifting number of DW |
Stepless change |
Stepless change |
Stepless change |
Stepless change |
Stepless change |
||
|
Type of main brake |
Disk/Band |
Disk/Band |
Disk/Band |
Disk/Band |
Disk/Band |
||
|
Type of auxiliary brake |
E.T. N ddy/Eaton |
E.T. N dy/Eaton |
E.T. N Eddy/Eaton |
E.T. N Eddy/Eaton |
E.T. N Eddy/Eaton |
||
|
Opening of RT mm (in) |
520.7 (20 1/2) |
698.5 (27 1/2) |
698.5 (27 1/2) |
952.5 (371/2) |
952.5 (37 1/2) |
1257.3 (49 1/2) |
|
|
Shifting number of RT |
2 Step less change |
2 Step less change |
2 Step less change |
2 Step less change |
2 Step less change |
2 Step less change |
|
|
Power per MP kW (hp) |
735 (1000) |
956 (1300) |
956 (1300) |
1180 (1600) |
1180 (1600) |
1640 (2200) |
|
|
Number of MP |
1 |
2 |
2 |
2, 3 |
3 |
||
|
Mast effective height m (ft) |
41 (134) |
43 (142) |
45 (147) |
45 (147) |
46 (152) |
||
|
Drill floor height m (ft) |
6 (19.7), |
7.5 (25) |
9 (30), 10.5 (35) |
9 (30), 10.5 (35) |
12 (40) |
||
|
Drill floor clearance m (ft) |
4.7 (15.6), |
6.26 (20.5) |
7.62 (25), 9.12 (30) |
7.62 (25), 9.12 (30) |
10(33.33) |
||
|
Noted-- AC VF drive Drilling Rig |
|||||||
