Quick Details
-
Wavelength range:
-
400~700nm
-
Integrating sphere Size:
-
58mm
-
Observer:
-
2°/10°
-
Repeatability:
-
delta E*≤0.05
-
Measuring Aperture:
-
8mm
-
Certificates:
-
CE&RoHS&TUV&FCC&ISO9001
-
Reflectance range:
-
0~100%
-
Lamp life:
-
5 years
-
Warranty:
-
1 year
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Illumination/observation system:
-
de:8°(diffused illumination, 8-degree viewing angle
-
Wavelength range:
-
400~700nm
-
Integrating sphere Size:
-
58mm
-
Observer:
-
2°/10°
-
Repeatability:
-
delta E*≤0.05
-
Measuring Aperture:
-
8mm
-
Certificates:
-
CE&RoHS&TUV&FCC&ISO9001
-
Reflectance range:
-
0~100%
-
Lamp life:
-
5 years
-
Warranty:
-
1 year

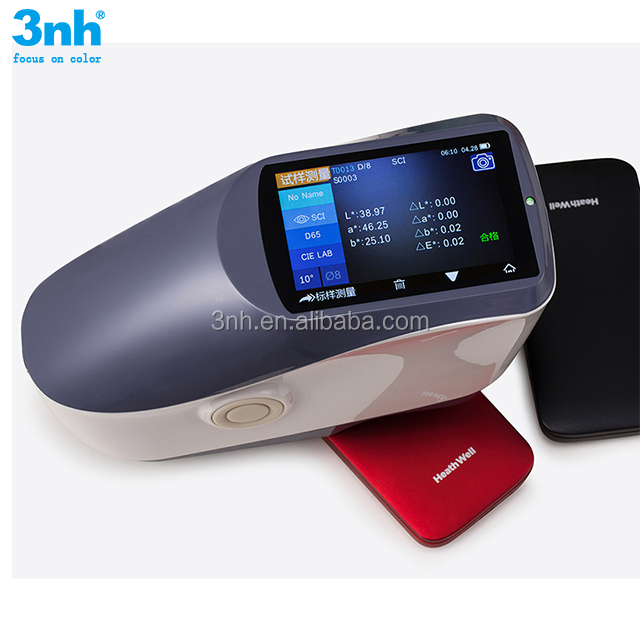

Cheap car paint spectrophotometer price 3nh ys3010 8mm measurement aperture compare to data color 600 spectrophotometer
YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.
YS3060 UV Grating Spectrophotometer
Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.
YS3020 Grating Spectrophotometer
Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.
YS3010 Grating Spectrophotometer
4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
Product Application
Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Main Features
A.Perfect combination of beautiful appearance and the human body mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source, including UV/excluding UV;
D.Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
G.USB/Bluetooth 2.1, dual mode, widely useful;
H.Super stain-resistant and stable standard white calibration plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
l.PC software has a powerful function extension.
We produced colorimeter, spectrophotometer, color light box and gloss meter, iso 12233 test charts, and we offer OEM service and supply all kinds of custimzed service.
Our products are widely used are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory.
QUALITY POLICY
ISO9001, CE, TUV, ROHS, FCC, SCM etc.
OUR CLIENTELE
LG, LENOVO, HUAWEI, EMERSON, SIEMENS, SONY, YKK, PHILIPS, Power Dekor, SEIKO, UNILEVER, Galanz, Colgate, Haire, YOUNGOR, KELON ETC.
PRODUCT PORTFOLIO
Product classification Spectrophotometer/Colorimeter, Colorimeter Accessories, Digital Imaging Test Solution ,Resolution Test Chart, Gloss Meter, Color light box etc
AIM / VISION / MISSION
3nh Vision Focus on color, to become the industry leader in color management field. 3nh adheres to people-oriented, customer first, technological innovation, sustainable development business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.
Q: Are you trading company or manufacturer ?
A:
We are a professional factory located in Shenzhen city. Welcome to come to visit and purchase from us.
Q: When did you start your company?
A:
We start from 1998, and we have 19 years focus on color industry.
Q: How long is your delivery time?
A:
Generally it is 1-3 working days if the goods are in stock.
Q: Do you provide samples ? is it free or extra ?
A:
Yes, and customers need to pay for the freight.
Q: What is your terms of payment ?
A:
Payment is 100% T/T in advance.
Q: What's your MOQ?
A:
Our MOQ is 1 set. If you order more than 5 sets, we could give quantity discount.
Q: What is your warranty?
A: We offer 1 year warranty for all products except consumables.
