Quick Details
-
Weight (KG):
-
10000 KG
-
Feeding type:
-
Chain feeding or auto feeding
-
Function:
-
complete slot, cut angle, crease, punching one time.
-
paper feed speed:
-
4000pcs per hour
-
die cutting accuracy:
-
± 1mm
-
Wall thickness:
-
50mm
-
Business type:
-
Manufacturers
-
Factory experience:
-
10 years
-
Roller treatment:
-
quenching treatment with chrome coated
-
Machine Mode:
-
printer slotter die cutter
Quick Details
-
Brand Name:
-
KS
-
Marketing Type:
-
Hot Product 2024
-
Type:
-
Carton Printer Slotter
-
Weight (KG):
-
10000 KG
-
Feeding type:
-
Chain feeding or auto feeding
-
Function:
-
complete slot, cut angle, crease, punching one time.
-
paper feed speed:
-
4000pcs per hour
-
die cutting accuracy:
-
± 1mm
-
Wall thickness:
-
50mm
-
Business type:
-
Manufacturers
-
Factory experience:
-
10 years
-
Roller treatment:
-
quenching treatment with chrome coated
-
Machine Mode:
-
printer slotter die cutter
Carton Box Packing Corrugated Cardboard Rotary Die Cutting Machine flexo printing pizza box machine
1.Chain feeder type - 40-50pcs per min , you can also choose add auto feeder device , then speed can be 60 pcs per min
2. Printing unit printing plate mould you can choose pasting type and hanging type , if more than 2 color , advice you choose hanging type . Machine you can choose , one color machine , two color machine , three color machine , four color machine . of course color is more , machine price is more expensive
3. Slotting unit can only make standard shape box , and size is adjustable
4. Die cutting unit can make any design box you want , just when do different design and different size box , need change die cutting mould .
5. We can supply die cutting mould for you , just send us your detailed box drawing is ok
Product description
Semi automatic chain feeding 3 color flexo pizza carton box printer slotter machine
Printing department
the rinting roller diameter .480MM
Auto rise the ink plate ,the inker turning to prevent ink dried.
,Adopt electrically separation ,pneumatic locking
Ink supplied by pneumatic diaphragm pump
Main transmission gear made by 45# steel ,it adopts helical gear driving and processed by high frequency quenching.Auto sprinkle lubricating system ensures the machine precise and use life
all the roller must be chrome –plating in order to increase the hardness
.the auto count function
Have alarm system ,when machine start work there have alarm ,gurantee the work safe

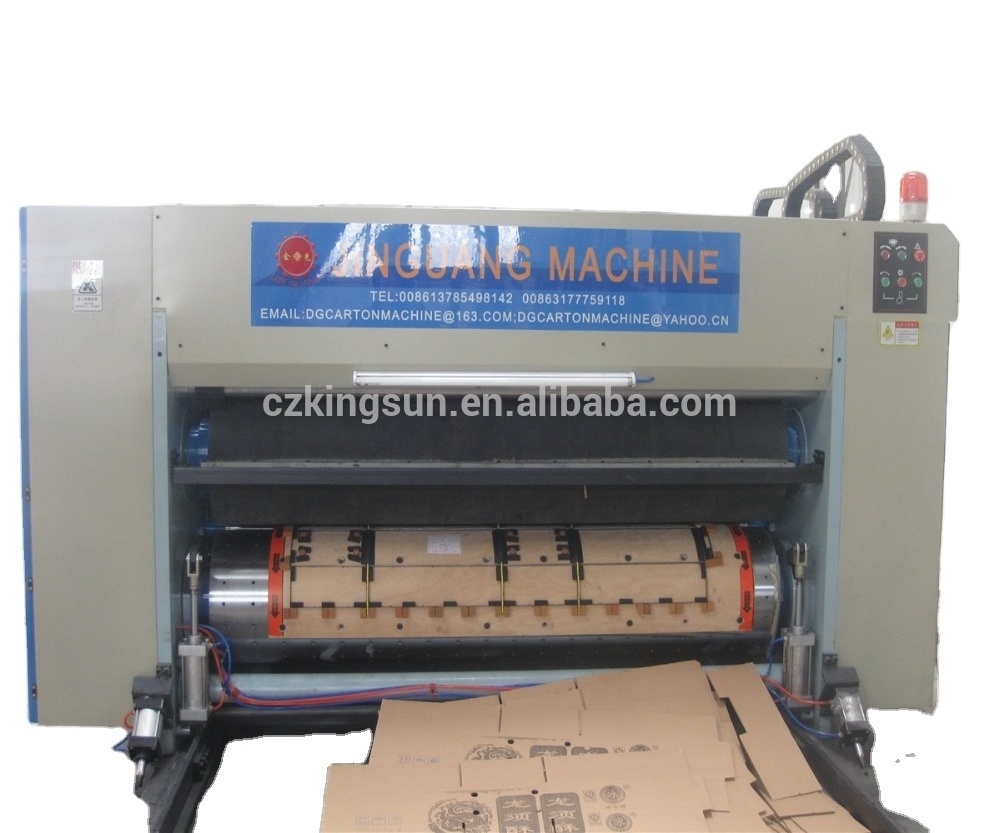

Slotter and die cutting part - can be designed separately or combine
1.Four slotter knives , open the slot ,creasing the line and cut the corner
2.The knives use the good material ,long use life
3.Our slot knives can be same time adjust
4.The phase can be adjust by electrical 360oC
5.Feed roller all be chrome plate
|
Model
|
YSF-S 1450x3000
|
|
Diameter of roller
|
480MM
|
|
The max speed
|
60pcs
|
|
The max feeding size
|
1450X2800mm
|
|
Slot Min feeding size
|
450x1000MM
|
|
Effective printing size
|
1450x2600mm
|
|
The effective thickness
|
3.5.7ply (2-12mm)
|
|
Printing plate thickness
|
6±0.1
|
|
The max depth of slot
|
370
|
Our Service
Company information
Hebei Jinguang packing machine Co.,Ltd was built in 2008 , mainly manufacture and export the carton box machinery .
15 years export experience
Export to more than 100 countries
Export more than 100 containers capacity
Professional international sales more than 30 persons
Professional sale team , technical team and after sales service team
