Quick Details
-
Brand Name:
-
Huarui
-
Model Number:
-
A141
-
Product name:
-

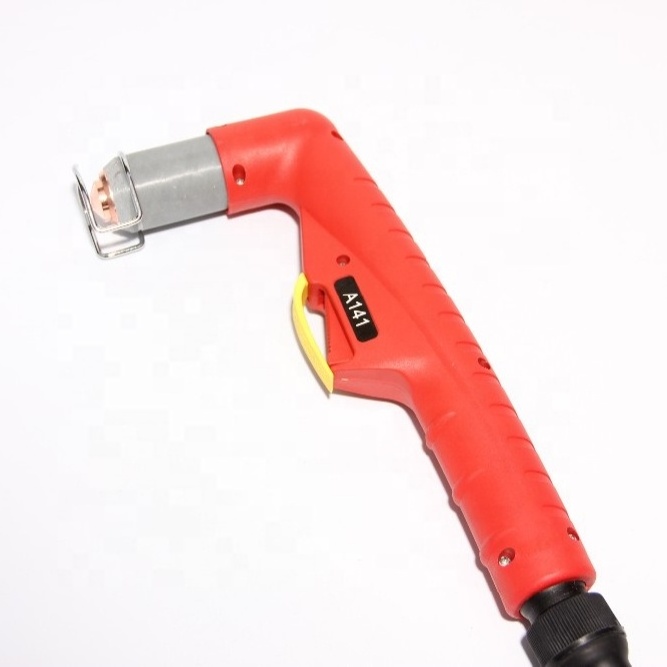

HR A141 High Frequency Air Plasma Torch
-
Length:
-
4/ 8m
-
Rating:
-
140Amps
-
Duty cycle:
-
60%
-
Cutting capacity:
-
35mm Max(Most Materials)
-
Air flow:
-
210 litres per minute
-
Cable fitting:
-
M14x1-1/4"BSP and Central
-
Handle:
-
A141handle
Quick Details
-
Type:
-
CUTTING TORCH
-
Warranty:
-
3 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huarui
-
Model Number:
-
A141
-
Product name:
-
HR A141 High Frequency Air Plasma Torch
-
Length:
-
4/ 8m
-
Rating:
-
140Amps
-
Duty cycle:
-
60%
-
Cutting capacity:
-
35mm Max(Most Materials)
-
Air flow:
-
210 litres per minute
-
Cable fitting:
-
M14x1-1/4"BSP and Central
-
Handle:
-
A141handle
|
Usage
|
Hand Torch/ Machine Torch
|
|
Rear Connector
|
1/8'' Bsp Connector
/
Central Connector/ G3/8'' Connector
|
|
Cable Length
|
4M/ 8M
|
|
Air Flow
|
210 litres per minute
|
|
Rating
|
140A
|
|
Consumables
|
|
|
|
Part No.
|
Description
|
|
|
PF0155
|
Torch Head -Hand
|
|
|
PF0102
|
Torch Head -Machine
|
|
|
EA0131
|
O-Ring - Torch Head
|
|
|
FH563
|
Diffuser
|
|
|
P1502
|
Extended Diffuser
|
|
|
PR0101
|
Electrode Harfnium
|
|
|
PR116
|
Extended Electrode
|
|
|
PE0101
|
Swirl Ring
|
|
|
PE0103
|
Swirl Ring for Extended Electrode
|
|
|
PD0101-11
|
Tip 1.1mm
|
|
|
PD0101-14
|
Tip 1.4mm
|
|
|
PD0101-17
|
Tip 1.7mm
|
|
|
PD0101-19
|
Tip 1.9mm
|
|
|
PD0101-30
|
Gouging Tip 3.0mm
|
|
|
PD111-12
|
Extended Tip Max 50 Amp, 1.2mm
|
|
|
PD117-14
|
Extended Tip 1.4mm Max 90 Amp
|
|
|
PD117-17
|
Extended Tip 1.7mm Max 120 Amp
|
|
|
PD117-19
|
Extended Tip 1.9mm Max 150 Amp
|
|
|
PC0101
|
Nozzle Retaining Cap
|
|
|
PC0102
|
Nozzle Retaining Cap - Long Life
|
|
|
PC0103
|
Contact Nozzle Retaining Cap
|
|
|
PC0131
|
Contact Nozzle Ret. Cap - Long Life
|
|
Changzhou Hu
aru
i W
elding
& Cut
ting Co., LTD
used in ship-building, railway, aviation and other related welding industry. Our torches can fit different kinds of foreign equipment.
Q1: Can I get a samples to check the quality?
A:Sure,we can supply samples. For regular goods, the sample cost is different from the amount you want. For our new products, there's a MOQ of the samples.'
Q2: Can I put my logo on the boxes/cartons?
A: Yes, this can be made according to your requirements, but you should send us the trademark authorization letter.
Q3: How can you guarantee your products quality ?
A: Huarui’s each torch must pass the following tests before packing: Insulation resistance test, High voltage test, Air/Water flow test, Air/Water seal test.
If there are defective items, we usually credit to our customer or replace in the next shipment.
Q4: What's the order procedure?
A: Firstly, we discuss the details together by e-mail or TM. Then we issue you a PI for your confirmation or Trade Assurance Order Payment Link. You will be requested to do the pre-paid full payment before we go into the production. After we get the payment, we start to process the order. It usually takes 5-15days if we don't have the items in stock.
