Quick Details
-
Weight:
-
Each model is different
-
Size:
-
different as each model
-
Power:
-
2-5
-
Weight (KG):
-
200 kg
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lianhua
-
Material:
-
wooden box
-
Weight:
-
Each model is different
-
Size:
-
different as each model
-
Power:
-
2-5
-
Weight (KG):
-
200 kg
Product Description

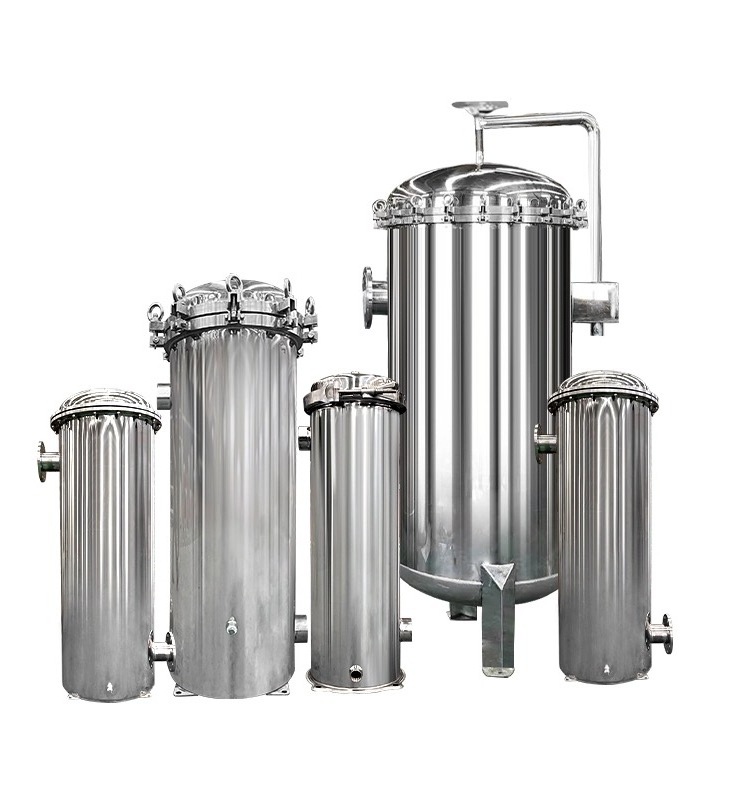

Stainless steel multi bag filter housing is suitable for working conditions with a flow rate of 40~1000m3/h. It adopts side inlet and bottom outlet method (bottom inlet and bottom outlet method can also be used), and the filtered liquid medium is pressed in or pumped by the pressure in the pipeline Into the filter barrel, the liquid medium to be filtered is filtered by the filter bag supported by the filter basket supported by the electro-polishing punching hole, resulting in an ideal solid-liquid separation to achieve the effect of filtering the liquid medium. Lianhua multi bag filters can also be customized according to customer requirements.
Spec
* Work Pressure: Less than 0.4Mpa
* Working Temperature: Normal temperature
* Surface Treatment: Mirror polishing, matt, carbon steel spray paint
* Material: SUS304, SUS316, SUS316L, carbon steel anticorrosive
* Packing: Quartz sand, manganese sand, carbon, resin
Working Principle
The working principle of bag filtration is pressure filtration. The complete bag filter system includes three parts: filter container, support basket and filter bag. The filtered liquid is injected into the container from the top or the side, flows from the bag to the outside of the bag, and is evenly distributed on the entire filter surface. The filtered particles are trapped in the bag without leakage. The user-friendly and convenient design, the overall structure is exquisite, and the operation is efficient. With large processing capacity and long service life, it is an energy-saving product in the liquid filtration industry. It is suitable for coarse filtration, intermediate filtration and fine filtration of any fine particles or suspended matter.
Applications
Water treatment, automobile industry, petrochemical industry, electronics industry, pharmaceuticals, paint and coatings, paper industry, textile industry, mechanical processing, etc.
Our Advantages
1. SS304/316 316L for Choose
2. The unique seal system makes the filter more safety.
3. It can prevent the bag plunged into the support basket, no inner leak.
4. Good appearance and compact inner construct.
5. High precision, the filter range can be from 0.5-200um.
6. High efficiency of filter: Quick flow of liquid, big capacity of impurity.
7. The price is more competitive.
FAQ
Q1: Are you trading company or manufacture?
A: We are both manufacture and trading company. We have over 10 years' professional experience as a waste water treatment equipment manufacturer and engineering service enterprise.
Q2: Where is your factory located?
A: Yixing City, which is very close to Shanghai with only less than 3 hours' driving.
Q3: How could we trust you and your company? This is first time transaction?
A: Our company has more than 10 years professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 40 countries all over the world. Welcome to our company and watch our plant production condition any time.
Q4: Do you offer after-sales service?
A: Yes. Engineers available.
Q5: How long is your warranty?
A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q6: What about your delivery Time?
A: Normally within 40 days against down payment.
