Quick Details
-
Model Number:
-
PTZ-D70N-C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AKUSENSE
-
Theory:
-
Optical sensor
-
Output:
-
switch output
-
Product name:
-
photoelectric sensor switch
-
Sensing distance:
-
100 cm / 39 inches
-
Warranty:
-
1 Year
-
Voltage - Supply:
-
10-30 VDC
-
Response time:
-
< 500 μs
-
Light source:
-
Red light LED
-
Sensitivity:
-
adjuster
-
Protective degree:
-
IP 67
-
Connection:
-
pre-wired
-
Cable:
-
2 m 3 wire
Quick Details
-
Usage:
-
factory automation
-
Mounting Type:
-
easy
-
Description:
-
photo sensor, bgs sensor
-
Model Number:
-
PTZ-D70N-C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AKUSENSE
-
Theory:
-
Optical sensor
-
Output:
-
switch output
-
Product name:
-
photoelectric sensor switch
-
Sensing distance:
-
100 cm / 39 inches
-
Warranty:
-
1 Year
-
Voltage - Supply:
-
10-30 VDC
-
Response time:
-
< 500 μs
-
Light source:
-
Red light LED
-
Sensitivity:
-
adjuster
-
Protective degree:
-
IP 67
-
Connection:
-
pre-wired
-
Cable:
-
2 m 3 wire

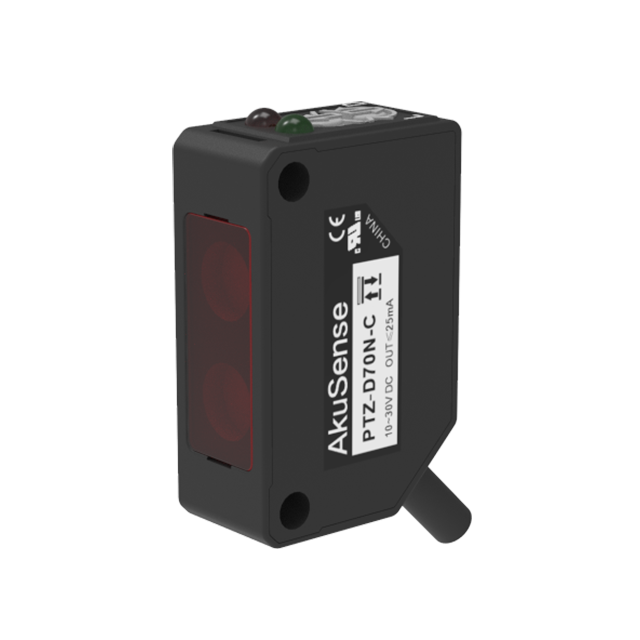

Product Description
Specification
Square Type (PTZ-C Series)
● New arrival, 25.4 mm standard hole's gap
● Features with IO link
● Sensitivity adjustable, visible red light.
|
Model
|
PTZ-D70N-C
|
|
Sensing type
|
Diffuse reflection
|
|
Sensing distance
|
0~1m(white paper200X200mm)
|
|
Beam size
|
φ75mm / 1m
|
|
Output type
|
NPN Open-collector, ≤100mA(30VDC)
|
|
Switch type
|
L.on/D.on selectable
|
|
Indicator
|
Input indicator: orange, Status indicator: green
|
|
Response time
|
≤500us
|
|
Senstivity adjustment
|
Single turn adjuster
|
|
Light source
|
Red light LED
|
|
Operating voltage
|
10~30V DC±10%
|
|
Current consumption
|
≤20mA
|
|
Hysteresis
|
≤20%
|
|
Function
|
IO-LINK
|
|
Ambient light
|
Sunlight≤50000Lux，Incandescent lamp≤5000Lux
|
|
Ambient temperature
|
-25℃~+55℃，no freezing
|
|
Ambient humidity
|
35%~85%RH，No condensation
|
|
Degree of protection
|
IP 67
|
|
Connection
|
3 wire 2m cable
|
|
Material
|
ABS (housing) +PMMA (window)
|
