Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
6200 6201 6202 6203 6204 6205 6206
-
Seals Type:
-
OPEN ZZ 2RS RS
-
Place of Origin:
-
Jiangsu, China
-
Material:
-
Bearing Steel,stainless steel, carbon steel
-
Vibration Level::
-
V1 ,V2 ,V3,V4
-
Cage:
-
Steel Cage.copper Cage.nylon Cage
-
Package:
-
10pcs in a plastic tube+individ box+carton
-
Model:
-
6200 6201 6202 6203 6204 6205 6206ZZ RZ
-
Certificate:
-
ISO9001:2008
-
Application:
-
engine, auto parts, fan, transmission
-
Clearance::
-
C0 C2 C3 C4 C5
-
Product name:
-
Deep groove ball bearing 6002 with bearing steel
-
Lead Time::
-
Within 3-5 days
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Bore Size:
-
2 - 15 mm
-
Precision Rating:
-
P0 P6 P5 P4 P2
-
Number of Row:
-
Single row
-
Model Number:
-
6200 6201 6202 6203 6204 6205 6206
-
Seals Type:
-
OPEN ZZ 2RS RS
-
Place of Origin:
-
Jiangsu, China
-
Material:
-
Bearing Steel,stainless steel, carbon steel
-
Vibration Level::
-
V1 ,V2 ,V3,V4
-
Cage:
-
Steel Cage.copper Cage.nylon Cage
-
Package:
-
10pcs in a plastic tube+individ box+carton
-
Model:
-
6200 6201 6202 6203 6204 6205 6206ZZ RZ
-
Certificate:
-
ISO9001:2008
-
Application:
-
engine, auto parts, fan, transmission
-
Clearance::
-
C0 C2 C3 C4 C5
-
Product name:
-
Deep groove ball bearing 6002 with bearing steel
-
Lead Time::
-
Within 3-5 days

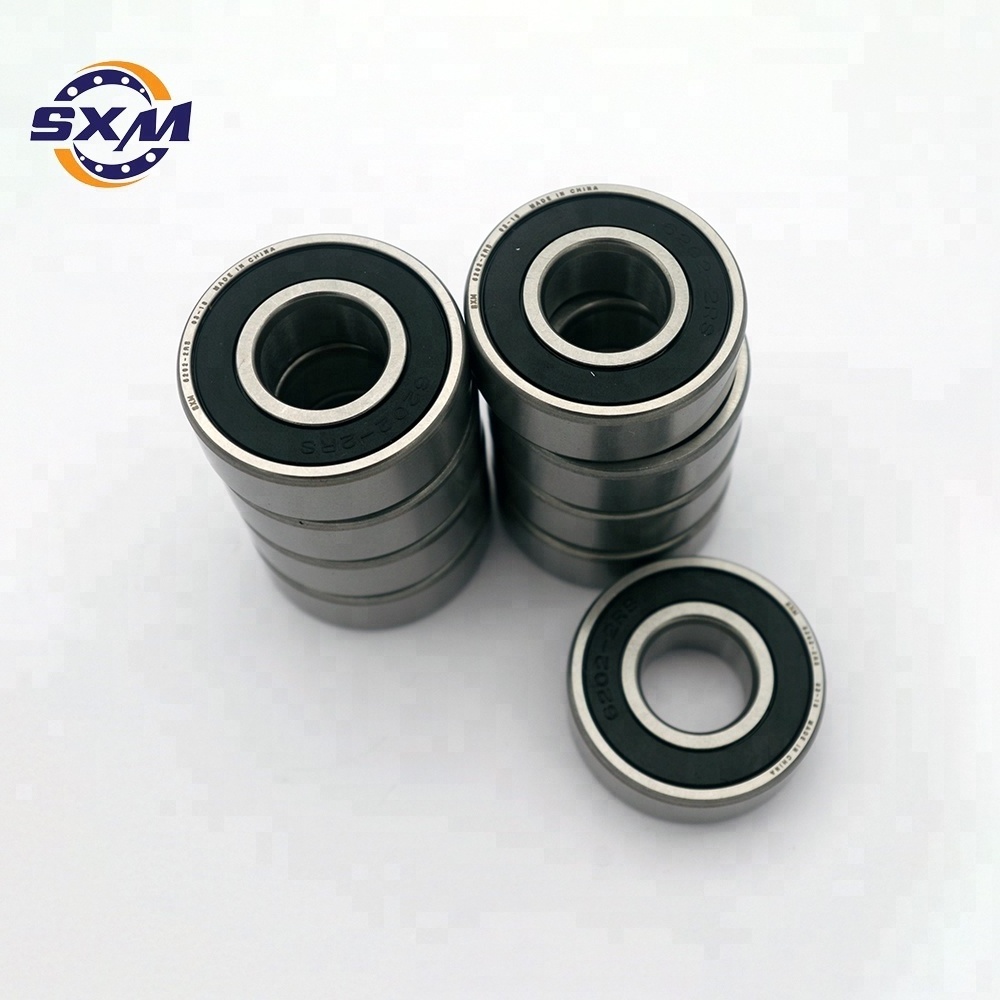

electric scooters bearing ball bearing 6200 6201 6202 6203 6204 6205 6206ZZ RZ Deep Groove Ball Bearing
Deep groove ball bearings are simple in design, non-separable, suitable for high and very high speeds and are robust in operation, requiring little maintenance. They are the most widely used bearing type.
Deep groove ball bearings are mainly subjected to radial loads and can also bear both radial and axial loads. When it is only subjected to radial loads, the contact angle is zero. When the deep groove ball bearings with a large radial clearance, the same as angular contact bearing performance, can withstand greater axial load, The friction coefficient is very small, and the limit speed is also high.
Deep groove ball bearing specification(6200-6214)
|
TYPES
|
Bore
|
|
|
Outside Diameter
|
|
|
Width
|
|
Max.
|
|||||
|
|
Frac.
|
Inch
|
Tol.
|
Frac.
|
Inch
|
Tol.
|
TOL.
|
0
|
Fillet
|
|||||
|
|
|
|
|
|
|
|
|
-0.005
|
Radius
|
|||||
|
|
|
|
|
|
|
|
Open
|
Seal/Shield
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
6200
|
10
|
0.3937
|
-0.0003
|
30
|
1.1811
|
-0.0004
|
9
|
0.3543
|
0.025
|
|||||
|
6201
|
12
|
0.4724
|
-0.0003
|
32
|
1.2598
|
-0.0005
|
10
|
0.3937
|
0.025
|
|||||
|
6202
|
15
|
0.5906
|
-0.0003
|
35
|
1.378
|
-0.0005
|
11
|
0.4331
|
0.025
|
|||||
|
6203
|
17
|
0.6693
|
-0.0003
|
40
|
1.5748
|
-0.0005
|
12
|
0.4724
|
0.025
|
|||||
|
6204
|
20
|
0.7874
|
-0.0004
|
47
|
1.8504
|
-0.0005
|
14
|
0.5512
|
0.04
|
|||||
|
6205
|
25
|
0.9843
|
-0.0004
|
52
|
2.0472
|
-0.0005
|
15
|
0.5906
|
0.04
|
|||||
|
6206
|
30
|
1.1811
|
-0.0004
|
62
|
2.4409
|
-0.0005
|
16
|
0.6299
|
0.04
|
|||||
|
6207
|
35
|
1.378
|
-0.0005
|
72
|
2.8346
|
-0.0005
|
17
|
0.6693
|
0.04
|
|||||
|
6208
|
40
|
1.5748
|
-0.0005
|
80
|
3.1496
|
-0.0005
|
18
|
0.7087
|
0.04
|
|||||
|
6209
|
45
|
1.7717
|
-0.0005
|
85
|
3.3465
|
-0.0005
|
19
|
0.748
|
0.04
|
|||||
|
6210
|
50
|
1.9685
|
-0.0005
|
90
|
3.5433
|
-0.0006
|
20
|
0.7874
|
0.04
|
|||||
|
6211
|
55
|
2.1654
|
-0.0006
|
100
|
3.937
|
-0.0006
|
21
|
0.8268
|
0.06
|
|||||
|
6212
|
60
|
2.3622
|
-0.0006
|
110
|
4.3307
|
-0.0006
|
22
|
0.8661
|
0.06
|
|||||
|
6213
|
65
|
2.5591
|
-0.0006
|
120
|
4.7244
|
-0.0006
|
23
|
0.9055
|
0.06
|
|||||
|
6214
|
70
|
2.7559
|
-0.0006
|
125
|
4.9213
|
-0.0008
|
24
|
0.9449
|
0.06
|
|||||
SXM bearings are widely used in mining,steel mill,cement,wood pellet, petroleum,coal, metallurgy, paper,chemical engineering machinery,pory machinery and other industries,and they were approved to be replaced S'K'F, F'A'G, T'I'M'K'E'N etc.
