- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
CM4A
-
Product name:
-

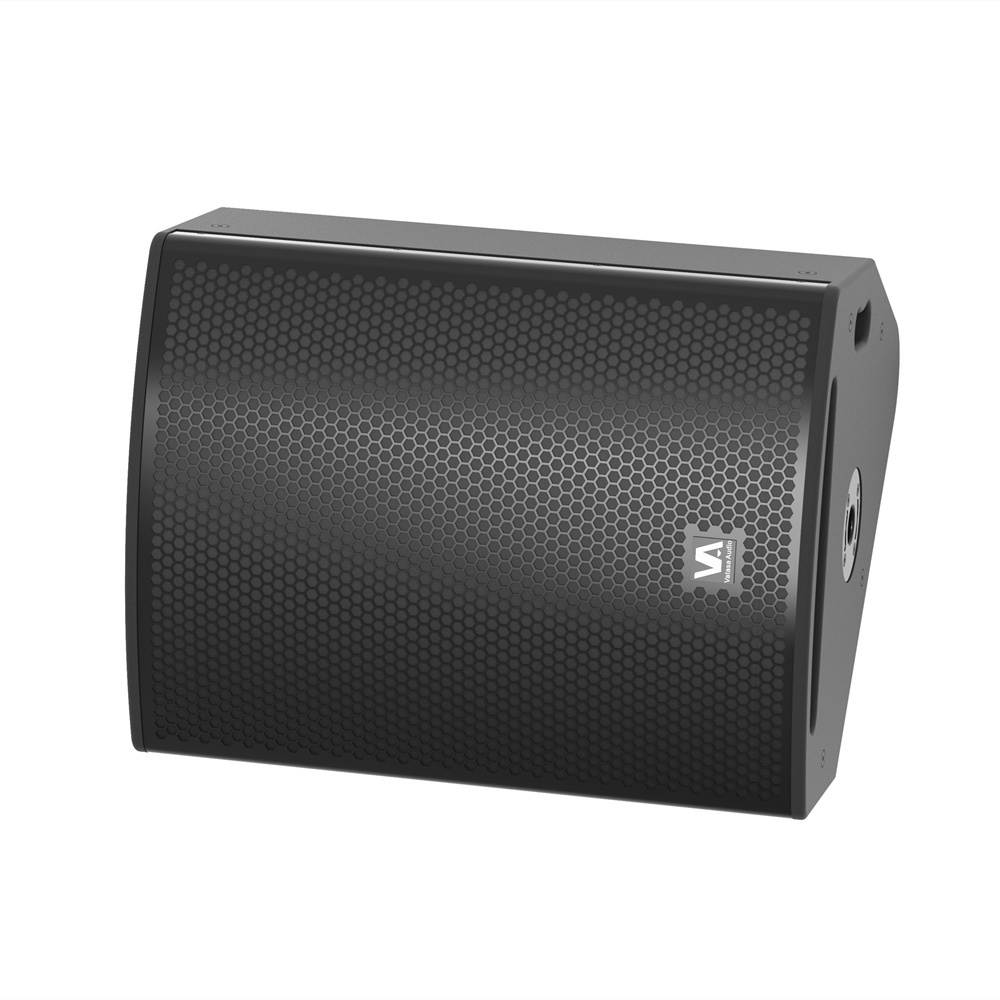

Professional Active 12 Inch Coaxial Stage Monitor Speakers
-
Type:
-
active
-
Frequency Response:
-
60Hz-19kHz 55Hz-20kHz(-10dB)
-
Power(AES/PERK):
-
400W/1600W
-
Directivity:
-
80°(w)x80°(h)
-
SPL(AES/PERK):
-
124dB/130dB
-
Feather:
-
Active,Coaxial
-
Speaker driver:
-
LF 1x12" + HF 1x3"(compression)
-
G.W:
-
22KG
-
Application:
-
Stage, touring perfomance, concert, bar
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VA
-
Model Number:
-
CM4A
-
Product name:
-
Professional Active 12 Inch Coaxial Stage Monitor Speakers
-
Type:
-
active
-
Frequency Response:
-
60Hz-19kHz 55Hz-20kHz(-10dB)
-
Power(AES/PERK):
-
400W/1600W
-
Directivity:
-
80°(w)x80°(h)
-
SPL(AES/PERK):
-
124dB/130dB
-
Feather:
-
Active,Coaxial
-
Speaker driver:
-
LF 1x12" + HF 1x3"(compression)
-
G.W:
-
22KG
-
Application:
-
Stage, touring perfomance, concert, bar
Product Description
Professional Active 12 Inch Coaxial Stage Monitor Speakers
Specification
|
Physical data
|
|
|
|
Connector
|
XLR-F/M
|
|
|
Cabinet material
|
18mm plywood
|
|
|
Finish
|
Black polyurea paint
|
|
|
G.W
|
22KG
|
|
|
Package size(l*w*h)
|
640*455*461mm
|
|
|
AC main power
|
|
|
|
Power handling
|
100-240V±10%,50-60Hz
|
|
|
Input voltage
|
90V-260V AC
|
|
|
Output nominal power
|
2x800W
|
|
|
Input/Output interface
|
Power con
|
|
|
Audio specification
|
|
|
|
Voltage gain
|
35dB
|
|
|
Input sensitivity@8Ω
|
1.07V/2.8dBu
|
|
|
In/Out interface
|
XLR-F/M
|
|
|
Frequency response
|
20Hz-33kHz(0/-1dB)@1W,8Ω
|
|
|
Signal to noise ratio
|
>119dB(20Hz-20kHz,A weighted)
|
|
|
Damping coefficient
|
>10000@100Hz
|
|
|
DSP specification
|
|
|
|
DSP passage
|
1 in/2 out
|
|
|
Frequency response
|
20Hz-20kHz(-0.5dB)
|
|
|
Input maximum voltage
|
8.2V/+20dBu
|
|
|
Output maximum voltage
|
4.1V/+14.3dBu
|
|
|
THD+N
|
<0.02%(20Hz-20kHz)
|
|
