Quick Details
-
Brand:
-
xinteng
-
Application:
-
LED lights, Camera flash, Small UAVs
-
Color:
-
silver
-
Material:
-
C3604
-
Plunger:
-
Brass C3604,Plating 3u"Au over 80~180u" Ni.
-
Barrel:
-
Brass C3604,Plating 3u"Au over 80~180u" Ni
-
Spring:
-
SUS 304,Plating 1u"
-
Srinforce:
-
50±10at 0.6 workinstroke.
-
Features:
-
Realize signal transmission function
-
Current:
-
2A
-
Plastic High temperature resistance:
-
260℃
-
Waterproof:
-
IP67
-
Mechanical life:
-
10000 cycle Min
-
Voltage:
-
12V
Quick Details
-
Model Number:
-
RM1094
-
Type:
-
Magnetic connectors
-
Place of Origin:
-
Guangdong, China
-
Brand:
-
xinteng
-
Application:
-
LED lights, Camera flash, Small UAVs
-
Color:
-
silver
-
Material:
-
C3604
-
Plunger:
-
Brass C3604,Plating 3u"Au over 80~180u" Ni.
-
Barrel:
-
Brass C3604,Plating 3u"Au over 80~180u" Ni
-
Spring:
-
SUS 304,Plating 1u"
-
Srinforce:
-
50±10at 0.6 workinstroke.
-
Features:
-
Realize signal transmission function
-
Current:
-
2A
-
Plastic High temperature resistance:
-
260℃
-
Waterproof:
-
IP67
-
Mechanical life:
-
10000 cycle Min
-
Voltage:
-
12V
Products Description
|

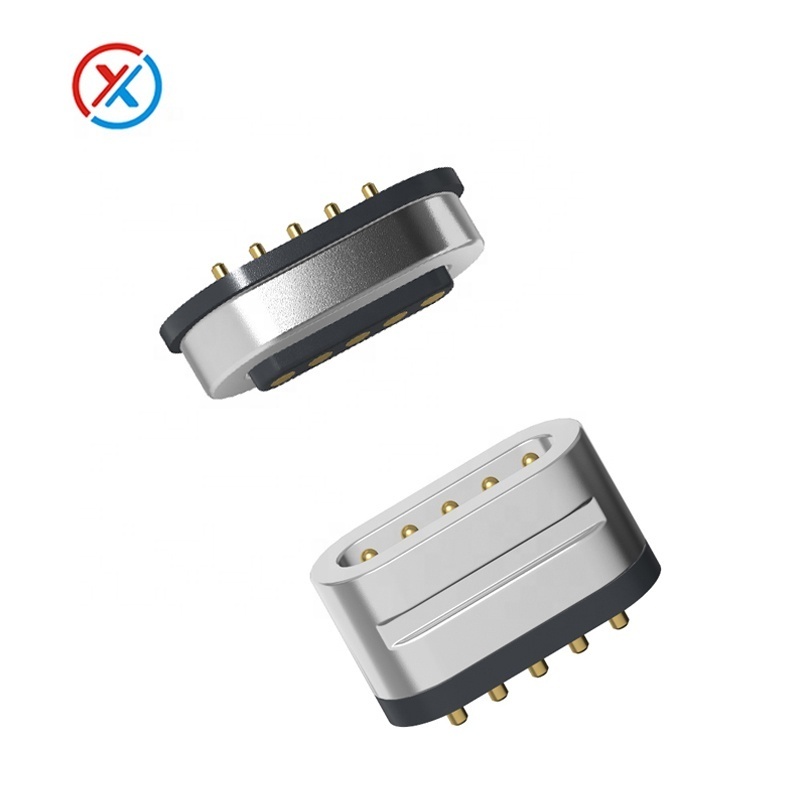

Magnetic terminal connectors Materials
|
|
|
|
Plunger
|
Brass C3604,Plating 3u"Au over 80～180u" Ni
|
|
|
Barrel
|
Brass C3604,Plating 3u"Au over 80～180u" Ni
|
|
|
Spring
|
SUS 304，Plating 1u"
|
|
|
Housing
|
Bkack HTN+30GF UL94 V-0
|
|
|
Mechanical
|
20,000 CyclesSUS 304，Plating 1u"
|
|
|
Srinforce
|
50±10at 0.6 workinstroke
|
|
|
Full stroke
|
0.6mm
|
|
|
Mechanical life
|
10000cycle Min
|
|
|
Electrical
|
|
|
|
Rated current & voltage
|
DC 12V，2A Max
|
|
|
|
Contact resistance 50mΩ max At working height
|
|
The magnetic connector is a combination of magnets added on the basis of the pogo pin connector, and the use of NdFeB permanent magnet ensures a stable and reliable connection between male and female. The magnetic connector makes up for the advantages of convenient plugging, safety, compact size, easy cleaning, and lateral pull-out that traditional connectors lack, and truly realizes 100% automatic positioning, automatic connection, quick plugging and unplugging, separation by external force, and forced disconnection will not damage the connection port of the device. It has been rapidly promoted and used in many fields.
