Produce speed：600PCS/h（10grams）
Produce material：10-50grams sample filament or 3d pen filament
Packing Material：0.55 PVC material ties or PE material ties
Packaging cable tie length and the Number of circle：can adjust（minimum value :160mm）
Ligation diameter：＜25 mm
Winding number of circle：Can Settings by clients need
Winding distance：55-80mm
Suitable Material:≤Ф1.75mm
Voltage ：210-240V 5A 50HZ (please be carefully and keeping safety)
Air Pressure：0.4-0.6Mpa （Pure compressed air, no water, no oil）
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2021
-
Name:
-
Automatic winding machine
-
Application:
-
produce 3D pen filament or sample filament
-
Function:
-
Automatic produce,put,cross,cut,tie wires
-
Voltage:
-
220V
-
Model:
-
YASIN-CRO-L
-
Certification:
-
ISO
-
Power:
-
300W
-
Weight:
-
150kg
-
Machinery Capacity:
-
600pcs/hrs
-
Plate Type:
-
Screen Printer
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
YASIN
-
Weight (KG):
-
150
-
Marketing Type:
-
New Product 2021
-
Name:
-
Automatic winding machine
-
Application:
-
produce 3D pen filament or sample filament
-
Function:
-
Automatic produce,put,cross,cut,tie wires
-
Voltage:
-
220V
-
Model:
-
YASIN-CRO-L
-
Certification:
-
ISO
-
Power:
-
300W
-
Weight:
-
150kg
-
Machinery Capacity:
-
600pcs/hrs
-
Plate Type:
-
Screen Printer
Product Description
3D Printing Material

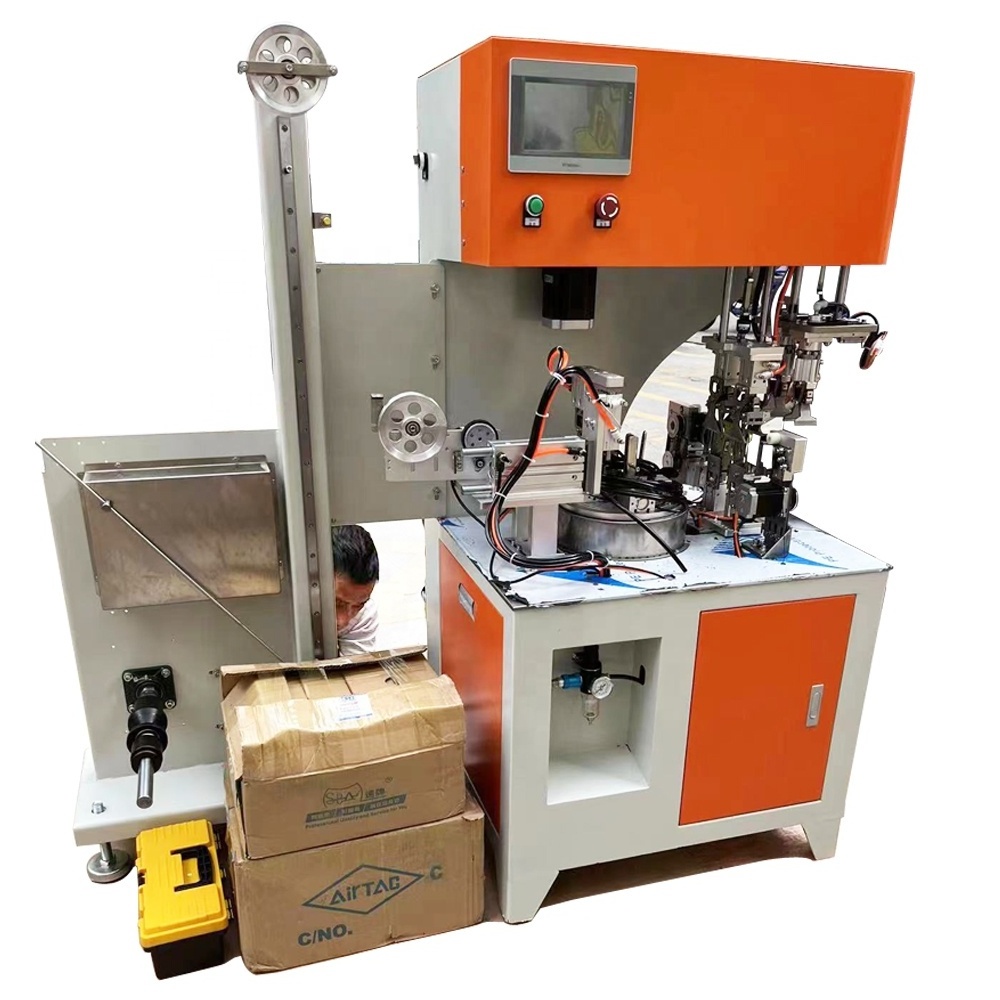

Automate 3D Filament Winding Machine for Put,Cut,Cross,tie 3D Pen Filament or Sample Filament
1,Fully-Automatic 3D pen filament and sample 3d filament winding machine using the excellent intelligent technology and precision
to manufacturing. It can be 100% accurate to all output products and the ideal parameters set by the user, and at the same time,
it has automatic release line. Line, winding, cable tie with integrated operation process, without any manual assistance, just
should setting the corresponding parameters before operating,
2,The high efficiency of work for the automate filament winding machine is more than 10 times faster than manual work. It is
saving the huge labor force and the end of history for hurting fingers of human being, also greatly saves the high budget of using
labor, by this way, you will get more competitive price for 3d pen filament and samples filament than others in the market.
to manufacturing. It can be 100% accurate to all output products and the ideal parameters set by the user, and at the same time,
it has automatic release line. Line, winding, cable tie with integrated operation process, without any manual assistance, just
should setting the corresponding parameters before operating,
2,The high efficiency of work for the automate filament winding machine is more than 10 times faster than manual work. It is
saving the huge labor force and the end of history for hurting fingers of human being, also greatly saves the high budget of using
labor, by this way, you will get more competitive price for 3d pen filament and samples filament than others in the market.
Characters;
1.The machine is controlled by LCD screen display. Speed of winding cable, number of circle can be set up at random according to
users' requirement.
2,This machine can display actual production quantity at any time, also set up quantity of each carton. When the quantity reach
setting quantity, machine will automatically alarm and shut down.
3,As one of the life style for the modern humans, the high efficiency, intelligence, environmental protection and convenient
property is accepted and loved by more and more people.Making the users to maximize benefits at a lower budget
users' requirement.
2,This machine can display actual production quantity at any time, also set up quantity of each carton. When the quantity reach
setting quantity, machine will automatically alarm and shut down.
3,As one of the life style for the modern humans, the high efficiency, intelligence, environmental protection and convenient
property is accepted and loved by more and more people.Making the users to maximize benefits at a lower budget
Technical Parameter
|
Product Name :
|
Full-Automatic Sample Filament and 3D Pen Filament winding machine
|
|
Model No :
|
YASIN-CRO-L
|
|
The Finished Filment Appearance:
|
Circle with two tie
|
|
Produce Speed:
|
600pieces /h
|
|
Finished Filament Circle Diameter:
|
80mm
|
|
Build Volume for Filament:
|
10-50g
|
|
Finished Tie Filament Diameter:
|
45mm
|
|
Sutable Tie for Packaging:
|
PVC Cable Ties
|
|
Filament Front Part Stays Long:
|
≤50mm
|
|
The End of Long for The Filament:
|
≥50mm
|
|
Main Motor:
|
Servo motor and Stepping motor
|
|
Voltage Request:
|
110-220V /5A
|
|
Aerostatic Press Machine:
|
Normal Aerostatic Press Machine
|
|
Atmospheric Pressure request
|
0.4-0.6Mpa
|
|
Machine Size :
|
155*70*160cm
|
|
Packages Size :
|
160*77*165cm
|
|
Net Weight :
|
150kgs
|
|
Gross Weight :
|
250kgs
|
Product packaging
Packing details,
* Foam + Plastic filament winding machine + Carton box + International standard Export wooden box
