- Product Details
- {{item.text}}
Quick Details
-
Power:
-
20.5kW/2200rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
changlin
-
Maximum Digging Height:
-
3740mm
-
Maximum Digging Depth:
-
2620mm
-
Machine Weight:
-
2180 kg
-
Max Digging Radius:
-
4480mm
-
Rated Speed:
-
2.25km/h
-
Product name:
-
Mini Excavator
-
Machine weight:
-
2180 kg
-
Width of bucket:
-
555 mm
-
Engine power:
-
20.5/2200kW/rpm
-
Traveling speed:
-
2.25km/h
-
Largest traction:
-
19.3kN
-
Slewing speed of platform:
-
10~12.5rpm
-
Fuel tank capacity:
-
29L
-
Hydraulic oil tank capacity:
-
38L
Quick Details
-
Operating Weight:
-
2ton, 1.8Ton, 1.5TON
-
Bucket capacity:
-
0.09cbm, 0.09m³
-
Engine Brand:
-
Famous brands
-
Power:
-
20.5kW/2200rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
changlin
-
Maximum Digging Height:
-
3740mm
-
Maximum Digging Depth:
-
2620mm
-
Machine Weight:
-
2180 kg
-
Max Digging Radius:
-
4480mm
-
Rated Speed:
-
2.25km/h
-
Product name:
-
Mini Excavator
-
Machine weight:
-
2180 kg
-
Width of bucket:
-
555 mm
-
Engine power:
-
20.5/2200kW/rpm
-
Traveling speed:
-
2.25km/h
-
Largest traction:
-
19.3kN
-
Slewing speed of platform:
-
10~12.5rpm
-
Fuel tank capacity:
-
29L
-
Hydraulic oil tank capacity:
-
38L

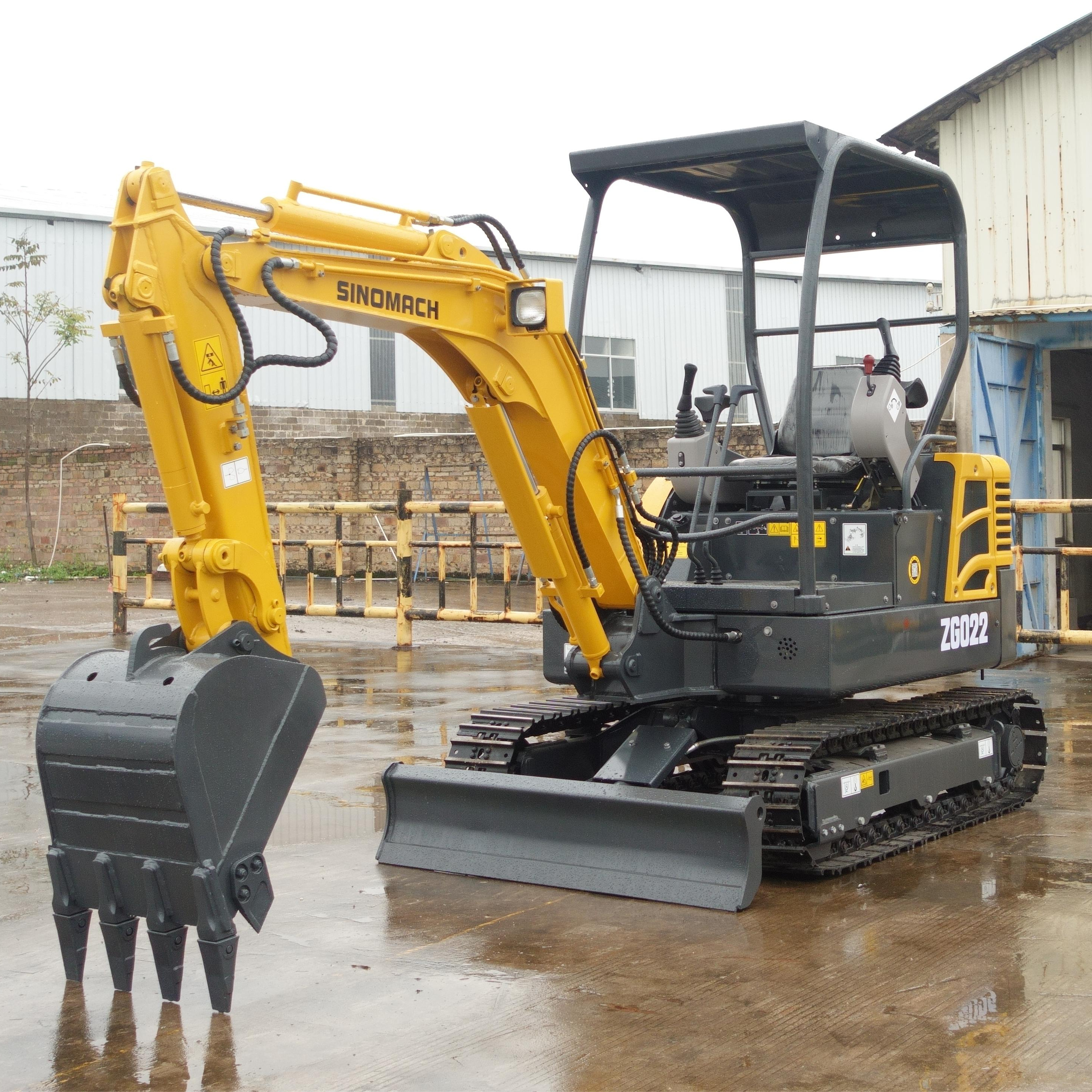

Mini excavator ZG022
Gear pump, Yuchai multitandem valveLKC Traveling motor,Poclain swing motor Standard carport without AC;rubber track
Engines
using Kubota engine,low noise, low vibration
of environmental protection design
Large arm swing
wide working range,simple to operate
Bulldozer board
lengthened,very thick and strong
Electronic display screen
clear data display,easy to work
Scope of Application:
CHANGLIN mini excavator perfect for trenching work, digging out garden beds, lifting fogs to cut for firewood or digging holes to plant trees, the list of jobs is endless. You can carry these fantastic little machines in a small trailer or the back of the pick up and they are designed to get to those hard to reach places.
|
Basic parameter
|
|
|
|
Machine weight
|
2180kg
|
|
|
Bucket capacity
|
0.09m³
|
|
|
Width of bucket
|
555mm
|
|
|
Performance parameter
|
|
|
|
Engine model
|
Laidong
|
|
|
Engine power
|
20.5/2200kw/rpm
|
|
|
Max. Gradeability
|
30°
|
|
|
Max. digging force of arm
|
9.6kN
|
|
|
Max, digging force of bucket
|
14.9kN
|
|
|
Traveling speed
|
2.25km/h
|
|
|
Largest traction
|
19.3kN
|
|
|
Operating parameter
|
|
|
|
Max. digging height
|
3740mm
|
|
|
Max. digging depth
|
2620mm
|
|
|
Max. digging radius
|
4480mm
|
|
|
Max. digging radius on ground level
|
4390mm
|
|
|
Max. dumping height
|
2250mm
|
|
|
Min. slewing radius
|
2065mm
|
|
|
Max. vertical digging depth
|
2400mm
|
|
|
Transportation dimension
|
|
|
|
Overall length
|
4120mm
|
|
|
Overall width
|
1300mm
|
|
|
Overall height
|
2290mm
|
|
ACCESSORIES
You can install more and more accessories to discover more functions of the mini excavator.
Please click the image for more information
Every year, we will attend exhibition all over the world. Hope we can have a face to face meeting and build a good business relationship.
Our Team
1. OEM Manufacturing welcome: Product, Package...
2. Some spare parts are provide to you each order at your requests for aftersales service, and any other extra parts are sold at EXW price.
3. Sunny after-sales service. Any problem, we will provide solution to solve it asap.
4. All of our products approved teh CE certificate.
2. Some spare parts are provide to you each order at your requests for aftersales service, and any other extra parts are sold at EXW price.
3. Sunny after-sales service. Any problem, we will provide solution to solve it asap.
4. All of our products approved teh CE certificate.
24-hour remote on-line service.
We owns an extraordinary service team. We’re realizing the localized overseas service, which covers digitalized service & training methods, 24-hour remote on-line service, and on-site service and serve our customers seamlessly.
After sales warranty services provided:
- A Worldwide network of agents and subsidiaries are able to serve you on site.
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- 48-hour warranty parts ready for delivery free of charge through DHL, TNT
- By shooting video, guide the troubleshooting clearly and efficiently
After warranty service:
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- By shooting video, guide the troubleshooting clearly and efficiently
- A Worldwide network of agents and subsidiaries are able to serve you on site.
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- 48-hour warranty parts ready for delivery free of charge through DHL, TNT
- By shooting video, guide the troubleshooting clearly and efficiently
After warranty service:
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- By shooting video, guide the troubleshooting clearly and efficiently
Our product has approved EURO5 and EPA4 certificate. It's hot selling in European and North American market.
FAQ
Q1.Are you original manufacturer?
A:Yes, we Changlin are an official leading manufacturer in construction machinery, We set up joint ventures with korean and japanese company in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q3. Which incoterms 2021 can we work?
A: FOB, CFR, CIF are the usual trade terms
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link.
A:Yes, we Changlin are an official leading manufacturer in construction machinery, We set up joint ventures with korean and japanese company in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q3. Which incoterms 2021 can we work?
A: FOB, CFR, CIF are the usual trade terms
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link.
