Quick Details
-
Brand Name:
-
MUST / OEM
-
Model Number:
-
PV-35-6k
-
Input Voltage:
-
24/48VDC 230VAC
-
Output Voltage:
-
220V/230V/240VAC
-
Output Current:
-
80-100A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
620*385*215mm
-
Certificate:
-
CE, IEC, CE
-
Warranty:
-
1 year by standard, 12 Months
-
Weight:
-
41KG
-
Display:
-
LCD+LED Display
-
Output waveform:
-
Pure Sine Wave Output
-
Protection:
-
Overload
-
Color:
-
Silver
-
Peak power:
-
3 Times
-
Frequency:
-
50Hz/60Hz
-
Application:
-
Solar Power System Home
-
Efficiency:
-
90%-93%
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/DC Converters, DC/AC Inverters
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MUST / OEM
-
Model Number:
-
PV-35-6k
-
Input Voltage:
-
24/48VDC 230VAC
-
Output Voltage:
-
220V/230V/240VAC
-
Output Current:
-
80-100A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
620*385*215mm
-
Certificate:
-
CE, IEC, CE
-
Warranty:
-
1 year by standard, 12 Months
-
Weight:
-
41KG
-
Display:
-
LCD+LED Display
-
Output waveform:
-
Pure Sine Wave Output
-
Protection:
-
Overload
-
Color:
-
Silver
-
Peak power:
-
3 Times
-
Frequency:
-
50Hz/60Hz
-
Application:
-
Solar Power System Home
-
Efficiency:
-
90%-93%

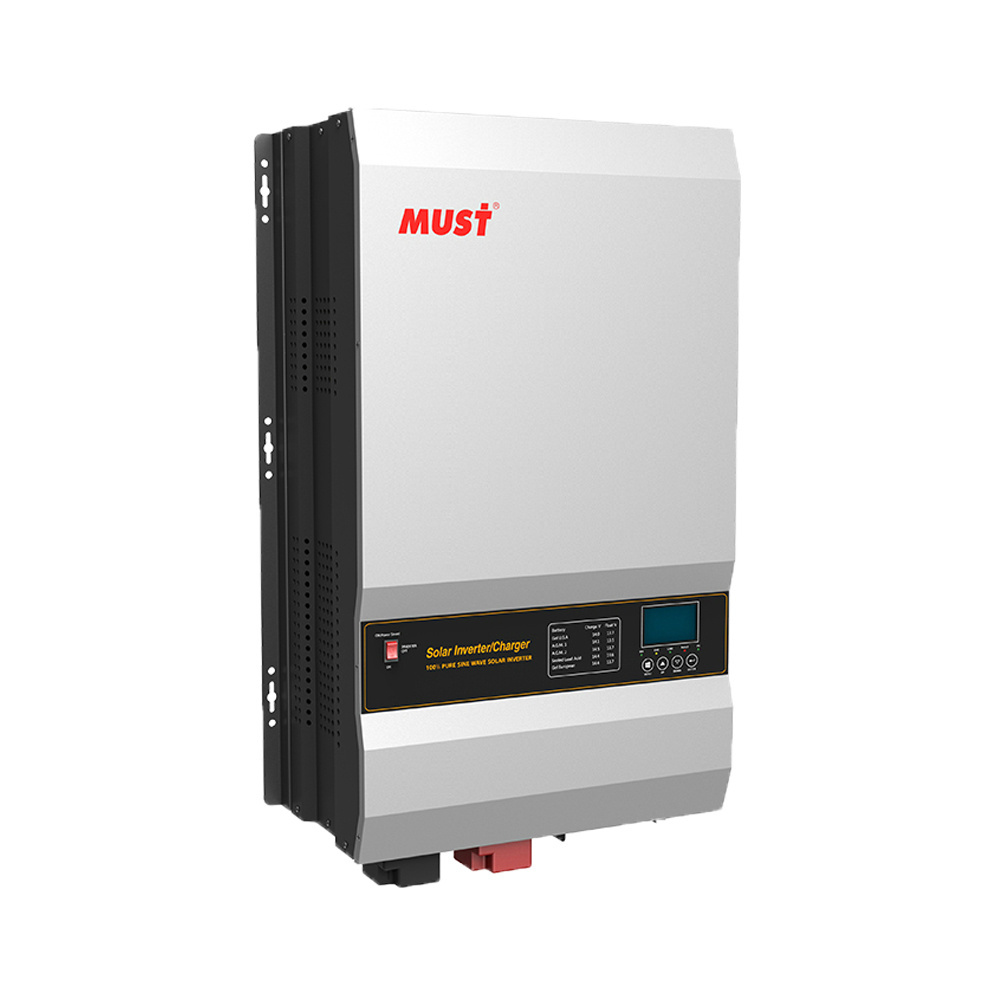

Low frequency 6000w 8000w 10000w 12v 24v 48v dc 220VAC pure sine wave MPPT Inverter
Low frequency 6000w 8000w 10000w 12v 24v 48v dc 220VAC pure sine wave MPPT Inverter
Product Description
| MODEL | PV35-4K | PV35-5K | PV35-6K | PV35-8K | PV35-10K | PV35-12K | |
| Nominal Battery System Voltage | 24V | 48V | 48V | 48V | 48VDC | 48VDC | 48VDC |
| Rated Power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | |
| Surge Rating (20ms) | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | |
| Waveform | Pure sine wave/ same as input (bypass mode) | ||||||
| Nominal Output Voltage RMS | 220V/230V/240VAC(+/-10% RMS) | ||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | ||||||
| Inverter Efficiency(Peak) | >85% | >88% | |||||
| Line Mode Efficiency | >95% | ||||||
| Power Factor | 0.8 | ||||||
| Typical Transfer Time | 10ms(max) | ||||||
| Voltage | 230VAC | ||||||
| Selectable Voltage Range | 154~272VAC(For Personal Computers) | ||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||||
| Minimum Start Voltage | 20.0VDC/21.0VDC for24VDC mode (40.0VDC/42.0VDC for 48VDC mode) | ||||||
| Low Battery Alarm | 21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode) | ||||||
| Low Battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode) | ||||||
| High Voltage Alarm | 32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode) | ||||||
| High Battery Voltage Recover | 31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode) | ||||||
| Idle Consumption-Search Mode | <25W when power saver on | <25W when power saver on | |||||
| Charger AC Input Breaker Rating | 40A | 40A | 50A | 80A | 80A | 80A | |
| Overcharge Protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | ||||||
| Maximum Charge Current | 65A | 40A | 50A | 60A | 70A | 80A | 100A |
| Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||
| Input Voltage Waveform | Sine wave (grid or generator) | ||||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||
| Overload Protection (SMPS Load) | Circuit breaker | ||||||
| Output Short Circuit Protection | Circuit breaker | ||||||
| Bypass Breaker Rating | 40A | 63A | 63A | 63A | |||
| Max Bypass Current | 40Amp | 80Amp | |||||
| Maximum PV Charge Current | 60A | 60A(120A optional) | |||||
| DC Voltage | 24V/48V Auto work | 48V | |||||
| Maximum PV Array Power | 1600W | 3200W | 3200W | 3200W | 3200W(6400W for 120A optional) | ||
| MPPT Range @ Operating Voltage(VDC) | 32-145VDC for 24V mode,64-147V for 48V mode | 64~147VDC | |||||
| Maximum PV Array Open Circuit Voltage | 147VDC | ||||||
| Maximum Efficiency | >98% | ||||||
| Standby Power Consumption | <2W | ||||||
| Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | |||||
| Net Weight (Solar CHG) kg | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | |
| Shipping Dimensions(W*H*D) | 755*515*455mm | 884*618*443mm | |||||
| Shipping Weight (Solar CHG) kg | 56 | 61 | 64 | 89+2.5 | 95.5+2.5 | 95.5+2.5 | |
| Operation Temperature Range | 0°C to 40°C | ||||||
| Display | LED+LCD | ||||||
