Quick Details
-
Panel Size:
-
customized size
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P5 P4 P3 P2.5 P2
-
Display Function:
-
Video
-
LED chip:
-
Epistar
-
Certificate:
-
CE ROHS FCC
-
Warranty:
-
2 Years
-
Life span:
-
100000hours
-
Brightness:
-
1000cd/sqm
-
Screen Dimension:
-
Custom Made
-
Cabinet size:
-
customized size
-
Product name:
-
Factory Direct Sale P5 P4 P3 P2.5 P2 indoor led display panel
-
Pixel Pitch:
-
5mm 4mm 3mm 2.5mm 2mm
Quick Details
-
Application:
-
indoor
-
Brand Name:
-
LCCL
-
Color:
-
full color
-
Panel Size:
-
customized size
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P5 P4 P3 P2.5 P2
-
Display Function:
-
Video
-
LED chip:
-
Epistar
-
Certificate:
-
CE ROHS FCC
-
Warranty:
-
2 Years
-
Life span:
-
100000hours
-
Brightness:
-
1000cd/sqm
-
Screen Dimension:
-
Custom Made
-
Cabinet size:
-
customized size
-
Product name:
-
Factory Direct Sale P5 P4 P3 P2.5 P2 indoor led display panel
-
Pixel Pitch:
-
5mm 4mm 3mm 2.5mm 2mm
Factory Direct Sale P5 P4 P3 P2.5 P2 indoor led display panel

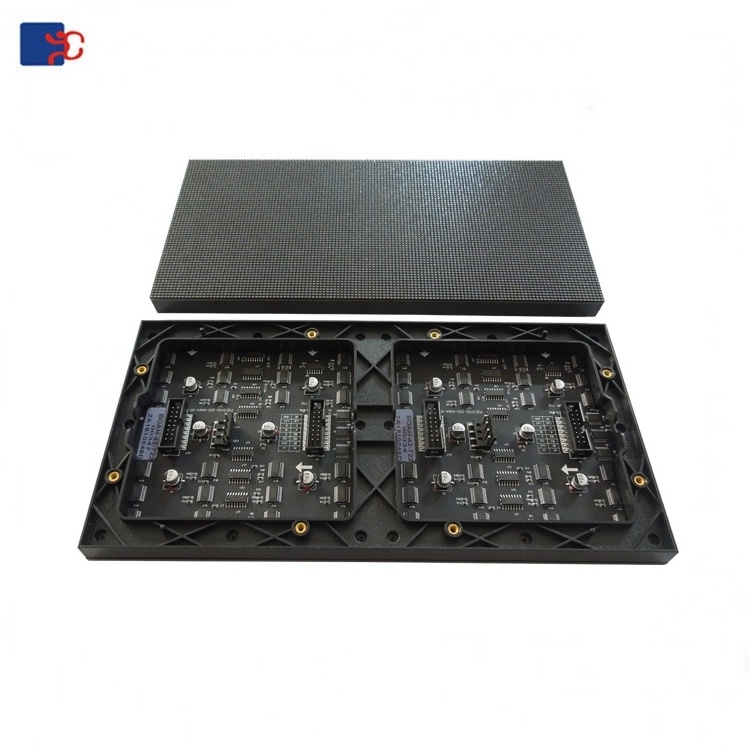

P3 SMD indoor full color module technical parameters
|
P3 LED Display Pixel Pitch |
3mm |
|
Pixel Composition |
SMD2121 |
|
Pixel Density |
111111/m² |
|
Module Size(W*H) |
192mm*192 mm |
|
Resolution of Module |
64x64(dot) |
|
Color Capability |
4.4 trillion |
|
Brightness |
1000cd/m² |
|
View Angle (V/H) |
140°(V)/140°(H) |
|
The Best View Distance |
≥3 Meters |
|
Driving Method |
1/32 scanning |
|
Control Way |
Real Pixel |
|
Maximum Power Consumption |
500 w/m² |
|
Average Power Consumption |
200 w/m² |
|
Frame Frequency |
≥60 Hz/s |
|
Refresh Rate |
≥400 Hz/s |
|
Working Voltage |
AC 220V±10% 50Hz AC 110V±10% 60Hz |
|
Operating Temperature |
-20°C~+60°C |
|
Life Span |
>100, 000 Hours |
Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving .
Application:
Outdoor full color LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, antistatic, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
We Can design and manufacture as the customer’s requirement
