Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TSTY
-
Model Number:
-
S11, S13
-
Output Voltage:
-
other
-
Product name::
-
power transformer
-
Certification::
-
ISO9001
-
Type::
-
Oil-filled Transformer
-
Frequency::
-
50/60Hz
-
Material::
-
Copper / Aluminium
-
Transformer type:
-
S11 Oil-immersed Transformer
-
Standard::
-
IEC / GB
-
Warranty::
-
2 Years
-
Vector group::
-
Dyn11 / Yyn0
-
Package::
-
Wooden Case
Quick Details
-
Usage:
-
Power
-
Phase:
-
Three
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TSTY
-
Model Number:
-
S11, S13
-
Output Voltage:
-
other
-
Product name::
-
power transformer
-
Certification::
-
ISO9001
-
Type::
-
Oil-filled Transformer
-
Frequency::
-
50/60Hz
-
Material::
-
Copper / Aluminium
-
Transformer type:
-
S11 Oil-immersed Transformer
-
Standard::
-
IEC / GB
-
Warranty::
-
2 Years
-
Vector group::
-
Dyn11 / Yyn0
-
Package::
-
Wooden Case

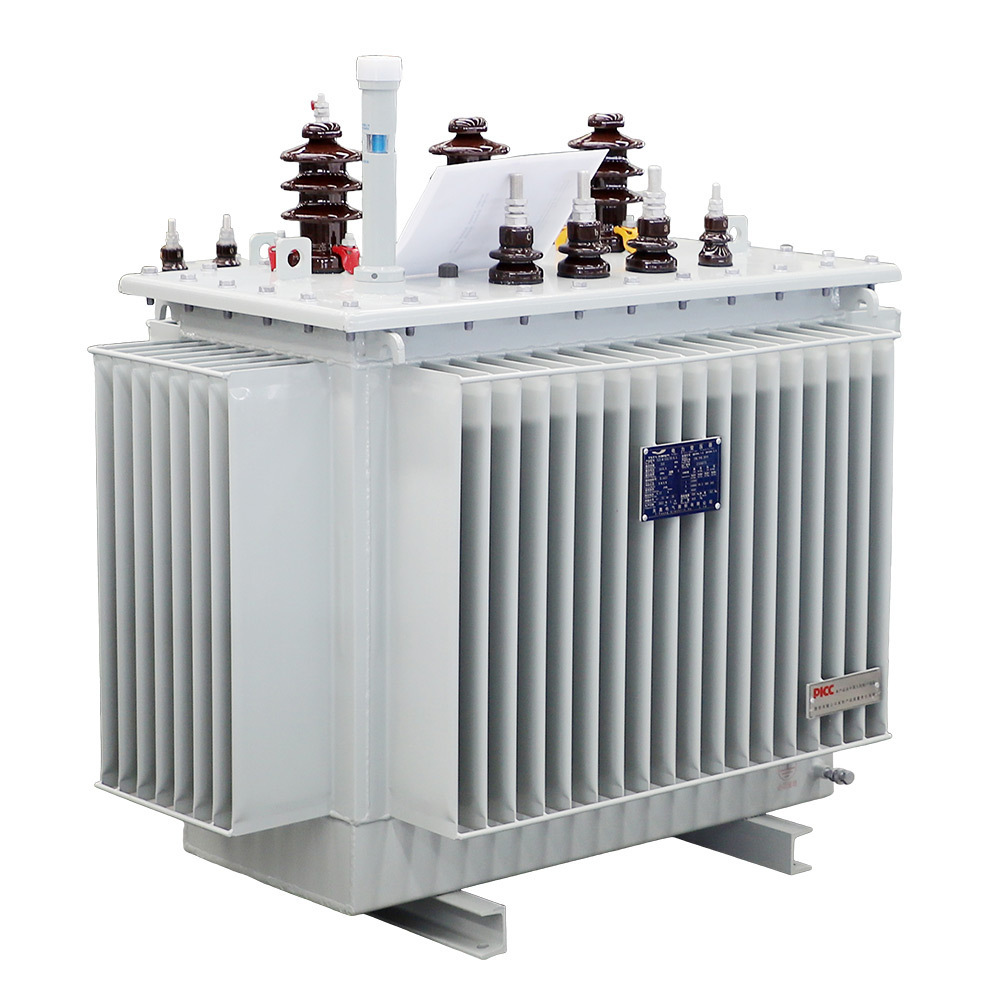

Products Description
OIL IMMERSED TRANSFORMERS
Main series:
S9-M Type Oil lmmersed Power Transforme,S11 Electric Oil Immersed PowerTransformer,S11-M.ZT On-load Tap Changed(OLTC)Power Transformer with Adjustable Capacity,S13 Electric Oillmmersed Power Transformer,S13-MRL Series Three-dimensional Wound Core Power Transformer
The
S9-M type transformer
introduces
new international technology, adopts a fully oil-filled sealed type, without an oil conservator, and the transformer changes its oil body due to changes in temperature and load,which is completely adjusted bythe flexibility of the transformer tank. The no-load loss of the transformer is 30% lower than that of the S7 type,and it has strong lightning resistance and short-circuit resistance.The energy-saving effect is more better, and the outer size of the transformer is compact.
Model Description:
|
Technical Parameter for S11 Series 6kv - 11kv No-load Voltage Regulation Transformers
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
Rated Capacity (KVA)
|
Voltage Combination
|
|
|
Connection Group Symbol
|
No-load Loss R(W)
|
Load Loss R(W)
|
Impedance Voltage(%)
|
No-load Current (%)
|
L*W*H (mm)
|
|||||||||||||||||
|
|
High Voltage(KV)
|
Tapping Range of High Voltage
|
Low Voltage (KV)
|
|
|
|
|
|
|
|||||||||||||||||
|
30
|
6 6.3 10 10.5 11
|
±5% ±2x2.5%
|
0.4
|
480480Dyn11 Yzn11 Yyn0
|
100
|
630/600
|
4
|
2.8
|
980*735*1145
|
|||||||||||||||||
|
50
|
|
|
|
|
130
|
910/870
|
|
2.5
|
1017*758*1205
|
|||||||||||||||||
|
63
|
|
|
|
|
150
|
1090/1040
|
|
2.4
|
1035*785*1285
|
|||||||||||||||||
|
80
|
|
|
|
|
180
|
1310/1250
|
|
2.2
|
1065*800*1290
|
|||||||||||||||||
|
100
|
|
|
|
|
200
|
1580/1500
|
|
2.1
|
1072*820*1305
|
|||||||||||||||||
|
125
|
|
|
|
|
240
|
1890/1800
|
|
2
|
1155*1105*1310
|
|||||||||||||||||
|
160
|
|
|
|
|
280
|
2310/2200
|
|
1.9
|
1235*850*1535
|
|||||||||||||||||
|
200
|
|
|
|
|
340
|
2730/2600
|
|
1.8
|
1282*860*1557
|
|||||||||||||||||
|
250
|
|
|
|
|
400
|
3200/3050
|
|
1.7
|
1310*940*1605
|
|||||||||||||||||
|
315
|
|
|
|
|
480
|
3830/3650
|
4
|
1.6
|
1465*1120*1915
|
|||||||||||||||||
|
400
|
|
|
|
|
570
|
4520/4300
|
|
1.5
|
1440*1165*1725
|
|||||||||||||||||
|
500
|
|
|
|
|
680
|
5410/5150
|
|
1.4
|
1510*1250*1845
|
|||||||||||||||||
|
630
|
|
|
|
|
810
|
6200
|
4.5
|
1.3
|
1650*1140*1920
|
|||||||||||||||||
|
800
|
|
|
|
|
980
|
7500
|
|
1.2
|
2125*1175*2315
|
|||||||||||||||||
|
1000
|
|
|
|
|
1150
|
10300
|
|
1.1
|
2150*1380*2570
|
|||||||||||||||||
|
1250
|
|
|
|
|
1360
|
12000
|
|
1
|
2355*1485*2570
|
|||||||||||||||||
|
1600
|
|
|
|
|
1640
|
14500
|
|
0.9
|
2335*1750*2630
|
|||||||||||||||||
|
2000
|
|
|
|
|
1940
|
18300
|
5
|
0.4
|
1940*1400*1700
|
|||||||||||||||||
|
2500
|
|
|
|
|
2290
|
21200
|
|
0.4
|
2050*1480*1800
|
|||||||||||||||||
|
Note: The data in the table is subject to change as required.
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
Product Standard
+ IEC60076
+ GB/T 1094.1~2-1996 Power Transformer
+ GB/T 1094.3.5-2003 Power Transformer
+ GB/T6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers
Applicable Environment
+ High ambient temperature: +40℃+ Low ambient temperature: -25℃
+ Altitude: <1000m
+ Monthly average relative humidity: 90% (20℃)
+ Installation location: used in chemical plants, factories, remote places and harsh .
We can also customize according to your demand.
Product Details
Iron Core
The company has its own silicon steel sheet shearing line, the core is made of laser-scored high-conductivity silicon steel sheet---quality assurance and cost reduction.
Compared with similar products, no-load loss can be reduced by 4-6%.
Transformers
Cylindrical, foil, spiral, continuous and other structures ------ to meet the diversified needs of customers; the end angle ring effectively improves the coil characteristics under the surge voltage ----- to make the voltage distribution more uniform
Oil tank
35KV Fuel tank
The oil tank adopts barrel or bell-type structure ---- structure is more stable, the heat dissipation element adopts chip type radiator ----- better heat dissipation effect
Oil tank
11KV oil tank
The tank frame adopts the angle steel reinforced structure ---- to strengthen the mechanical strength, the production process adopts water pressure, air pressure, oil pressure three times to test the leakage ----- to ensure that the tank is not leaking.
Product Application
Oil-immersed transformers can be widely used in
power grids, industrial and mining enterprises, construction projects, oil fields, data centers, computer rooms and other places, both indoors and outdoors.
It is especially suitable for use in flammable, explosive and other places with high fire protection requirements and harsh environments. It can also be used for power and lighting in residential areas, commercial streets, industrial and mining enterprises and rural areas.
It is suitable for important places such as urban power grids, high-rise buildings, business centers, theaters, hospitals, hotels, tunnels, subways, underground power stations, stations, docks, airports, combined substations, etc.
Packaging and Shipping
Customer Case
