Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
/
-
Signal Interface:
-
V-by-One 8 lane , 51 pins Connector
-
Pixels:
-
V-by-One 8 lane , 51 pins Connector
-
Contrast Ratio:
-
4000:1 (Typ.) (TM)
-
Work Model:
-
ASV, Normally Black, Transmissive
-
Viewing angle:
-
88/88/88/88 (Typ.)(CR≥10)
-
Active Area:
-
1662.24(W)*941.96(H) *1.33(D) mm
-
Outline Size:
-
1662.24(W)*941.96(H) *1.33(D) mm
-
Pixel Format:
-
RGB Vertical Stripe
-
Weight:
-
4.74±0.24Kgs
-
Packaging Detial:
-
foma and wooden box
Quick Details
-
Type:
-
a-Si TFT-LCD, CELL
-
Display Size:
-
75 inch
-
Supplier Type:
-
Chinese factories directly
-
Place of Origin:
-
GUA
-
Brand Name:
-
/
-
Signal Interface:
-
V-by-One 8 lane , 51 pins Connector
-
Pixels:
-
V-by-One 8 lane , 51 pins Connector
-
Contrast Ratio:
-
4000:1 (Typ.) (TM)
-
Work Model:
-
ASV, Normally Black, Transmissive
-
Viewing angle:
-
88/88/88/88 (Typ.)(CR≥10)
-
Active Area:
-
1662.24(W)*941.96(H) *1.33(D) mm
-
Outline Size:
-
1662.24(W)*941.96(H) *1.33(D) mm
-
Pixel Format:
-
RGB Vertical Stripe
-
Weight:
-
4.74±0.24Kgs
-
Packaging Detial:
-
foma and wooden box
Specification
|
Application details
|
|
|
|
|
|
|||||
|
Usage
|
TV
|
|
Type
|
a-Si TFT-LCD, CELL
|
|
|||||
|
Model
|
JR745R3HA4K
|
|
Screen Size
|
75 inch
|
|
|||||
|
Stotage Temp
|
-20 ~ 60 °C
|
|
Opeating Temp
|
0 ~ 50 °C
|
|
|||||
|
Frame Rate
|
60Hz
|
|
Voltage Supply
|
12 V
|
|
|||||
|
Optical Details
|
|
|
|
|
|
|||||
|
Pixel Features
|
|
|
|
|
|
|||||
|
Pixel Format
|
3840(RGB)×2160, UHD
|
|
Arrangerment
|
RGB Vertical Stripe
|
|
|||||
|
Dot Pitch(mm)
|
0.14325×0.42975
|
|
Pixel Pitch(mm)
|
0.42975×0.42975 [59PPI]
|
|
|||||
|
Physical Size
|
|
|
|
|
|
|||||
|
Active Area(mm)
|
1650.24(W)×928.26(H)
|
|
Outline Dim(mm)
|
1662.24(W)×941.96(H)
|
|
|||||
|
Depth(mm)
|
1.33 (Typ.)
|
|
|
|
|
|||||
|
Outline Features
|
|
|
|
|
|
|||||
|
Form Shape
|
Flat Rectangle
|
Aspect Ratio
|
16:9 (H:V)
|
Plate Thickness(mm)
|
0.50+0.50 |
|||||
|
Other Features
|
|
|
|
|
|
|||||
|
Weight
|
4.74±0.24Kgs
|
|
Surface
|
Antiglare, Hard coating (2H)
|
|
|||||
|
Optical Details
|
|
|
|
|
|
|||||
|
Basic Information
|
|
|
|
|
|
|||||
|
Luminance(cd/m²)
|
0
|
|
Contrast Ratio
|
4000:1 (Typ.)
|
|
|||||
|
Viewing Angle
|
88/88/88/88 (Typ.)(CR≥10)
|
|
Response Time(ms)
|
8 (Typ.)(G to G)
|
|
|||||
|
Work Model
|
ASV, Normally Black, Transmissive
|
|
|
|
|
|||||
|
Color performance
|
|
|
|
|
|
|||||
|
White Chromaticity
|
Wx:0.273; Wy:0.297
|
|
Support Color
|
1.07B (8-bit + Hi-FRC)
|
|
|||||
|
Color Temperature
|
10360K
|
|
|
|
|
|||||
|
1931 Color Gamut
|
|
|
|
|
|
|||||
|
NTSC Ratio
|
73%
|
|
sRGB
|
99% coverage
|
|
|||||
|
Adobe RGB
|
77% coverage
|
|
DCI-P3
|
76% coverage
|
|
|||||
|
Rec.2020
|
55% coverage
|
|
Remarks
|
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
|
|
|||||
|
Other Information
|
|
|
|
|
|
|||||
|
Transmissivity
|
5.2% (Typ.)(with Polarizer)
|
|
Single Interface
|
V-by-One 8 lane , 51 pins Connector
|
|
|||||
|
One Box/pcs
|
16
|
|
One Pallet/pcs
|
/
|
|
|||||
Product Description
Packing & Delivery
NO.1 Test every panel

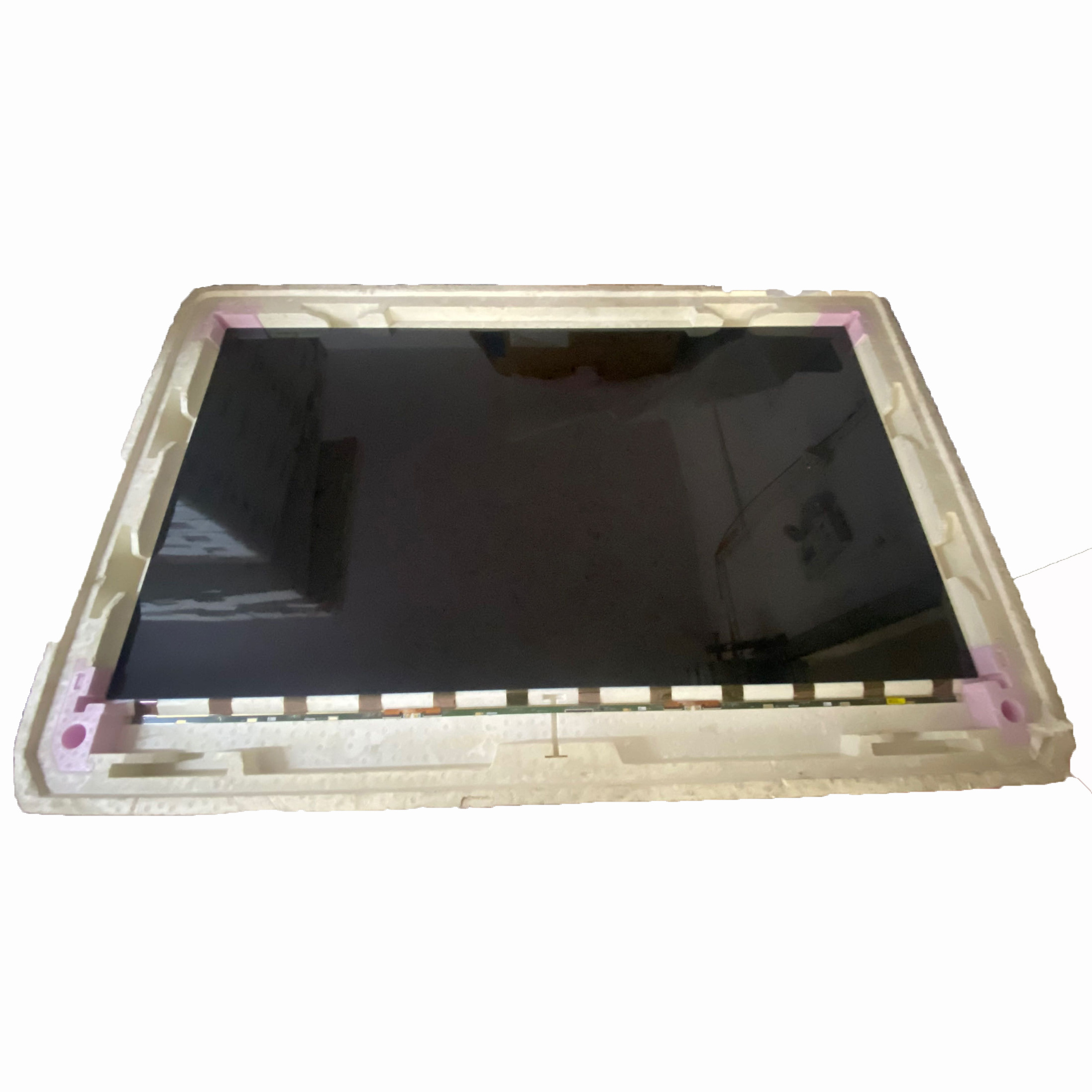

NO.2 Put in foam box
NO.3 Integration and packaging
NO.4 Pack it in a wooden box for protection
NO.5 Loading
NO.6 Sea ,land,air transportation
