Quick Details
-
Coil Number:
-
three coil
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
10mva power transformer
-
Standard:
-
IEC60076, GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV
-
CERTIFICATION:
-
Type test report/CESI/ CTQC
-
Transformer type:
-
Oil immersed transformer
-
Rated voltage:
-
6.3KV,10KV,11KV,13.2KV,13.8KV,15KV,20KV,22KV,33KV, 35KV
-
Rated capacity:
-
50,63,80,100,125,200,250,315,400,500,800,1000, 2000,2500, 3000,3500KVA
-
Vector group:
-
Dyn11,Dyn5,Yyno or others
-
Frequency:
-
50Hz or 60Hz
-
Advantage:
-
Best price & Best quality in China
-
CORPORATION::
-
KPLC/REA/PEC
-
Product type:
-
10mva power transformer
Quick Details
-
Usage:
-
Power
-
Phase:
-
Single or Three phase
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
three coil
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
10mva power transformer
-
Standard:
-
IEC60076, GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV
-
CERTIFICATION:
-
Type test report/CESI/ CTQC
-
Transformer type:
-
Oil immersed transformer
-
Rated voltage:
-
6.3KV,10KV,11KV,13.2KV,13.8KV,15KV,20KV,22KV,33KV, 35KV
-
Rated capacity:
-
50,63,80,100,125,200,250,315,400,500,800,1000, 2000,2500, 3000,3500KVA
-
Vector group:
-
Dyn11,Dyn5,Yyno or others
-
Frequency:
-
50Hz or 60Hz
-
Advantage:
-
Best price & Best quality in China
-
CORPORATION::
-
KPLC/REA/PEC
-
Product type:
-
10mva power transformer
10mva power transformer

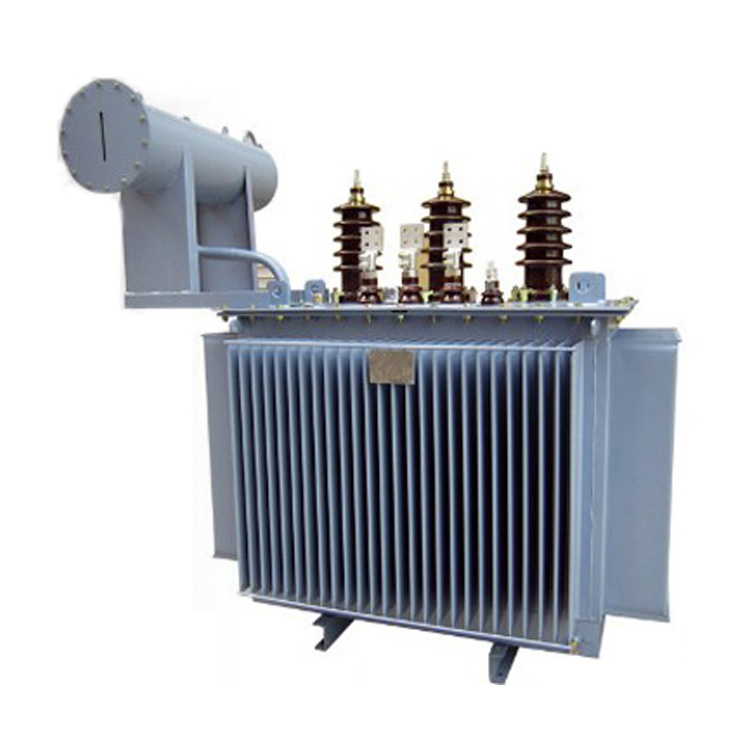

6KV to 35KV three Phase Oil Immersed Distribution Power Transformer
| Power grid electric transformer | |||||||||||||||
| Loss(kW) | Weight (kg) | (mm) | Gauge | ||||||||||||
| Rated Capacity | Voltage Group(kV) | Connection Method | (75) | No-load current | Impedance Voltage | (L) | (W) | (H) | |||||||
| (kVA) | HV | LV | No-load | Load | % | % | Machine | Oil | Gross | Dimension | Vertical | Horizontal | |||
| 50 | 0.21 | 1.21 | 2 | 195 | 205 | 590 | 1000 | 950 | 1450 | 550 | 550 | ||||
| 100 | 0.29 | 2.02 | 1.8 | 320 | 240 | 790 | 1080 | 1000 | 1600 | 550 | 550 | ||||
| 125 | 0.34 | 2.38 | 1.7 | 395 | 270 | 950 | 1100 | 1030 | 1630 | 660 | 660 | ||||
| 160 | 0.36 | 2.83 | 1.6 | 460 | 285 | 1020 | 1130 | 1060 | 1630 | 660 | 660 | ||||
| 200 | 0.43 | 3.33 | 1.5 | 555 | 325 | 1170 | 1190 | 1060 | 1670 | 660 | 660 | ||||
| 250 | 0.51 | 3.96 | 1.4 | 630 | 340 | 1340 | 1260 | 1160 | 1700 | 660 | 660 | ||||
| 315 | 38.5 | Dyn11 | 0.61 | 4.77 | 1.4 | 720 | 400 | 1530 | 1280 | 1240 | 1790 | 660 | 660 | ||
| 400 | 36.5 | 0.4 | Yd11 | 0.73 | 5.76 | 1.3 | 6.5 | 830 | 490 | 1780 | 1960 | 880 | 1900 | 820 | 820 |
| 500 | 35 | Dyn5 | 0.86 | 6.93 | 1.2 | 930 | 510 | 1960 | 2020 | 940 | 1920 | 820 | 820 | ||
| 630 | 33 | Yyn0 | 1.04 | 8.28 | 1.1 | 1085 | 600 | 2290 | 2070 | 1010 | 2010 | 820 | 820 | ||
| 800 | 1.23 | 9.9 | 1 | 1270 | 660 | 2640 | 2240 | 1040 | 2150 | 820 | 820 | ||||
| 1000 | 1.44 | 12.15 | 1 | 1495 | 735 | 3100 | 2300 | 1200 | 2150 | 820 | 820 | ||||
| 1250 | 1.76 | 14.67 | 0.9 | 1775 | 830 | 3630 | 2450 | 1280 | 2250 | 1070 | 1070 | ||||
| 1600 | 2.12 | 17.55 | 0.8 | 2140 | 935 | 4235 | 2220 | 1510 | 2350 | 1070 | 1070 | ||||
| 2000 | 2.61 | 21.5 | 0.8 | 2535 | 1035 | 4910 | 2310 | 1740 | 2440 | 1070 | 1070 | ||||
| 2500 | 3.15 | 23 | 0.8 | 3140 | 1190 | 5840 | 2370 | 1840 | 2490 | 1070 | 1070 | ||||
| (Note): (Tapping range of high voltage) ±5%; ±2×2.5%. power transformer oil distribution transformer | |||||||||||||||
1. Standard: IEC60076, GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV
2. Voltage Grade: 6KV to 35KV
10mva power transformer
3. Voltage Regulation Mode: No-load tap changing or On-load tap changing
4. Tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
5. Frequency: 50Hz; 60Hz
6. Phase: three phase
7. Connection Sign: Dyn5,Dyn5,Yyn0, Dyn11 or others
8. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
10mva power transformer
Features:
10mva power transformer
Our transformer is equipped characters as low loss, low noise, strong protection for thunder and lighting, well anti-shortcut capacity and fine appearance etc. It combines advanced equipments and manufacturing process, and it has four remote functions: remote communication, remote test, remote adjustment and remote control. By remote control from a computer, the power station could be work without any works on watch on the night. All our transformer has passed the test by National Mechanical & Industrial Bureau and National Power Company. The transformer is mainly used in power network, and the projects of power distribution.
10mva power transformer
Core equipped with advanced three steps: vertical and horizontal and horizontal cut, lap and multi-stage. It disperses the air distribution, improve the magnetic path. Decrease the no load loss, no load current and noise.
10mva power transformer
Core adopts series measures dragged panel, pressed the coil, particular glue for silicon steel to increase the strength of mechanism.
Power grid electric transformer
New structure of high and low voltage winding, reasonable arrangement for oil tube and connection which increasing the capacity of mechanical strength and anti-shortcut.
The tank is bell type or core suspension type, the wall of tank is as wave form.
