Quick Details
-
Model Number:
-
EB1100;EB1200;ETC
-
Hardnes:
-
68±2
-
Color:
-
Black
-
Tensile strength:
-
10.5,12.5
-
Tearing strength:
-
45
-
Long run temperature:
-
250
-
Resistant to EVA:
-
Middle,strong
-
Normal using life:
-
6000
-
Material:
-
rubber
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ERBA
-
Model Number:
-
EB1100;EB1200;ETC
-
Hardnes:
-
68±2
-
Color:
-
Black
-
Tensile strength:
-
10.5,12.5
-
Tearing strength:
-
45
-
Long run temperature:
-
250
-
Resistant to EVA:
-
Middle,strong
-
Normal using life:
-
6000
-
Material:
-
rubber
Product Description

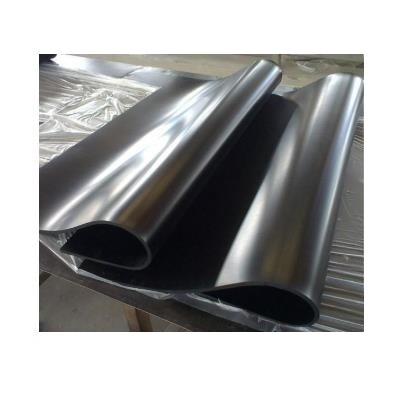

Rubber Sheet
We uses qualified raw material of a word-famous brand for the high tea-resistant silicone rubber sheet and carries out technical coopeayion wih professional companies domestically and abroad.Keqiang adopts advanced techbiques and special equipment,large drum-type vulcanization unit,in the development of the product,which has a high level of stability,a good evenness and reliability.Specially used for solar energy laminator,etc.
EB1100 is the improvement based on the first generation according to the market demand.The type of silicone rubber sheet has lowmodulus,good elastic recovery,small permanent deformation.It’s suitable for automatic lamination of double-glass module.
According to specific working conditions and lose-efficacy forms of solar laminated sheet,ERBA develops the second generation siliconerubber sheet.Based on the former silicone rubber sheet,this one brings in the green environmental reinforcing materialwhich is acid resistant,chemical resistant,high temperature resistant ,so the tensile strength,tearing strength,and dimensional stability of the silicone rubber sheet are greatly improved,then the lifetime is longer.The advantage of the silicone rubber sheet is that even if it is used to the extreme,the solar module will not be damaged.
The working surface of EB5100 is viton silicone rubber,it has excellent resistance to medium.The corrosion of EVA volaile to rubber sheet is almost zero.It has good temperature performance,can meet the requirements of high temperature curing.
EB1100 is the improvement based on the first generation according to the market demand.The type of silicone rubber sheet has lowmodulus,good elastic recovery,small permanent deformation.It’s suitable for automatic lamination of double-glass module.
According to specific working conditions and lose-efficacy forms of solar laminated sheet,ERBA develops the second generation siliconerubber sheet.Based on the former silicone rubber sheet,this one brings in the green environmental reinforcing materialwhich is acid resistant,chemical resistant,high temperature resistant ,so the tensile strength,tearing strength,and dimensional stability of the silicone rubber sheet are greatly improved,then the lifetime is longer.The advantage of the silicone rubber sheet is that even if it is used to the extreme,the solar module will not be damaged.
The working surface of EB5100 is viton silicone rubber,it has excellent resistance to medium.The corrosion of EVA volaile to rubber sheet is almost zero.It has good temperature performance,can meet the requirements of high temperature curing.
Specification
|
Model
|
EB1100
|
EB2100
|
EB4100
|
EB5100
|
|||
|
Hardness（Shore A ）
|
68±2
|
70±2
|
Working face：70±2
Buffering face：60±2 |
Working face：70±2
Buffering face：60±2 |
|||
|
Tensile strength Mpa》
|
9.5
|
12.5
|
10.2
|
12.5
|
|||
|
Tearing strength N/mm》
|
42
|
45
|
45
|
45
|
|||
|
Long run temperature℃
|
230
|
250
|
250
|
250
|
|||
|
Resistant toEVA
|
Middle
|
Middle
|
Strong
|
Strong |
|||
|
Normal using life
|
>2000
|
>3000
|
6000
|
6000
|
|||
|
Appearance and color
|
Blue,Grey,Black
|
Grey,Black
|
Grey,Black
|
Black,Grey,Blue
|
|||
|
Remarks
|
1.The maximum width can be 4000mm without seam,the world’s first.
2.Special specilications can be ordered according to customers’ requirement. 3.We can also provide kinds of silicone rubber sealing strip foe laminator,high temperature resistant Teflon cloth,etc. |
|
|
|
|||
