Quick Details
-
Brand Name:
-
TOLOHAS
-
Model Number:
-
LHU06B
-
Product name:
-
mortuary freezer
-
Application:
-
Medical Cryogenic Equipments
-
Material:
-
Stainless Steel
-
Power:
-
110~220V
-
Feature:
-
OEM Accepted
-
MOQ:
-
1 set
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOLOHAS
-
Model Number:
-
LHU06B
-
Product name:
-
mortuary freezer
-
Application:
-
Medical Cryogenic Equipments
-
Material:
-
Stainless Steel
-
Power:
-
110~220V
-
Feature:
-
OEM Accepted
-
MOQ:
-
1 set

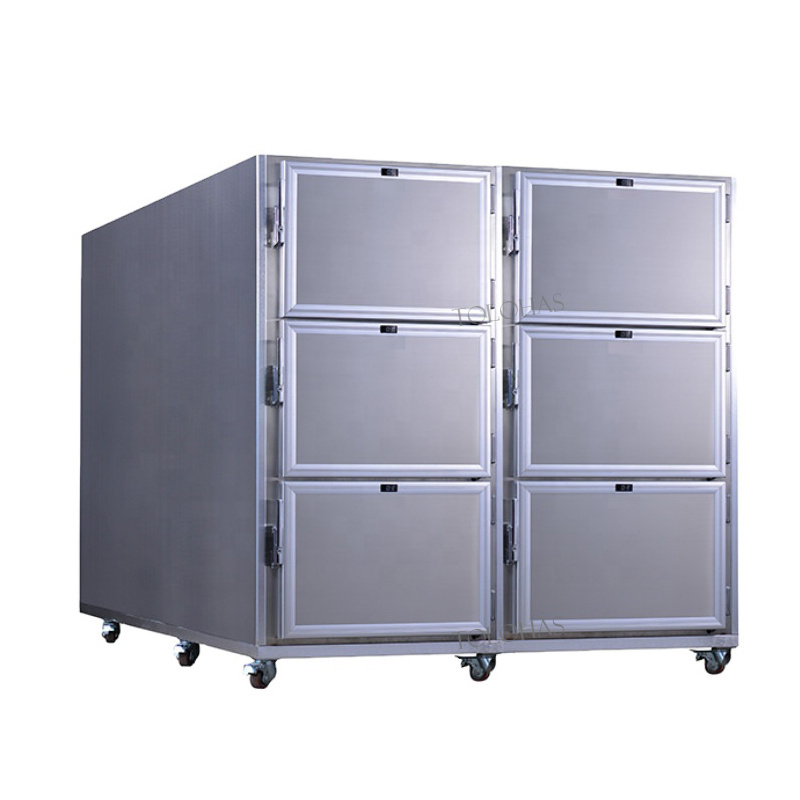

LHU06B Six bodies morgue refrigerator mortuary cooler corpses cabinet mortuary freezer
Products Description
The corpse cold storage and freezing box /corpse cabinet is a series of product for hospital, funeral parlor, and postmortem examination department to store the corpse.
Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with original binding can maintain the temperature constancy in the box at 3±2℃precisely
The temperature set-value can be adjusted at -18℃~5℃, and the temperature display
precision is 0.1℃, the resolution is 0.1℃and the adjusting increment is 0.1℃. The value is to be displayed through three-digital high-brightness figure.
The system has special high-resolution temperature calibrating function. That means the set-value figure can be displayed and calibrated at -10.0~10.0℃. The calibrating increment is 0.1℃.
The forced cold-air circulation system with intelligence-control fan can ensure the temperature uniformity inside the box.
24-hours tracing, recording and printing system (Optional)
The imported temperature recording and printing system. There are four precise temperature sensors (two sensors for some systems)
inside the box and two temperature indicators outside the box, which are to display the temperature of upper and lower point, for users to supervise the temperature at each operating states in the box. The display precision--resolution is 0.1℃.
The distinguished power-off memory function can hold and store huge temperature data and information permanently.
The temperature printing has password protection function, which can prevent illegally printing of the temperature fluctuation information.
5-ways alarm system: including 2 sound alarm devices with 220V power supply, 2 light alarm devices with 220V power supply and one remote signal alarm apparatus (optional), consisting the super complementary supervision system.
The data management software is available for one or more temperature signals changes
Communicate with PC through RS-232 interface to examine the temperature curve diagnosis diagram of one or more refrigerators and display the data sheet. The data and images can be stored, inquired and printed (Optional).
Safe control system
Keyboard lock, password protection function, and method against missing-adjustment of the operating parameter;
Setting of the alarm temperature range.
7 system failure alarms (high temperature alarm, low temperature alarm, sensors
failure alarm, door-opening alarm, electricity failure alarm, low back-up battery alarm, low voltage alarm).
Code display of the failure position (some machines have all these seven alarms); Three alarm ways (buzzer alarm, flashing alarm, remote signal alarm)
The starting delay function due to self-checking and the interval protection function between temporary stop and start can ensure the reliable operation;
The system can record the condition of the maximum and the minimum temperature inside the box automatically without recording paper.
With the specially designed function, the system can operate under the state of sensor failure or the state of numerical
disturbance safely and automatically.
The operating parameter display function can ensure that the system is under supervision by operator and with security and stability.
Equipped with remote alarm interface;
The distinguished operating parameter of the temperature control system can separate the operator menu from the supervisor menu, which can locate the respective responsibility of the operating parameter and the article storage.
The inbuilt lithium accumulator can keep displaying the temperature inside the box and can keep the light and sound alarm available for 72 hours after electricity failure.
Optional items:
The EPS emergency supply is adoptable;
The DC24V-AC220V inverter is adoptable, and the DC24V power supply can keep the refrigerator under normal operation.
Refrigeration system
Domestic compressor
Optional configuration: Import and adopt the original binding Germany DANFOSS high-performance compressor;
Import and adopt the original binding “Bi-Sonic” double fan strongly against the low temperature and moisture;
Germany “EBM” heat elimination fan;
Fluoride-free refrigeration system for environmental protection to make green products and create green world.
Humanization design
The interior and exterior shell of the refrigerator are made of high-quality stainless steel with high corrosion resistance and
beautiful and luxury appearance.
The insulating layer is made of imported polyurethane foam materials with high thermal retardation against cold loss.
Adopt the high-quality gel strip for door gasket with strong ageing resistance ability, which can lengthen the service life of the door gasket.
The number of the independent imported low temperature refrigeration system is same as the number of the corpse in one refrigerator, and each refrigeration system’s temperature range can be adjusted individually, and the temperature of each chamber is independent.
The bottom side of the corpse tray has many rows of small roller wheel for moving the tray easily.
The internal and external shells of the refrigerator are made of high-quality stainless steel materials.
Copper vaporizer cooling pipeline can guarantee the ultra-long service life. The refrigeration system of each chamber is
individually controlled, and the temperature can be adjusted without interference.
The safe lock design can prevent missing-opening. Wide voltage band is available for 187-242V voltage.
Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with original binding can maintain the temperature constancy in the box at 3±2℃precisely
The temperature set-value can be adjusted at -18℃~5℃, and the temperature display
precision is 0.1℃, the resolution is 0.1℃and the adjusting increment is 0.1℃. The value is to be displayed through three-digital high-brightness figure.
The system has special high-resolution temperature calibrating function. That means the set-value figure can be displayed and calibrated at -10.0~10.0℃. The calibrating increment is 0.1℃.
The forced cold-air circulation system with intelligence-control fan can ensure the temperature uniformity inside the box.
24-hours tracing, recording and printing system (Optional)
The imported temperature recording and printing system. There are four precise temperature sensors (two sensors for some systems)
inside the box and two temperature indicators outside the box, which are to display the temperature of upper and lower point, for users to supervise the temperature at each operating states in the box. The display precision--resolution is 0.1℃.
The distinguished power-off memory function can hold and store huge temperature data and information permanently.
The temperature printing has password protection function, which can prevent illegally printing of the temperature fluctuation information.
5-ways alarm system: including 2 sound alarm devices with 220V power supply, 2 light alarm devices with 220V power supply and one remote signal alarm apparatus (optional), consisting the super complementary supervision system.
The data management software is available for one or more temperature signals changes
Communicate with PC through RS-232 interface to examine the temperature curve diagnosis diagram of one or more refrigerators and display the data sheet. The data and images can be stored, inquired and printed (Optional).
Safe control system
Keyboard lock, password protection function, and method against missing-adjustment of the operating parameter;
Setting of the alarm temperature range.
7 system failure alarms (high temperature alarm, low temperature alarm, sensors
failure alarm, door-opening alarm, electricity failure alarm, low back-up battery alarm, low voltage alarm).
Code display of the failure position (some machines have all these seven alarms); Three alarm ways (buzzer alarm, flashing alarm, remote signal alarm)
The starting delay function due to self-checking and the interval protection function between temporary stop and start can ensure the reliable operation;
The system can record the condition of the maximum and the minimum temperature inside the box automatically without recording paper.
With the specially designed function, the system can operate under the state of sensor failure or the state of numerical
disturbance safely and automatically.
The operating parameter display function can ensure that the system is under supervision by operator and with security and stability.
Equipped with remote alarm interface;
The distinguished operating parameter of the temperature control system can separate the operator menu from the supervisor menu, which can locate the respective responsibility of the operating parameter and the article storage.
The inbuilt lithium accumulator can keep displaying the temperature inside the box and can keep the light and sound alarm available for 72 hours after electricity failure.
Optional items:
The EPS emergency supply is adoptable;
The DC24V-AC220V inverter is adoptable, and the DC24V power supply can keep the refrigerator under normal operation.
Refrigeration system
Domestic compressor
Optional configuration: Import and adopt the original binding Germany DANFOSS high-performance compressor;
Import and adopt the original binding “Bi-Sonic” double fan strongly against the low temperature and moisture;
Germany “EBM” heat elimination fan;
Fluoride-free refrigeration system for environmental protection to make green products and create green world.
Humanization design
The interior and exterior shell of the refrigerator are made of high-quality stainless steel with high corrosion resistance and
beautiful and luxury appearance.
The insulating layer is made of imported polyurethane foam materials with high thermal retardation against cold loss.
Adopt the high-quality gel strip for door gasket with strong ageing resistance ability, which can lengthen the service life of the door gasket.
The number of the independent imported low temperature refrigeration system is same as the number of the corpse in one refrigerator, and each refrigeration system’s temperature range can be adjusted individually, and the temperature of each chamber is independent.
The bottom side of the corpse tray has many rows of small roller wheel for moving the tray easily.
The internal and external shells of the refrigerator are made of high-quality stainless steel materials.
Copper vaporizer cooling pipeline can guarantee the ultra-long service life. The refrigeration system of each chamber is
individually controlled, and the temperature can be adjusted without interference.
The safe lock design can prevent missing-opening. Wide voltage band is available for 187-242V voltage.
Product Paramenters
|
Product mode
|
Quantity
|
Voltage
|
Input power
|
Temperature inside the box
|
Exterior size (D*W*H)
|
Weight
|
minimum temperature
|
Layers
|
|
LHU01B
|
1 body
|
220V/50HZ
|
350W
|
1-5 °c
|
2520*820*650
|
150 kg
|
-18 °c
|
1
|
|
LHU02B
|
2 bodies
|
220V/50HZ
|
700W
|
1-5 °c
|
2520*850*1210
|
300 kg
|
-18 °c
|
2
|
|
LHU03B
|
3 bodies
|
220V/50HZ
|
1050W
|
1-5 °c
|
2520*850*1700
|
400 kg
|
-18 °c
|
3
|
|
LHU04B
|
4 bodies
|
220V/50HZ
|
1400W
|
1-5 °c
|
2520*1500*1210
|
550 kg
|
-18 °c
|
4
|
|
LHU06B
|
6 bodies
|
220V/50HZ
|
2100W
|
1-5 °c
|
2520*1500*1700
|
700 kg
|
-18 °c
|
6
|
Details Images
Product packaging
1.We ship the
mortuary freezer
by Express, Air or Sea for you.
2.Our mortuary freezer will sent with standard export packing.
2.Our mortuary freezer will sent with standard export packing.
Why Choose Us
1.
Only do honest business! Quality first, Customer first, Reputation frist, Service first!
2. For all your inquires about us or our
mortuary freezer
, we will reply you in detail within 24 hours.
3. We own professional team have professional attitude to recommend products and services, introducing the mortuary freezer for you.
4. Our mortuary freezer have various type and function , We will recommend to you that according to your requirements ;
5. We offer OEM services. Can print your own logo on the mortuary freezer .
6. We have very experienced engineers, can help you better use our mortuary freezer .
3. We own professional team have professional attitude to recommend products and services, introducing the mortuary freezer for you.
4. Our mortuary freezer have various type and function , We will recommend to you that according to your requirements ;
5. We offer OEM services. Can print your own logo on the mortuary freezer .
6. We have very experienced engineers, can help you better use our mortuary freezer .
7.
We have more than 85% regular customers. More than 95% positive feedback rate.
FAQ
1.
What's the minimum order quantity (MOQ) of your medical equipment?
For most of our medical products, even order for only one unit is warmly welcomed.
2.
Can you do OEM/ private label?
We can do OEM/private label for you，s
ome products have quantity requirements, please contact us for more details.
3. Wh
at's your delivery time?
Generally it is 3-7 days if the goods are in stock，7-15 days if the goods are not in stock, it is according to the quantity.
4.
How do you ensure your products quality?
P
roduction or inspection report and
100% test before delivery, m
ost of
our medical products
got CE certification.
5.
What about your after-sale service?
We have a professional team for after-sale service. Our team will follow the order once you ordered.
