Quick Details
-
Brand Name:
-
DMAIS
-
Weight:
-
1150 KG
-
Dimension(L*W*H):
-
3350*2167*1265(mm)
-
Safety Device:
-
Safe anti-collision system
-
Moving Speed:
-
800-1500mm/s
-
Cutting Thickness:
-
≤30mm
-
Material Fixed:
-
Vacuum System
-
Effective Working Range:
-
2500*1600mm
-
Transmission system:
-
Servo motor, linear guide, timing belt, screw, gear
-
Support Format:
-
AI, DXF, PLT, etc
-
Packing Size:
-
3400*2250*1500
-
After Warranty Service:
-
Online support
Quick Details
-
Voltage:
-
380V±10%
-
Power:
-
7.5-11KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DMAIS
-
Weight:
-
1150 KG
-
Dimension(L*W*H):
-
3350*2167*1265(mm)
-
Safety Device:
-
Safe anti-collision system
-
Moving Speed:
-
800-1500mm/s
-
Cutting Thickness:
-
≤30mm
-
Material Fixed:
-
Vacuum System
-
Effective Working Range:
-
2500*1600mm
-
Transmission system:
-
Servo motor, linear guide, timing belt, screw, gear
-
Support Format:
-
AI, DXF, PLT, etc
-
Packing Size:
-
3400*2250*1500
-
After Warranty Service:
-
Online support
Related Products

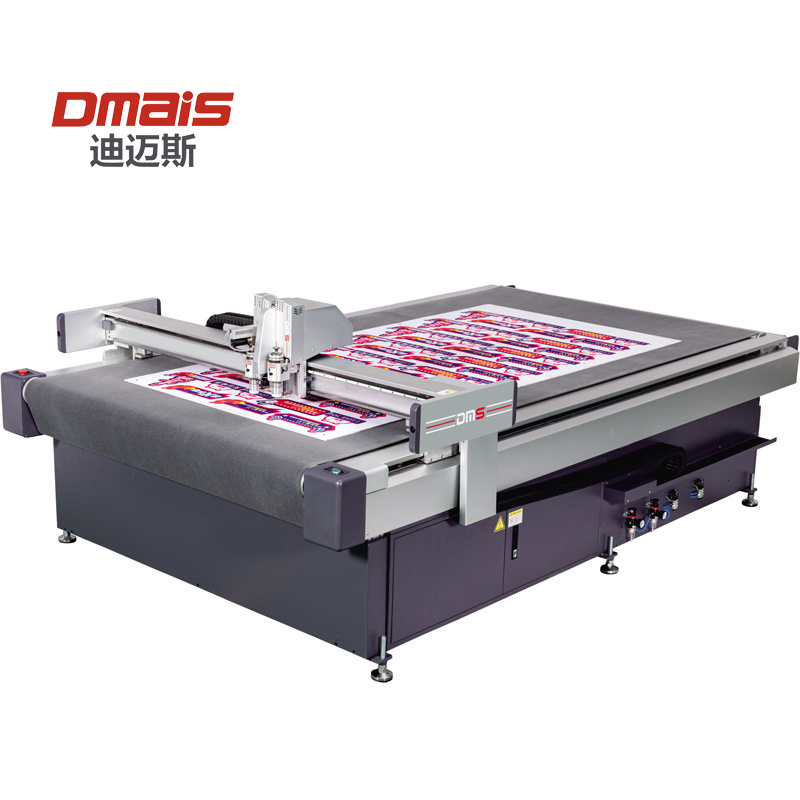

Products Description
|
Model
|
D9
|
|
Cutting Speed
|
60-1200mm/s (according to different cutting materials)
|
|
Cutting Thickness
|
≤30mm
|
|
Material Fixed
|
Vacuum System
|
|
Working Range
|
2500*1600mm
|
|
Multi-function
|
Tools can be easily changed, with oscillating, non-oscillating, rotary, milling, kiss-cut, and creasing tools etc.
|
|
Gross Weight
|
1150KG
|
|
Packing Size
|
3400*2250*1500mm
|
Humanized design interface operating system.
intelligently identify tool setting and cutting.
Fast capture cutting targets.
The Gigabit Ethernet can be realized the remote upgrading and maintenance with high speed.
Convenient replaceable head design. Tools can be changed according to actual needs of customers.
Adopting advanced and mature rolling table design. The vacuum suction design can be selected 8 suction areas by software
