Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
18
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
18
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-10 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iPixel LED
-
Emitting Color:
-
Changeable
-
Model Number:
-
P12RV5
-
Product Name:
-
12mm round led pixel
-
LED Chip:
-
Epistar F8mm Dip LED
-
IC Chip:
-
UCS1903/WS2811/WS2801/LPD6803/SM16716
-
LED QTY/chain:
-
50PCS/chain
-
Software:
-
LEDedit, Madrix,etc
-
connector:
-
3pin / 4pin JST female and male connectors
-
Wire length(Pitch):
-
usually 8cm, also can be custmized
-
Connector:
-
4PIN JST male and female
-
Warranty:
-
2 Years LED Star Curtain
Quick Details
-
Color Temperature(CCT):
-
addressable
-
Type:
-
Spotlights
-
Warranty(Year):
-
2-Year
-
Lamp Luminous Efficiency(lm/w):
-
18
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
18
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-10 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iPixel LED
-
Emitting Color:
-
Changeable
-
Model Number:
-
P12RV5
-
Product Name:
-
12mm round led pixel
-
LED Chip:
-
Epistar F8mm Dip LED
-
IC Chip:
-
UCS1903/WS2811/WS2801/LPD6803/SM16716
-
LED QTY/chain:
-
50PCS/chain
-
Software:
-
LEDedit, Madrix,etc
-
connector:
-
3pin / 4pin JST female and male connectors
-
Wire length(Pitch):
-
usually 8cm, also can be custmized
-
Connector:
-
4PIN JST male and female
-
Warranty:
-
2 Years LED Star Curtain

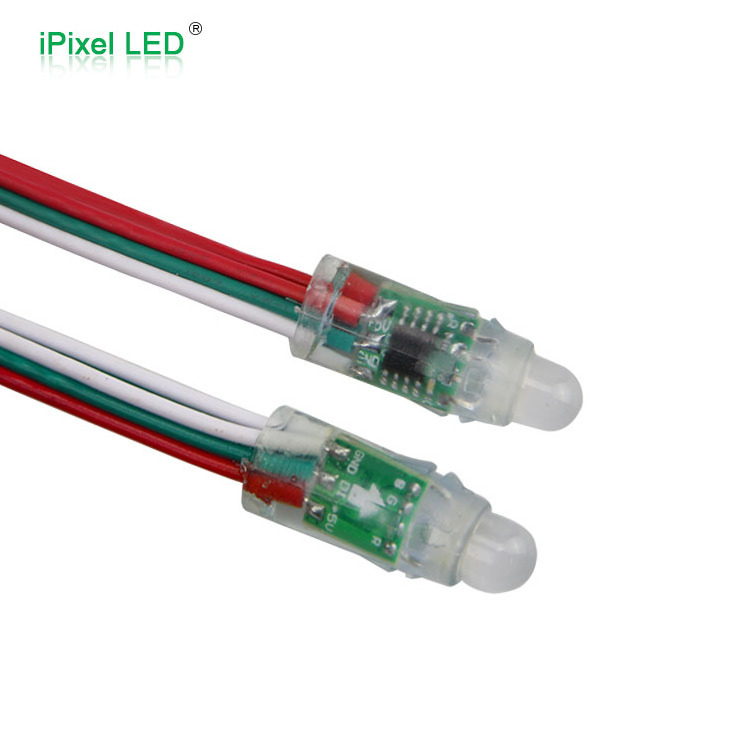

12mm ws2811 smd 5050 rgb digital mini single led pixel lights
1. Individually control: 1PCS LED pixel & 1IC
2. IC chip: can be ws2801, ws2811, ucs1903, sm16716, lpd6803 IC .
3. Waterproof: Yes IP66 , with full silicon glue waterproof protection .
4. Installation: Easy to install, you'd better drill the hole with 12mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V
or you can destroy the entire pixel.
7. Connetors: 3PIN or 4PIN JST female and male connectors.
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
3PIN : DAT, DC5V+, GND-
4PIN : DAT, CLK, DC5V+, GND
8. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
9. Color and effect: addressable lights you can set to any color, or animate , like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
10. Brand: iPixel LED
| Type | 3Pin connector | 4Pin connector |
| Product Name | 12mm round pixel led | 12mm round pixel led |
| IC Chip | ws2811,sm16716 | ws2801,ucs1903,lpd6803 |
| Led Chip | Epister F8mm Dot Led | Epister F8mm Dot Led |
| Voltage | DC5V | DC5V |
| Wattage | 0.3w/pcs | 0.3w/pcs |
| Wire | DAT,CLK,DC5V+ | DAT, CLK, DC5V+, GND- |
| Waterproof | Full silicon glue | Full silicon glue |
| Certification | CE,RoHS | CE,RoHS |
| Warranty | 2 years | 2 years |
