Quick Details
-
Model Number:
-
DOS-1703
-
Wahtsapp:
-
86-18817355732
-
Representative:
-
eit02(@)sh-eit.com
-
Measuring range:
-
0.00--50.0mg/L
-
OEM Service:
-
Yes
-
Dimension:
-
230*100*35(mm)
-
Power:
-
DC6V/20mA ; 4 x AA/LR6 1.5 V or NiMH 1.2 V and chargable
-
Resolution:
-
0.1%
-
Working condition:
-
Relative humidity 5%...80%(without condensate)
-
weight:
-
0.4kg
-
Type:
-
oxygen analyser
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EIT
-
Model Number:
-
DOS-1703
-
Wahtsapp:
-
86-18817355732
-
Representative:
-
eit02(@)sh-eit.com
-
Measuring range:
-
0.00--50.0mg/L
-
OEM Service:
-
Yes
-
Dimension:
-
230*100*35(mm)
-
Power:
-
DC6V/20mA ; 4 x AA/LR6 1.5 V or NiMH 1.2 V and chargable
-
Resolution:
-
0.1%
-
Working condition:
-
Relative humidity 5%...80%(without condensate)
-
weight:
-
0.4kg
-
Type:
-
oxygen analyser
-
Certification:
-
CE

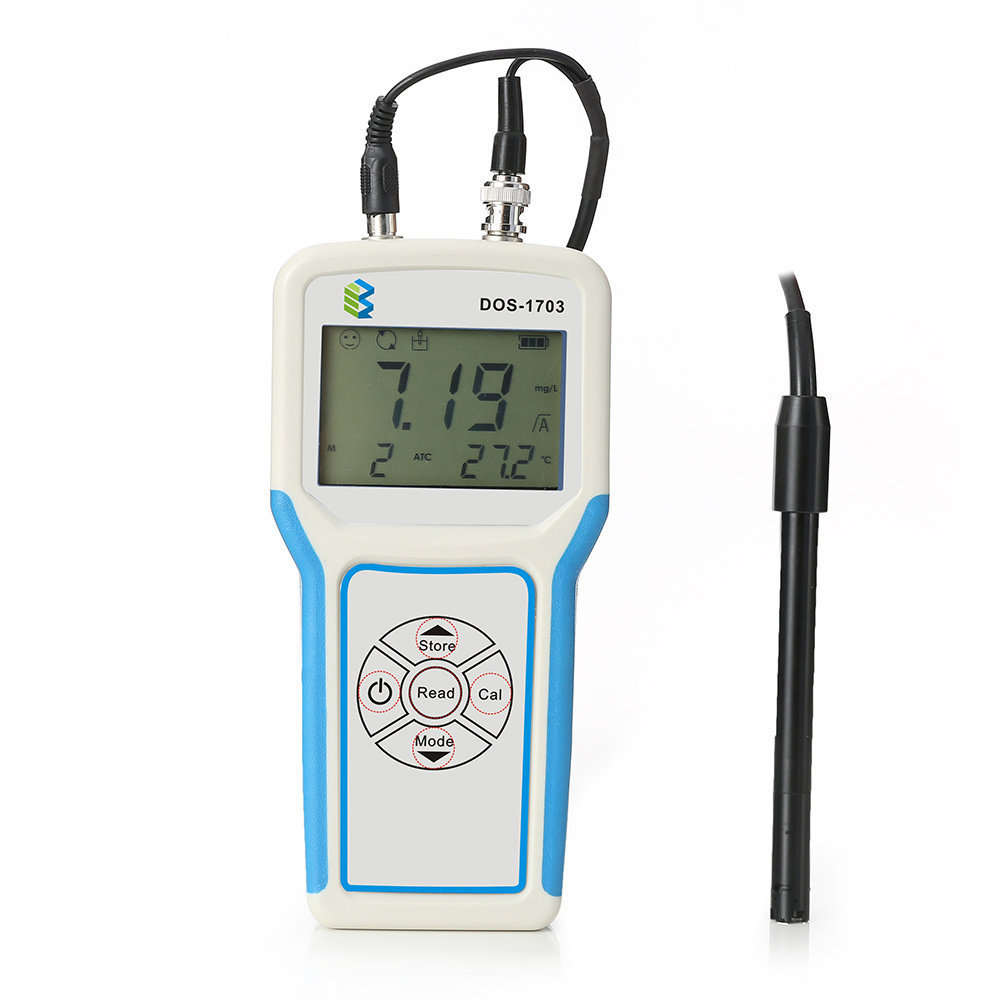

DOS-1703 portable dissolved oxygen meter
Data Storage, Function Set-UP.
Built-in Microprocessor Chips. Automatic Calibration, Automatic Temperature Compensation
Self-diagnose Information, Automatic Power-off And Low Voltage Display
Technical indexes
|
Measuring range |
DO |
0.00--50.0mg/L |
|
|
0.0--500% |
|||
|
Temp |
0…60℃ ( ATC/MTC ) |
||
|
A tmosphere |
300--1100hPa |
||
|
Resolution |
DO |
0.01mg/L,0.1mg/L(ATC) |
|
|
0.1%/1%(ATC) |
|||
|
Temp |
0.1℃ |
||
|
A tmosphere |
1hPa |
||
|
Electronic unit measurement error |
DO |
±0.5 % FS |
|
|
Temp |
±0.2 ℃ |
||
|
A tmosphere |
±5hPa |
||
|
Calibration |
At most 2 point, (w ater vapor saturated air/ zero oxygen solution) |
||
|
Power supply |
DC6V/20mA ; 4 x AA/LR6 1.5 V or NiMH 1.2 V and c hargable |
||
|
Size / Weight |
230×100×35(mm)/0.4kg |
||
|
Display |
LCD |
||
|
Sensor input connector |
BNC |
||
|
Data storage |
Calibration data ; 99 groups measurement data |
||
|
Working condition |
Temp |
5...40℃ |
|
|
Relative humidity |
5%...80% ( without condensate ) |
||
|
Installation grade |
Ⅱ |
||
|
Pollution grade |
2 |
||
|
Altitude |
<=2000 m |
||
