Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
24kw
-
Dimension(L*W*H):
-
6200mm*4600mm*2380mm
-
Weight:
-
4000 kg
-
Product name:
-

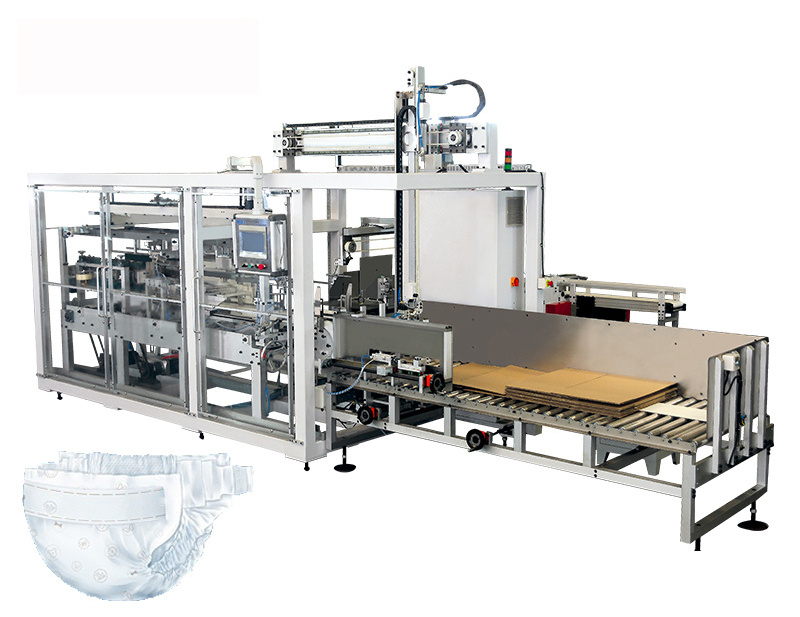

Automatic cotton tissue packing machine
-
Tissue sorting mode:
-
Auto intelligent tissue sorting
-
Packaging material:
-
CPP, PE ,OPPfilm
-
Film thickness(mm):
-
0.04-0.08
-
After-sales Service:
-
Installation Videos and Technicians Supply
Quick Details
-
Production Capacity:
-
10 box/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IMAKO
-
Voltage:
-
380V 50HZ
-
Power:
-
24kw
-
Dimension(L*W*H):
-
6200mm*4600mm*2380mm
-
Weight:
-
4000 kg
-
Product name:
-
Automatic cotton tissue packing machine
-
Tissue sorting mode:
-
Auto intelligent tissue sorting
-
Packaging material:
-
CPP, PE ,OPPfilm
-
Film thickness(mm):
-
0.04-0.08
-
After-sales Service:
-
Installation Videos and Technicians Supply
Product Description
Specification
|
Specification/Model/
ltem |
DP-C10
|
|
|
|
Scope of application
|
Soft packed baby diaper and pull-ups
|
|
|
|
Tissue feeding mode
|
Automatic single lane intelligent feeding system
|
|
|
|
Feeding speed
|
Max. feeding speed:30 bags/min
|
|
|
|
Array type
(Layer x row x column) |
(1-2)x(1-2)x(3-4)
|
See packing drawing
|
|
|
Design speed
|
12 cartons/min
|
Relate to product size
|
|
|
Stable speed
|
10 cartons/min
|
|
|
|
Percent of pass
|
≥98%
|
In packing range
|
|
|
Carton structure
|
3,5 layers corrugated
carton.thickness 3-5mm,drum carton |
Need punch forming in
advance, with fold |
|
|
Carton placing mode
|
Flat type carton storage position
|
|
|
|
Carton storage quantity
|
≤100 cartons
|
Double working positions
|
|
|
Carton sealing mode
|
Tape sealing
|
|
|
|
Machine weight(KG)
|
4000
|
|
|
|
Compressed air(MPA)
|
≥0.6
|
|
|
|
Power supply
|
380V/50Hz
|
|
|
|
Suit voltage
fluctuate range |
+/-10%
|
According to national standard
|
|
|
l/O input(VDC)
|
24
|
Electrical system
controls circle input |
|
|
l/O output(VDC)
|
24
|
Electrical system
controls circle output |
|
|
Movement contro mode
|
Servo/inverterlcylinder positioning control
|
|
|
Packing & Delivery
Wooden case
