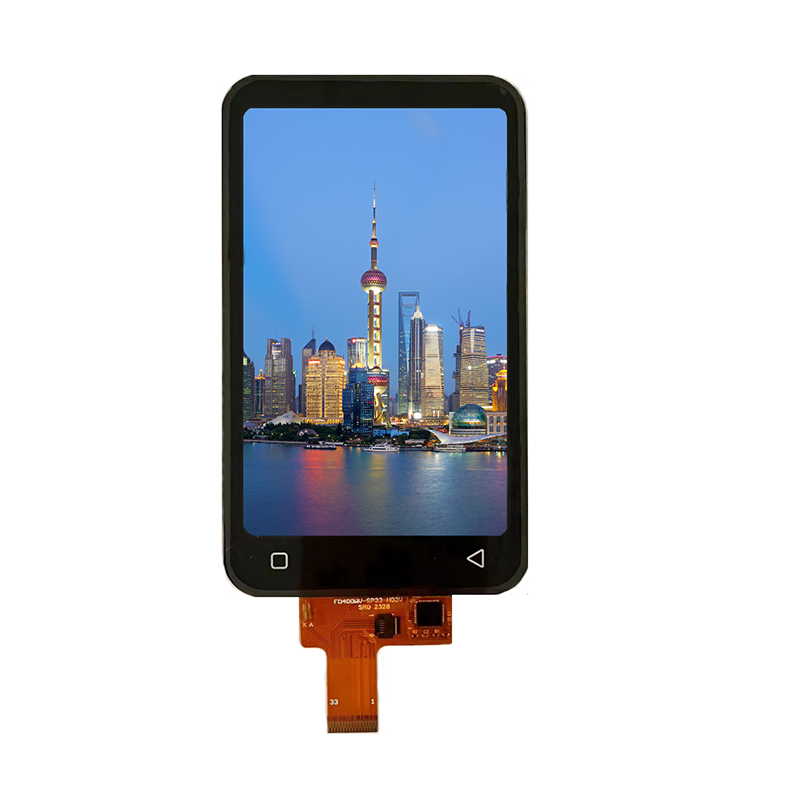

Lcd tft Display 4 Inch Touch Display 480*800 MIPI interface Capacitive Touch Screen

Lcd tft Display 4 Inch Touch Display 480*800 MIPI interface Capacitive Touch Screen

FOB Reference Price: Get Latest Price

≥10 Pieces

US $12.5

≥1000 Pieces

US $11.2

≥5000 Pieces

US $9.8

≥10000 Pieces

US $8.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Smart products, Smart

Interface:: MIPI

Diagonal Screen Size:: 3.97

Features:: Capacitive Touch

Drive IC:: GSL1691

Product Name:: Custom Size Touch Screen

Size:: 4 Inch

Resolution:: 480*800

Interface Type:: Mini

Structure:: G+FF

Touch panel:: Support Customization

Viewing Angle:: IPS Fulll Angle

Quick Details

Place of Origin:: China

Brand Name:: FDT

Model Number:: FDT040WV3-SP25-H03V

Application:: Smart products, Smart

Interface:: MIPI

Diagonal Screen Size:: 3.97

Features:: Capacitive Touch

Drive IC:: GSL1691

Product Name:: Custom Size Touch Screen

Size:: 4 Inch

Resolution:: 480*800

Interface Type:: Mini

Structure:: G+FF

Touch panel:: Support Customization

Viewing Angle:: IPS Fulll Angle

Product Description

LCD Type	TFT
Display color	normally white
Operating temperature	-20℃~+70℃
Storage temperature	-30℃~+80℃
Outline dimension	60108.33.73mm
Module size	55.596.07 2.12 mm
Active Area(W×H)	51.84*86.4mm
Outline Dimensions	Refer to outline drawing

Product performance description

FDT040WV3-SP33-H03V is a TFT-LCD touch module. It is composed of a TP Cover plate, TFT-LCD panel, driver IC, FPC, a backlight unit. The 4"display area
contains 480*800 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

General Specifications

Size	4 inch
Product name	4 inch Touch display
Type	LCD+CTP
Struture	CTP(G+FF)+LCD
Outline dimension	60108.33.73mm
Active area	51.84*86.4mm
Resolution	480*800
Brightness	320 cd/m2
Working wet temperature	-20℃~+70℃
Storage humidity temperature	-30℃~+80℃
Touch IC	GSL1691
Interface of LCD	MIPI interface
Interface of CTP	6C
Surface hardness	6H
TP Transmittance	85%

Outline Drawing

Details Images

The structures explanation:

* P+G=PET+Glass (cover lens is PET and touch sensor is glass).
* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).
* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).
* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area

The sample is G+F/F

The capacitive touch screen supports multi-touch technology, is sensitive in operation, difficult to accidentally touch, and has high durability.

Not only low power, but also stable in use

The capacitive touch screen uses a full lamination process to help reduce reflections between the display panel and the glass. There will be no gray layer entering the screen, and it is more convenient for customers to assemble.

It can effectively reduce the interference caused by the noise of the display panel to the touch signal.

It can also make the displayed image more clear and thorough, and the painting more vivid. .

Product Usage

- Industrial field

I ndustrial handheld devices, small processing equipment, CNC equipment, human-machine interfaces and other equipment products that require touch control

Medical products

Touch LCD screens for blood pressure monitors, blood glucose meters, thermometers, syringe pumps, ECG monitors, fetal heart rate monitors, ventilators, etc., with sizes ranging from 0.96 inches to 10.1 inches, require screens that are impact resistant and have a wide viewing angle.

Smart home

Smart switch panels, air conditioning panels, background music wall hosts, smart door locks, smart home appliance displays, etc. require screens with ultra-wide viewing angles and long life.

Learning products within education

Educational products such as tablet computers, MP4 learning machines, Walkmans, and music players require clear viewing angles and high touch sensitivity.

Car LCD screen

For display products such as car players, car instruments, and car central controls, car-sized screens require capacitive multi-touch, ultra-wide operating temperature, shock resistance, ultra-wide viewing angle, high brightness and high definition LCDs. display.

Our Services & Strength

The company adheres to the product design principle of "professional, efficient, safe and innovative", provide one-stop TFT color display module solutions of various shapes and sizes according to customer needs.We actively innovate and constantly apply advanced technology to product development and production to effectively support customer product needs. And according to the market and customer demand changes to provide customized overall display solutions at any time.

Production Process

FAQ

1. Do you have your own factory? Can you continue to supply?

A: Our company has office and plant a total of about 1500 square meters, has its own full automatic line and semi-automatic line,as well as touch fit automatic line, production capacity of 200K /month, our products are the original A regulation LCD screen,as long as the original factory to stop production, we can continue to supply, please rest assured to buy!

2, Your LCD screen warranty of one year, is the factory factory time prevails, or to your company shipped to us the time ah?
A: It is the time we ship to you, before shipment we will put our own label on the back of the LCD screen, the date above is
ourshipment date, the time on which the warranty is based.

3. How is the quality of your products? What about after-sales service?

A:Our company's service tenet is to be quality-oriented,integrity-oriented, genuine original A-gauge LCD screen, to providetechnical support, after-sales guarantee.

4. If you need other sizes (not available on the website), can you do it?

A: Our main size is concentrated between 1.54" and 10.1",more than 10.1", although it can be done, but we have no advantage,10.1" below the small and medium size LCD we can try tocustomize according to your requirements!

5, My requirements are relatively high, such as the product needs to be bright, too high and low temperature, too salt
waterexperiment, etc., can you do it?
A: For special requirements, you need to communicate with us in advance, and after confirming the requirements, we can evaluateand proof according to your requirements!

6、Does the product support customization?
A: If there is no product that meets your requirements, we can customize the proofing according to your requirements

7、Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
