Quick Details
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QUICK
-
Voltage:
-
AC220V/50-60HZ
-
Dimension(L*W*H):
-
3,850x 2,280x1800mm
-
Power (kW):
-
7
-
Weight (KG):
-
250
-
Product name:
-
132 cnc router machine
-
Control system:
-
DSP A11
-
Spindle:
-
3.5kw air Cooling
-
Working area:
-
1300X2500X200mm
-
Motor:
-
Stepper
-
Inverter:
-
Xinjie
-
Drive motor:
-
Steper Motors
-
Spindle speed:
-
10,000mm/min
-
Table:
-
Vacuum Adsorption + T-slot
-
Software:
-
Artcam & Alphacam Software/UK
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QUICK
-
Voltage:
-
AC220V/50-60HZ
-
Dimension(L*W*H):
-
3,850x 2,280x1800mm
-
Power (kW):
-
7
-
Weight (KG):
-
250
-
Product name:
-
132 cnc router machine
-
Control system:
-
DSP A11
-
Spindle:
-
3.5kw air Cooling
-
Working area:
-
1300X2500X200mm
-
Motor:
-
Stepper
-
Inverter:
-
Xinjie
-
Drive motor:
-
Steper Motors
-
Spindle speed:
-
10,000mm/min
-
Table:
-
Vacuum Adsorption + T-slot
-
Software:
-
Artcam & Alphacam Software/UK
Product Description
1. Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free,thus always keep machine accurate.
2. Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.
3.The unique reality of the 3-axis screw, the machining accuracy is more accurate.
4.The router spindle is very high precision and air-cooled. which keeps the spindle at a constant temperature and maintains longevity.
3.The unique reality of the 3-axis screw, the machining accuracy is more accurate.
4.The router spindle is very high precision and air-cooled. which keeps the spindle at a constant temperature and maintains longevity.
Specification
|
Model
|
K45MT-1325
|
|
Product name
|
132 cnc router machine
|
|
Control system
|
DSP A11
|
|
Spindle
|
3.5kw air Cooling
|
|
Spindle speed
|
24,000rpm
|
|
Working area
|
1300X2500X200mm
|
|
Max. speed
|
35,000mm/min
|
|
Max. cutting speed
|
Max. cutting speed
|
|
Motor
|
Stepper
|
|
Inverter
|
3.7kw Xinjie
|
|
Drive motor
|
Steper Motors
|
|
Spindle speed
|
10,000mm/min
|
|
Table
|
Vacuum Adsorption + T-slot
|
|
Software
|
Artcam & Alphacam Software/UK
|
|
Command code
|
G code
|
|
Working voltage
|
AC380V/50-60Hz, 3-phase
|
Our advantages
2.Your transition period from delivered to making money is minimized with our full support staff and technician training. Not only do we provide over-the-phone training; we also send out a technician to work with you.
3.Our machine are treated by high-temperature tempering and vibration stress relief (VSR) to reduce residual stress; ensure good stability and not easy to deform, always keep machine accurate.
4.Our company verified by Bureau Veritas (Company profile certification, Business scope certification, Enterprise quailification certification ). Our machines are CE certified and ISO 9001 certified.
5.Our company covers an area of 16000 m², has an independent machine tool processing workshop, in the world has a number of agents.
Machine Parts
ball screw Taiwan TBI
(TBI, Taiwan) produce C5 class ball screw, precision is less than 0.03mm,Ball screw has dust prove device on both ends and both
Layers, may completely isolate dust, and then prolong life.
Layers, may completely isolate dust, and then prolong life.
DSP A11 Handheld controller
New three-axis linkage motion mode to achieve comprehensive controlling. Support intelligent file checking function.
Oil lubrication system
Note:It is recommended that one pump of the oiler once a month will be sufficient to keep your machine lubricated. When the oil tank needs filling,top up with a good quality SAE 30 weight oil.
Vacuum Table T-Slots
The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table. Clamps are provided.

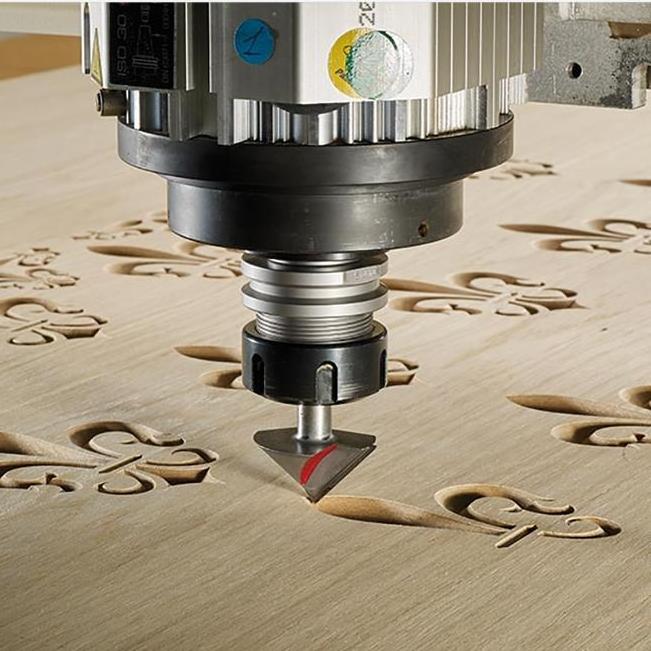

3.5 kw air cooling spindle
18000rpm Milling,Engraving,Drilling Every spindle motor must be passed polishing process, Improve spindle concentricity to
increase motor working life.
increase motor working life.
vacuum pump-option
No oily odors.,Low noise and libration,Maintenance-free. High pressure and low noise Max dutput480³/h, Max pressure -440/500mba, speed 28000rpm
Applicable industry
Application Industry
1.Woodworking: wooden doors and furniture, windows, tables and chairs, cabinets and panels, 3-D boards, MDF, musical instrument, etc.
2.Advertising: show bills, logotypes, sign boards, 3-D models, acrylic cutting, LED/neon billboards, 3-D letters, light boxes, dies, molds.
3.Handicraft industry: sculpture of copper, aluminum engraving, metal molds, polyethylene film, PVC, etc.
Decorations and ornaments: acrylic, decorative board, artificial stone, organic glass, non-ferrous metals (aluminum, copper, brass), etc.
4.Relief sculpture and 3D engraving.
Packing & Delivery
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port
4.According to customer's requirements for loading the whole container or LCL at Qingdao port
