- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PVB
-
Model Number:
-
JDB-1U
-
Base Material:
-
bronze, brass or customized
-
Lubricant:
-
oil or grease
-
Bush types:
-
Cylinder, Collar, Thrust Waser, plates
-
Certification:
-
ISO 9001:2015;IATF 16949:2016
-
Specification:
-
Standard size and customized
-
Other products:
-
DU bush, DX bush, bimetal bearing, oiles plates, bronze bearing
-
Feature:
-
Anti-wear, high load
-
Quality:
-
OEM Quality
-
Application:
-
Schwing, CIFA,Putzmeister
-
OEM Code:
-
10061082
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works
-
Type:
-
sleeve
-
Material:
-
Brass
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PVB
-
Model Number:
-
JDB-1U
-
Base Material:
-
bronze, brass or customized
-
Lubricant:
-
oil or grease
-
Bush types:
-
Cylinder, Collar, Thrust Waser, plates
-
Certification:
-
ISO 9001:2015;IATF 16949:2016
-
Specification:
-
Standard size and customized
-
Other products:
-
DU bush, DX bush, bimetal bearing, oiles plates, bronze bearing
-
Feature:
-
Anti-wear, high load
-
Quality:
-
OEM Quality
-
Application:
-
Schwing, CIFA,Putzmeister
-
OEM Code:
-
10061082

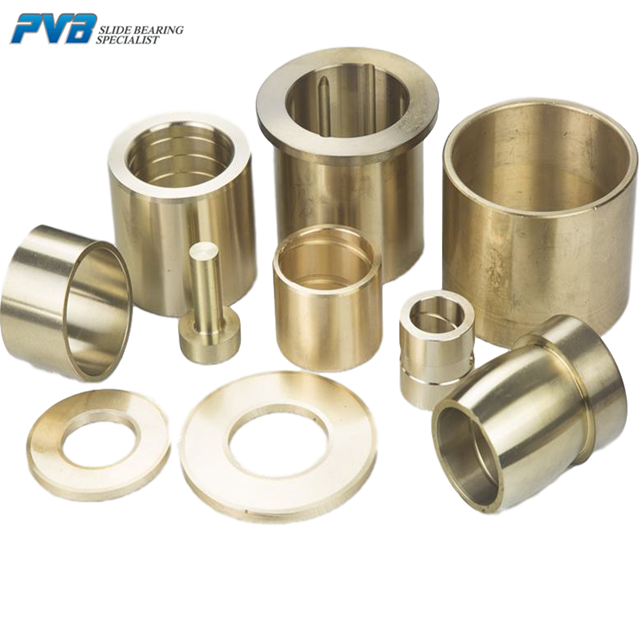

10067810 OEM bronze bush, Customized crushing machine brass bearing,C86300 bronze guide bush
| Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| HB hardness | >210 | >70 | >150 | >95 | >280 |
| Tensile strength N/mm2 | >750 | >200 | >600 | >260 | >540 |
| Yeild strength N/mm2 | >450 | >90 | >260 | >150 | >450 |
| Elongation % | >12 | >15 | >10 | >8 | >0.3 |
|
Coefficient of
linear expansion |
1.9x10-5/°C | 1.8x10-5/°C | 1.6x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C |
| Max. temp. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
| Max. load N/mm2 | 100 | 60 | 50 | 70 | 150 |
| Max. speed (Dry) m/min | 15 | 10 | 20 | 10 | 15 |
|
Max. PV
N/mm2*m/min (Lubrication) |
200 | 60 | 60 | 80 | 200 |
|
Compression deformation
300N/mm2 |
<0.01mm | <0.05mm | <0.04mm | <0.05mm | <0.005mm |
We make all kinds of bronze bearing for Putzmeister, Schwing, CIFA and etc
| Split Bushing | 285355004 |
| DU-B Bushing | 028550008 |
| DU-B Bushing | 222484006 |
| DU-B Bushing | 455706 |
| Bush DU Nut | 66586005 |
| Collar Disc Q80 | 066586005 |
| Collar disc Q90 | 427720 |
| Support Bushing | 10018047 |
| Bronze bushing | 10061082 |
| Bearing Bushing | 10018037 |
| bronze washer | 10061083 |
| bronze bushing | 10061077 |
| bronze bushing | 10007772 |
| Bronze Bush | 211731 |
| Ring | 1031126 |
| Bushing | 1071085 |
| Bushing | 1071090 |
| Ring | 1031105 |
| Ring | 1031126 |
| Bushing | 1071085 |
| Bushing | 1071090 |
| Ring | 2061100 |
| Cover Lining | 10018029 |
| Sealing Cover | 10018035 |
| Support Bushing | 10025626 |
| Bearing Bushing | 10067810 |
| Transition Piece | 10077886 |
| Guide Bushing | 10102071 |
| Bushing | 10118219 |
| Cutting Ring DN 180 | 10140388 |
| Cutting Ring DN 230 | 10166890 |
| Necking Bearing | 240046002 |
| Foot Bearing | 240047001 |
1. Q: Are you a factory or trading company?
A: We are professional factory and exporter with more than 15 years experience,we have professional
production teams, technical team, QC team and sales team.
2. Q: What is your main products?
A: DU Bush, DX Bush, Bimetal Bearing, Wrapped bronze bearing, Cast bronze bearing, Oiles bearing,
Oiles wear plates.
3. Q: How to get a sample?
A: For stocks, sample can be free of charge. If we need to make, it can be negotiated based on different
situation.
4. Q:What’s your advantage?
(1) competitive price
(2) continuously stable high quality
(3) professional OEM manufacturer
(4) professional sales and technical team to understand your requirement very well
(5) perfect customer service. Reply your inquiry or email within 6 hours on working time and 12 hours
on weekends
(6) perfect package to protect your goods during long distance transportation
5. Q:What is your Minimum quantity?
A: Different type of bushes have different MOQ,pls contact us for details.
6. Q: What is your lead time?
A: Lead time depends on bush type and order quantity. Normally, our lead time is 20 days after receiving your
down payment. If the items you choose with stocks, we can delivery within 3 working days
