Quick Details
-
Voltage:
-
110v/220v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
800*550*800mm
-
Weight:
-
150 KG
-
Product name:
-
Fish Meat Picking Bone Removing Machine
-
Application:
-
Make Fish Food
-
Material:
-
Stainless Steel
-
Advantage:
-
Easy Operation High Efficiency
-
Final product:
-
Shrimp Meat
-
Package:
-
Wooden Case
-
MOQ:
-
1 Set
-
Energy:
-
Electricity
-
Operation:
-
1 Person
-
Fish aplicable:
-
Diferent Kinds
Quick Details
-
Production Capacity:
-
180KG/H
-
Place of Origin:
-
China
-
Brand Name:
-
Xing
-
Voltage:
-
110v/220v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
800*550*800mm
-
Weight:
-
150 KG
-
Product name:
-
Fish Meat Picking Bone Removing Machine
-
Application:
-
Make Fish Food
-
Material:
-
Stainless Steel
-
Advantage:
-
Easy Operation High Efficiency
-
Final product:
-
Shrimp Meat
-
Package:
-
Wooden Case
-
MOQ:
-
1 Set
-
Energy:
-
Electricity
-
Operation:
-
1 Person
-
Fish aplicable:
-
Diferent Kinds
Product Description

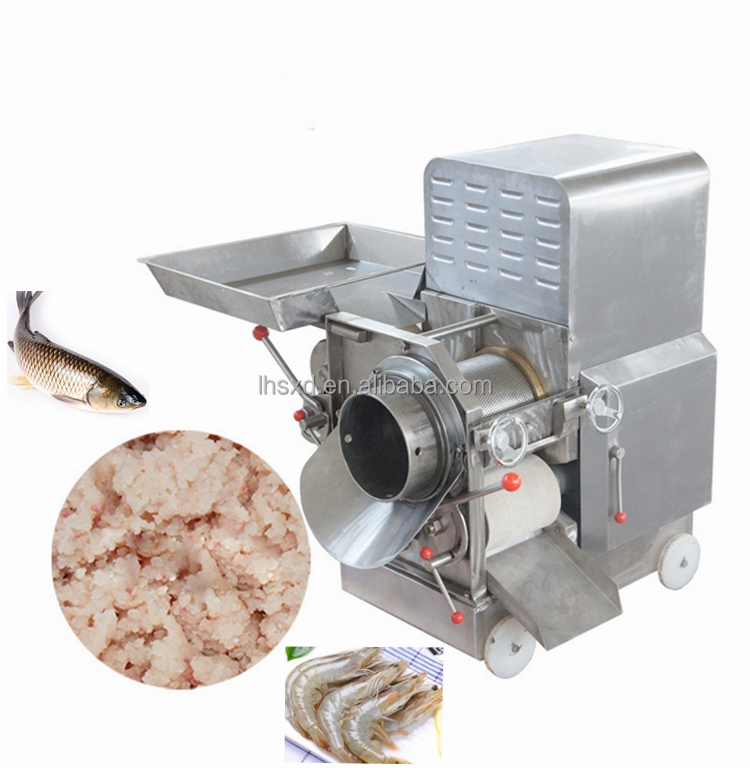

The fish and meat picking machine is used for various freshwater, seawater fish, shrimp skinning and meat removal special machines, fish eggs, fish balls, food factories, fishing boats and other units. This machine is mainly composed of electric motors, scrapers, and tensioning devices. , Transmission device, conveyor belt, fish bone discharge port, surimi discharge port,operating drum, fresh fish feed port and other major components.
Specification
|
Power:
|
2.2kw
|
|
Capacity:
|
180kg/h
|
|
Belt thickness:
|
20mm
|
|
Mesh diameter:
|
2.4/2.7/3/3.2/4.5mm
|
|
Cylinder length:
|
300mm
|
How to operate
Cut small or medium-sized fish and put them directly in. Large fish need to be removed after removing their heads and tails, cut into pieces, and put them in. The fish bodies are squeezed through a low-speed and high-density stainless steel sieve tube and conveyor belt to bring out the fish bones, spurs, skin, scales, etc. The clean surimi is driven by a gearbox or reducer. The torque is large and low-speed operation is stable and does not heat up. The whole machine is made of stainless steel, which meets sanitary requirements. It is easy to clean and highly efficient. The economic value of low-cost fish meat and the saving of manual scraping of fish meat. It is an ideal equipment for processing fish meat products in coastal areas.
Mesh of meat
Finish product
Packing and shipping:
Company information:
Our services:
1) Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
