Quick Details
-
Model Number:
-
BS300
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BESTER
-
Theory:
-
Light sensor
-
Brand:
-
photocell sensor
-
Voltage - Supply:
-
220-240V
-
Output Type:
-
10A
-
Current - Supply:
-
10A
-
Operating Temperature:
-
-25~40
-
Current - Supply (Max):
-
10A
-
Frequency:
-
50/60
-
Current:
-
10A
-
Voltage Rating:
-
220-240V
-
Voltage - Rated:
-
220-240V
-
Voltage - Input:
-
220-240V
-
Power Source:
-
220V-240VAC
-
Power Frequency:
-
50/60Hz
-
Rated Current:
-
10A
-
Ambient Light:
-
<3-200LUX (adjustable)
-
TIMER setting rangeTIMER setting range:
-
1,2,3,4,5,6,7,8,9 hours (adjustable)
-
Working Temperature:
-
-20~+40℃
-
Working Humidity:
-
<93%RH
-
Product name:
-
photocell sensor
-
Warranty:
-
2 Years
-
Payment:
-
Paypal\TT\Western Union\alibaba Trade Assurance
Quick Details
-
Usage:
-
Outdoor lighting control
-
Mounting Type:
-
ceiling type
-
Description:
-
ceiling motion sensor switch
-
Model Number:
-
BS300
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BESTER
-
Theory:
-
Light sensor
-
Brand:
-
photocell sensor
-
Voltage - Supply:
-
220-240V
-
Output Type:
-
10A
-
Current - Supply:
-
10A
-
Operating Temperature:
-
-25~40
-
Current - Supply (Max):
-
10A
-
Frequency:
-
50/60
-
Current:
-
10A
-
Voltage Rating:
-
220-240V
-
Voltage - Rated:
-
220-240V
-
Voltage - Input:
-
220-240V
-
Power Source:
-
220V-240VAC
-
Power Frequency:
-
50/60Hz
-
Rated Current:
-
10A
-
Ambient Light:
-
<3-200LUX (adjustable)
-
TIMER setting rangeTIMER setting range:
-
1,2,3,4,5,6,7,8,9 hours (adjustable)
-
Working Temperature:
-
-20~+40℃
-
Working Humidity:
-
<93%RH
-
Product name:
-
photocell sensor
-
Warranty:
-
2 Years
-
Payment:
-
Paypal\TT\Western Union\alibaba Trade Assurance

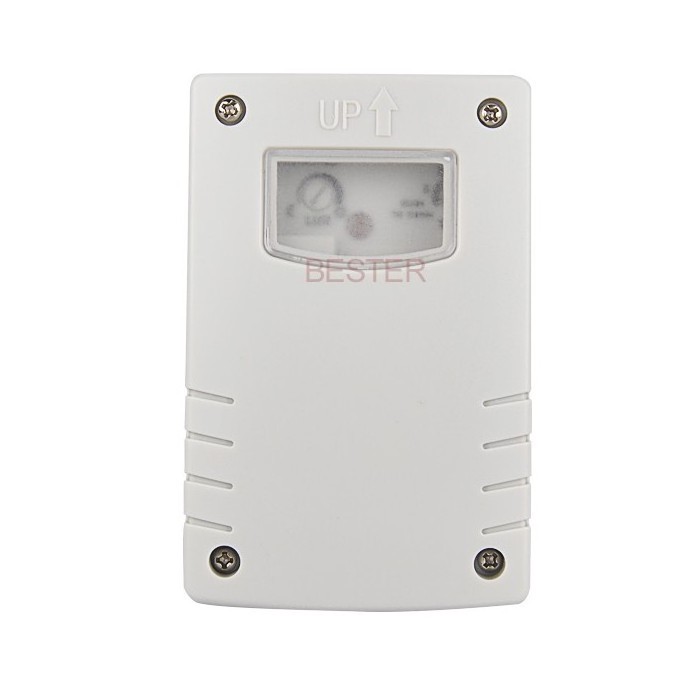

photo controls day night sensor switch for outdoor used,photocell sensor switch BS300
Product Description
T his item is an automatic photocell switch for lamps. W hen the ambient- light darken to the LUX you setting in advance, the lighting will turn on. T he lighting will turn off at the preset time or ambient
light lager than the setting LUX. It adds the functions of LUX adjustable and TIME setting. I t is easier and more comfortable t for user.
Specification:
| Power Source | 100V-130VAC 220V-240VAC |
| Rated Current | 10A |
| Ambient Light | <3-200LUX (adjustable) |
| TIMER setting range | 1,2,3,4,5,6,7,8,9 hours (adjustable) |
| Working Humidity | <93%RH |
FUNCTION:
Ø LUX adjustable: turn to MOON position with anticlockwise, it means the photocell will only work in the dark(less than 3LUX). If slowly turn to SUN position with clockwise, it will change the LUX value from d usk to dawn, and working in dawn only.
Ø TIMER setting: this photocell has regular light-controlled function (light is turned on in the night, and turned off in the daylight ) and TIMER function, it means that you can set time you want the photocell works with a stated LUX value
INSTALLATION (see the figures)
Ø Switch off the power.
Ø Moving the screws in the items and cover, Mount the bottom case on the wall and connect the cable as shown in connection-wire figure.
Ø Please install the item with the correct direction what shows in the cover and according to the correct installation place with the enclosed inflated screws.
Ø Please install the item with the Screwing the cover. Switch on the power and test it.
TIMER SETTING
The LED will flash to display the preset times as following:
1. 1 hour: flash one time
2. 2 hours: flash two times
3. 3 hours: flash three times
4. 4 hours: flash four times
5. 5 hours: flash five times
6. 6 hours: flash six times
7. 7 hours: flash seven times
8. 8 hours: flash eight times
9. more than 8 hours: flash nine times
10. dusk to dawn: rapidly flash about 3 seconds
TEST
Ø Switch on the power.
Ø Please prepare a opaque (such as towel) when you testing in daytime.
Ø When the towel covers the detection window of the photocell, the ambient light of the items will be dark, it makes lamp on.
Ø When take off the towel , it makes lamp off by automatically.
Ø This item could be chosen and adjust the detect light by user between from 2LUX (dark) or 200LUX (dawn).
NOTE
Ø In front of the photocell, it should be no obstruction effecting to accept natural light .
Ø In front of the photocell, it should be no swaying object.
Ø D on ’ t install the photocell under of light or the place where the light will be irradiated to the photocell.
Ø When lamp is on and the intensity of another light source reaches the light off LUX value, and this light lasts for more than one minute, the lamp will switch of f , the electronic TIMER will stop counting. T he TIMER will be counted from starting when the light is turned on in next time. .
Ø The electronic TIMER will reset by the following status when the p ower off over 2 ~5 seconds .
Deal information
MOQ: 100pcs
Trade term: EXW Shenzhen
Delivery time:2-3working days for sample order,10-15 working days for mass order
Warranty term
1.Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, BESTER will provide free/rework new products based on the proof-documents
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, BESTER will provide paid maintance within warranty period.
