Quick Details
-
Printing:
-
1-2 colors
-
Embossing:
-
1-2 units
-
Embossing Design:
-
as request
-
Power:
-
4 KW
-
Electrical Brand:
-
: IMPORT
-
Operation:
-
easy
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Fujian, China
-
Color:
-
Sky Blue
-
Printing:
-
1-2 colors
-
Embossing:
-
1-2 units
-
Embossing Design:
-
as request
-
Power:
-
4 KW
-
Electrical Brand:
-
: IMPORT
-
Operation:
-
easy

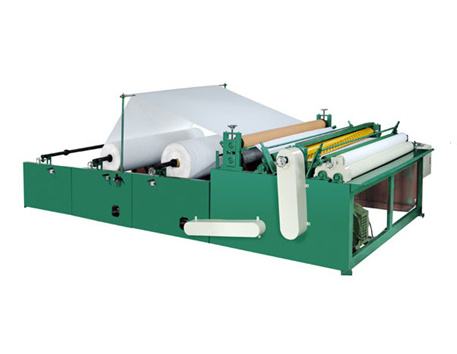

HX-FJ-1575 Semi Automatic Toilet Paper Machine
Toilet Paper Roll Sample
Embossing Pattern
Functions and Features
1 . Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.
2 . Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6 . Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
The Main Technical Parameters
|
Jumbo Roll Max Width |
1750mm (Other size can be specified) |
|
Jumbo Roll Diameter |
Φ 1100mm |
|
Jumbo Roll Inner Diameter |
3inches(76.2mm) |
|
Finish Product Diameter |
Φ 80- φ 140mm |
|
Finish Product Inner Diameter |
φ 32- φ50 mm |
|
Perforation Distance |
100-150mm |
|
Production Speed |
0-100m/min |
|
Parameter Set |
HMI, Touch Screen |
|
Pneumatic System |
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa ( Provide by user ) |
|
Total Power |
7.5-15KW(depends on model and configuration) |
|
Unwind Stands |
1-2 Stands |
|
Unwinding Transmission |
Frequency Stepless Speed Regulation |
|
Rewinding Unit |
With Core or Coreless |
|
Dimension |
7800X3000X1720mm |
|
Weight |
3500~4500kg |
Other Model
|
model |
1575 |
1760 |
2200 |
2500 |
2800 |
|
Max.parent roll width(mm) |
1750 |
2000 |
2150 |
2400 |
2700 |
|
Max.parent roll diameter |
Standard diameter1100m m unless otherwise specified |
||||
|
Qty of unwind stand |
1-3 stands (please specify when order) |
||||
|
core inner dia.of parent roll |
Standarddiameter3”(76.2mm) unless otherwise specified |
||||
|
Data setting |
HMI |
||||
|
Programming controller |
PLC |
||||
|
Operate speed |
0-100m/min |
||||
|
outer dia.of finished log |
diameter 60-150mm |
||||
|
core inner dia.of finished log |
diameter 25-50m |
||||
|
diameter of finished log control |
Electronic/Air control |
||||
|
Mechanical driving |
Driving by Stepless gear box |
||||
|
Air -system |
3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) |
||||
|
Main driving |
Frequency conversion spe ed regulation 9KW 380V,50HZ |
||||
|
Embossing unit |
can be choose |
||||
|
Dimensions |
6x3x1.7 (length x width x height)(m) |
||||
|
weight |
3T |
||||
