Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Control System:
-
Touch Screen+PLC
-
Capacity:
-
80-100kg/h
-
Name:
-
waste recycling machine/plastic melter densifier/styrofoam waste
-
Final product:
-
hot melted ingot
-
Color:
-
Optional
-
Product name:
-
EPS recycled hot melter/EPS foam hot melting densifier
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Chinafor
-
Weight (KG):
-
1800
-
After-sales Service Provided:
-
Free spare parts
-
Control System:
-
Touch Screen+PLC
-
Capacity:
-
80-100kg/h
-
Name:
-
waste recycling machine/plastic melter densifier/styrofoam waste
-
Final product:
-
hot melted ingot
-
Color:
-
Optional
-
Product name:
-
EPS recycled hot melter/EPS foam hot melting densifier
waste recycling machine/plastic melter densifier/styrofoam waste
Qinfeng waste recycling machine has organized technical staff to make research on both domestic and abroad markets and absorb the international advanced technologies to develop the EPS waste plastic recycling equipment successfully,under the guide idelogy of reducing the size of the waste plastic.
The CF-HM-200 plastic melter densifier by Chinafor is used for the middle size waste recycling center,the EPS,EPP,EPE material can all treated by this unit, processing multiple materials-packing box,containers,foaming box. The space of the waste material can be reduced 80%-90%.
This new equipment is High-performance, space saving, easy to transport the finished produce. The operation is pollution-free, no – smoke and can protect the environment, and avoid the secondary pollution. Complete reuse th waste plastic and create interest.

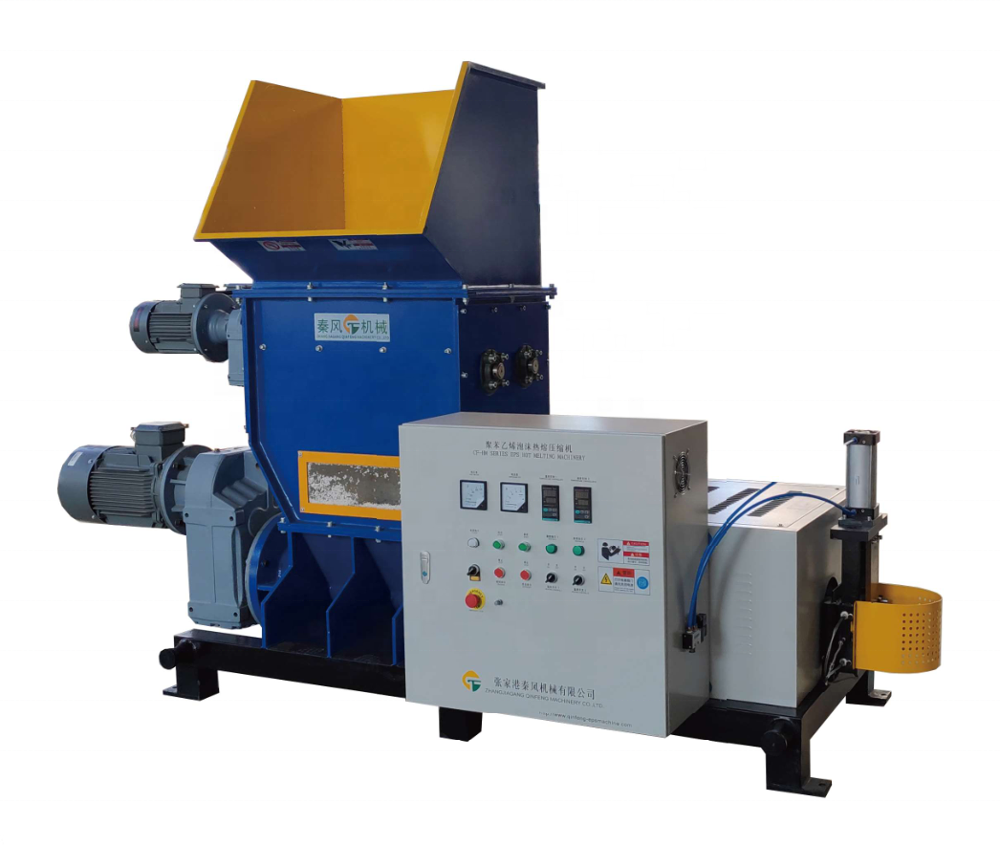

EPS foam hot melting densifier CF-HM 200
The following sizes are for reference and special requirements can be discussed in detail
|
Plastic Recycling Machine CF-HM200 |
||||
|
Model Styrofoam compactor |
CF-HM200 Hot melting machine |
|||
|
Capacity |
80-100kg/h |
|||
|
Screw Diameter |
φ197mm |
|||
|
Screw distance |
150 mm |
|||
|
Screw rotation speed |
110r/min |
|||
|
Crusher blades |
2Sets 9 +10sets |
|||
|
Crusher rotation speed |
100r/min |
|||
|
Main motor |
15kw |
|||
|
Crusher motor power |
2.2kw X2 |
|||
|
Heating power |
10 kw |
|||
|
Size |
2800x1580 x1950 mm |
|||
Below are the configurations used by our various components.
Advantages:
1. Lower noise——machine drives by gearbox,not the belts.
2.Safe——There is a protective cover at the outlet;The inlet height is in accordance with safety standards;The reducer drives the
machine to operate safely and efficiently,And there is emergency stop in the control system.
3.Have nice after-sale service——Provide installation and debugging if the customer needs;12 months warranty.
4.Cost-effective——The quality of the machine is much better than that of Henan rubbish machine, and the price is cheaper than that
of Greenmax.
5.Long service life——After one year , we will serve the customer continually and the machine can running well more than 10 years
if it is good maintained.
6.Optional Electrical elements——Inverter(when install inverter,it can deal with different type material:EPS,EPP,EPE.) and the
other elements we can set in the machine according to the customer’s requirement.
Operational principle :
Firstly, the foam plastic is put into the crushing bin for crushing. The crushing knife will break the foam plastic into small pieces of foam, and then screen through the filter screen.Through the material by high-speed rotating screw, will be broken to the conveying of conical cylinder and circular cylinder, the ceramic heater heating material melt, then continue to the molten material molding square mouth, material began to cool, from the mouth die extrusion circular recycling objects, according to the required length, cutting machine automatically cut off is complete by cylinder production process.
