Quick Details
-
Production Capacity:
-
30-50 bag/min, 60-100 bag/min, 100-180 bag/min
-
Weight (KG):
-
2500
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HC, HC
-
Dimension(L*W*H):
-
2950*1260*2150 MM
-
Material:
-
SUS 304/316
-
SUS 304/316:
-
PLC Control
-
OEM:
-
Yes
-
Product name:
-

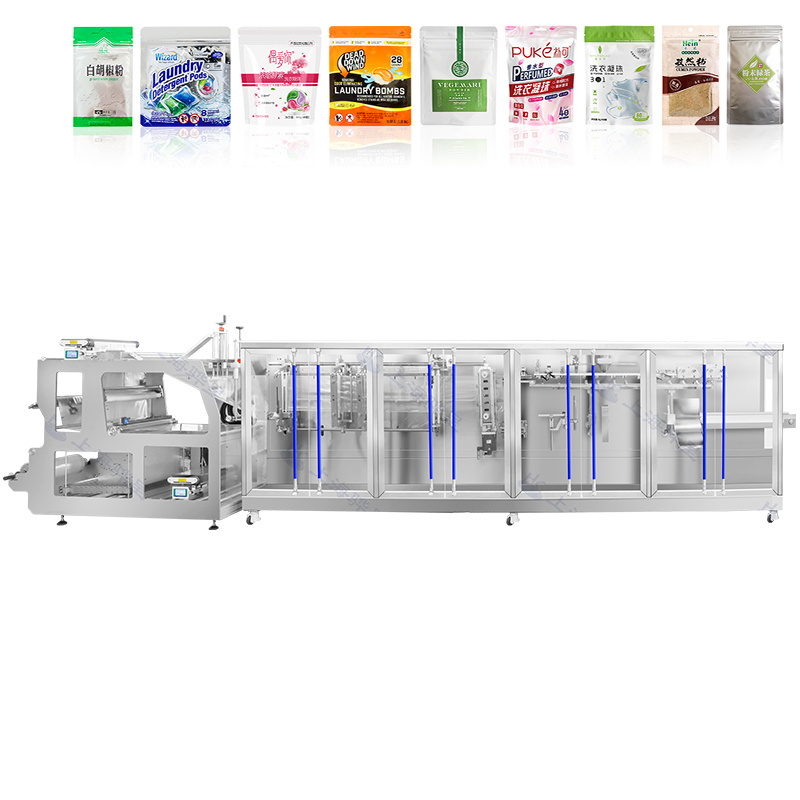

HFFS stand up zipper sachet doypack packing machine
Quick Details
-
Function:
-
FILLING, Labeling, Capping, Sealing, Embossing, SLITTING, counting, Adding zipper
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
30-50 bag/min, 60-100 bag/min, 100-180 bag/min
-
Weight (KG):
-
2500
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HC, HC
-
Dimension(L*W*H):
-
2950*1260*2150 MM
-
Material:
-
SUS 304/316
-
SUS 304/316:
-
PLC Control
-
OEM:
-
Yes
-
Product name:
-
HFFS stand up zipper sachet doypack packing machine
Product Description
The zip stand Pouch Packing Machine Series is specially designed for the needs of zipper bags. It can also add special functions,
such as: hanging holes, special-shaped and so on. The series also has a large bag series. To meet the needs of large-dose
packaging in zipper stand-up pouch packaging.
such as: hanging holes, special-shaped and so on. The series also has a large bag series. To meet the needs of large-dose
packaging in zipper stand-up pouch packaging.
HC roll film zipper pouch packaging machines could realize high filling accuracy, fast packing speed, easy
to operate and adjust. It is widely applied in food, Daily chemical etc. industries all over the world like United State, Europe,
Southeast Asia, South Africa etc.with CE certification and tech. Patents.
to operate and adjust. It is widely applied in food, Daily chemical etc. industries all over the world like United State, Europe,
Southeast Asia, South Africa etc.with CE certification and tech. Patents.
Specification
|
Item
|
doypack
|
180SP/180SZ
|
240SP/240SZ
|
330SP/330SZ
|
|
Parameters
|
Min(W*H)
|
90×110mm
|
110×120mm
|
130×160mm
|
|
|
Max(W*H)
|
180×225mm
|
240×320mm
|
330×460mm
|
|
|
packing vol max
|
1000ml
|
2000ml
|
3000ml
|
|
|
speed(bag/min)
|
≤60
|
≤60
|
≤60
|
|
|
film thickness
|
60-180ų
|
60-180ų
|
60-180ų
|
|
|
film roll outer.dia
|
500mm
|
500mm
|
500mm
|
|
|
film roll inner.dia
|
70-80mm
|
70-80mm
|
70-80mm
|
|
|
machine size
(mm) |
6700×1200×1800
|
7500×1200×1800
|
8500×1200×1800
|
|
work condition
|
machine weight
|
2100kg
|
2400kg
|
2400kg
|
|
|
temperature
|
-10ºC-+55ºC
|
-10ºC-+55ºC
|
-10ºC-+55ºC
|
|
|
moisture
|
below 85%
|
below 85%
|
below 85%
|
|
|
vol.
|
AC380V,50Hz
|
AC380V,50Hz
|
AC380V,50Hz
|
|
|
air
|
400L/min
|
400L/min
|
400L/min
|
|
|
power
|
9Kw
|
9.5Kw
|
9.5Kw
|
|
Duplex model
|
180SD
|
240SD
|
240SD
|
|
paramters
|
70×110mm
|
90×125mm
|
90×125mm
|
|
|
90×225mm
|
120×250mm
|
120×250mm
|
|
|
300ml
|
500ml
|
500ml
|
|
|
60-120
|
60-120
|
60-120
|
|
|
60-180ų
|
60-180ų
|
60-180ų
|
|
|
500mm
|
500mm
|
500mm
|
|
|
70-80mm
|
70-80mm
|
70-80mm
|
|
|
6900mm×1200mm×1800mm
|
7200mm×1200mm×1800mm
|
7200mm×1200mm×1800mm
|
|
|
2100kg
|
2500kg
|
2500kg
|
|
work condition
|
-10ºC-+55ºC
|
-10ºC-+55ºC
|
-10ºC-+55ºC
|
|
|
below 85%
|
below 85%
|
below 85%
|
|
|
AC380V,50Hz
|
AC380V,50Hz
|
AC380V,50Hz
|
|
|
0.6-0.7Mpa
|
0.6-0.7Mpa
|
0.6-0.7Mpa
|
|
|
400L/min
|
400L/min
|
400L/min
|
|
|
8.8Kw
|
9.8Kw
|
9.8Kw
|
Advantages
1) HMI Display includes instruction manual and troubleshooting
2) Parallel motion of the vertical sealing bars enables for improved sealing quality and easier maintenance.
3) Full servo motion : This smart servo-control system allows independent operation between the different stations, offers great reliability and little maintenance.
5) Multiple steps of sealing are needed to guarantee sealing quality
6) filling : allow hot and cold filling
2) Parallel motion of the vertical sealing bars enables for improved sealing quality and easier maintenance.
3) Full servo motion : This smart servo-control system allows independent operation between the different stations, offers great reliability and little maintenance.
4) Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
5) Multiple steps of sealing are needed to guarantee sealing quality
6) filling : allow hot and cold filling
1. independent film frame-stable film forming for doypack pouches and can add film align device and film sterilization
vacuum pump
film sterilization
film align device
2. Servo film pulling 1,servo pulling is stable and easy to change sizes
3. can adding zipper and spout to doypack pouches
|
1.coding
|
cold press code or touch code form, date QR code, bar code can be realized
|
|
2.easy notch
|
easy notch cutting
|
|
3 Hanging hole
|
round hole or euro hole
|
|
4.independent film frame
|
Independent doypack bag forming advice
|
|
5.film align(optional)
|
align film automatically
|
|
6.top spout (optional)
|
adding top spout inserting station
|
|
7.corner spout (optional)
|
adding corner spout inserting station
|
|
8.double time filling
|
increase the speed by double-head filling for big package
|
|
9.bag support
|
adding bag support for big package
|
|
10 conveyor
|
select the finished product conveyor belt to transport
|
