100% Original Authentic 220V Generator Electric Motor Ac Contactor

100% Original Authentic 220V Generator Electric Motor Ac Contactor

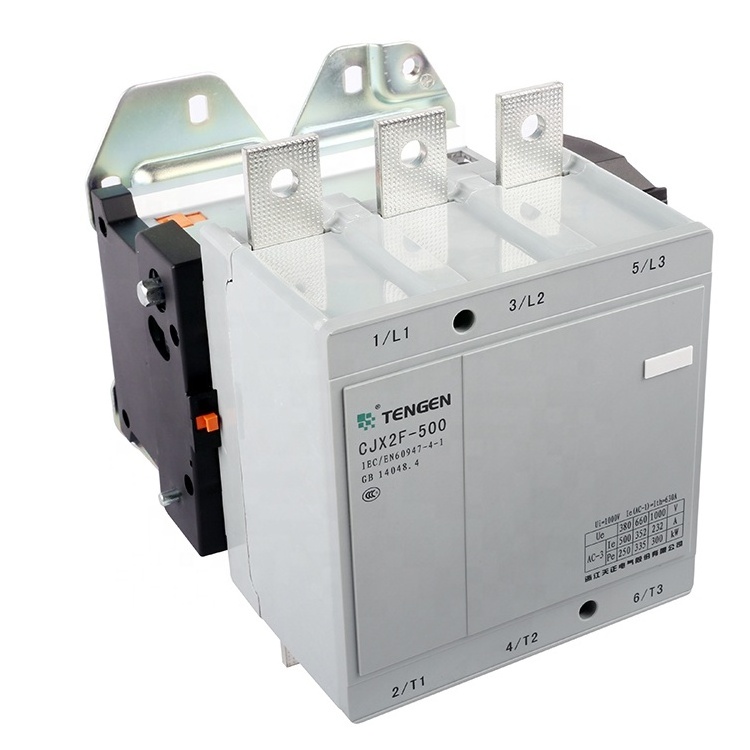

electric motor ac contactor

Application

*CJX2-N series AC contactor(hereinafter to be referred as contactor), It mainly applies to the circuit of AC 50 Hz or 60 Hz and rated insulation voltage 1000V. When used in AC-3 and rated operational voltage 380V, the rated current up to 800A, for long distance breaking circuit and frequently starting or control the moto. It can avoid short circuit when reversing.
*Combined with the electromagnetic starter and proper thermal overload relay can protect load circuit Contactor can frequently start and control AC electromotor.
*This product conforms to GB14048 4 and IEC60947-4-1 standard

Normal Running and Installation Conditions

*Ambient air temperature:-5℃-+40℃, the average value should not exceed +35℃ within 24 hours

*Elevation: at most 2000m
*Atmospheric conditions:
1. When the temperature at 40, the relative humidity of atmosphere should be at the most 50%
2. When at relatively low temperatures, it could have higher relative humidity
3. Monthly maximum relative humidity could not more than 90%
4. Special measures should be taken due to occurrence of dews

*Class of pollution: Class 3
*Installation category:Ⅲ
*Installation conditions: Degree of inclination between fitting suiface and vertical suiface should not exceed ±5°
*Impact shock: Product should be installed and used in the place where often shakes and impacts.

Structure Feature

*The contactor and contactor system is direct action type, the lower base ues the aluminium alloy material, the coil is plastic structure and coil magnetism system is integrated, which can be take out or put in directly Using and maintenance is convenient.
*The contactor can add two auxiliary contact blocks, which will have 8 extra contacts.
*The contactor has short arcing distance. For example, the arcing distance of CJX2-115-330 contactor is only 10mm(200-500V), which is about one sixth of the previous contactor of same capactiy. It is excel lent complementary element used for an electric control deviced occupies smaller space in a complete set of equipment.
*Adopt building block system to mount auxiliary contact block, air delay auxiliary contactor, etc.
*The mechanical interlock can be added to the contactor in both horizontal direction and vertical direction.
*The contactor can be made to two pole three pole and four pole.
