Quick Details
-
Revolution:
-
14r/min
-
Dimension(diameter* length):
-
690*3200mm
-
Reception shaft dimensions:
-
1900mm
-
Launch shaft dimensions:
-
2800mm
-
Charge pump motor power:
-
5.5kW
-
Discharge pump motor power:
-
11kW
-
Injection pump motor power:
-
4kW
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
3500 kg
-
Torque:
-
22kN.m
-
Revolution:
-
14r/min
-
Dimension(diameter* length):
-
690*3200mm
-
Reception shaft dimensions:
-
1900mm
-
Launch shaft dimensions:
-
2800mm
-
Charge pump motor power:
-
5.5kW
-
Discharge pump motor power:
-
11kW
-
Injection pump motor power:
-
4kW
Contact Way
Products Description

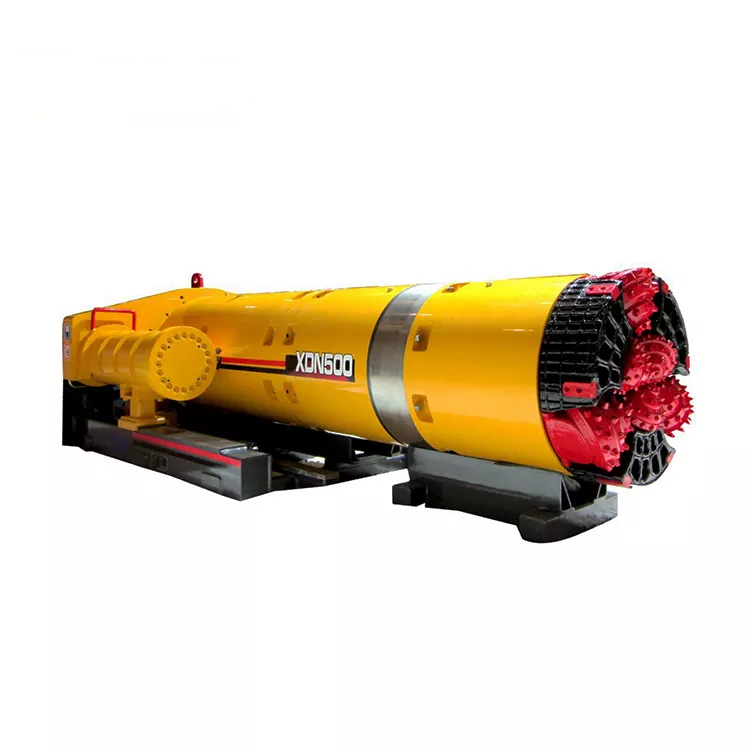

Trenchless Underground Tunnel Boring Machine Pipe Jacking Machine XDN500 For Sale
High reliability
Hydraulic overload protection system is reliable and safer,and the water proof is good.
Great geology adaptability
Revolution can be adjusted without grade and different cutting wheels are designed for different ground conditions.So it makes great adaptability.
High rock breaking efficiency
The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing which also makes rock pieces easier to discharge.
Good construction operability
Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve a balance of jacking speed and delivery of slurry flow.
Product Paramenters
|
Description
|
|
Unit
|
Parameter value
|
|
|
Pipe diameter
|
ID
|
mm
|
Φ500
|
|
|
|
OD
|
|
Φ670
|
|
|
Outer diameter× length
|
|
mm
|
Φ690×3200
|
|
|
Rotation system
|
Motor power
|
kW
|
37
|
|
|
|
Torque
|
kN.m
|
22
|
|
|
|
Revolution
|
r/min
|
14
|
|
|
Roll correction system
|
Force per cylinder
|
kN
|
150
|
|
|
|
Cylinder number
|
EA
|
3
|
|
|
|
Steering angle
|
°
|
3
|
|
|
slurry line diameter
|
|
mm
|
Φ75
|
|
|
Weight
|
|
kg
|
3500
|
|
|
Jacking system Motor power
|
|
kW
|
15
|
|
|
Jacking cylinders
|
Thrust
|
kN
|
1000
|
|
|
|
Number
|
EA
|
2
|
|
|
|
Stroke
|
mm
|
760×2
|
|
|
Launch shaft dimensions
|
|
mm
|
Φ2800
|
|
|
Reception shaft dimensions
|
|
mm
|
Φ1900
|
|
|
Charge pump motor power
|
|
kW
|
5.5
|
|
|
Discharge pump motor power
|
|
kW
|
11
|
|
|
Injection pump motor power
|
|
kW
|
4
|
|
