Quick Details
-
Model Number:
-
322
-
Pressure requirements:
-
8-10 bar
-
Equipment size:
-
(1850X1350X2040)mm
-
Tire pressure:
-
12000 N
-
Maximum tire diameter:
-
1140mm
-
Tire width:
-
350 mm (14")
-
Turntable speed:
-
6 rpm
-
Working power:
-
220V-1ph-50Hz - 380V-3ph-50Hz
-
Inner support size:
-
12" - 24"
-
Year:
-
2014-
-
Outer clamp size:
-
10''- 22''
Quick Details
-
Power Supply:
-
220V-1ph-50Hz - 380V-3ph-50Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
corghi
-
Model Number:
-
322
-
Pressure requirements:
-
8-10 bar
-
Equipment size:
-
(1850X1350X2040)mm
-
Tire pressure:
-
12000 N
-
Maximum tire diameter:
-
1140mm
-
Tire width:
-
350 mm (14")
-
Turntable speed:
-
6 rpm
-
Working power:
-
220V-1ph-50Hz - 380V-3ph-50Hz
-
Inner support size:
-
12" - 24"
-
Year:
-
2014-
-
Outer clamp size:
-
10''- 22''
Product Description

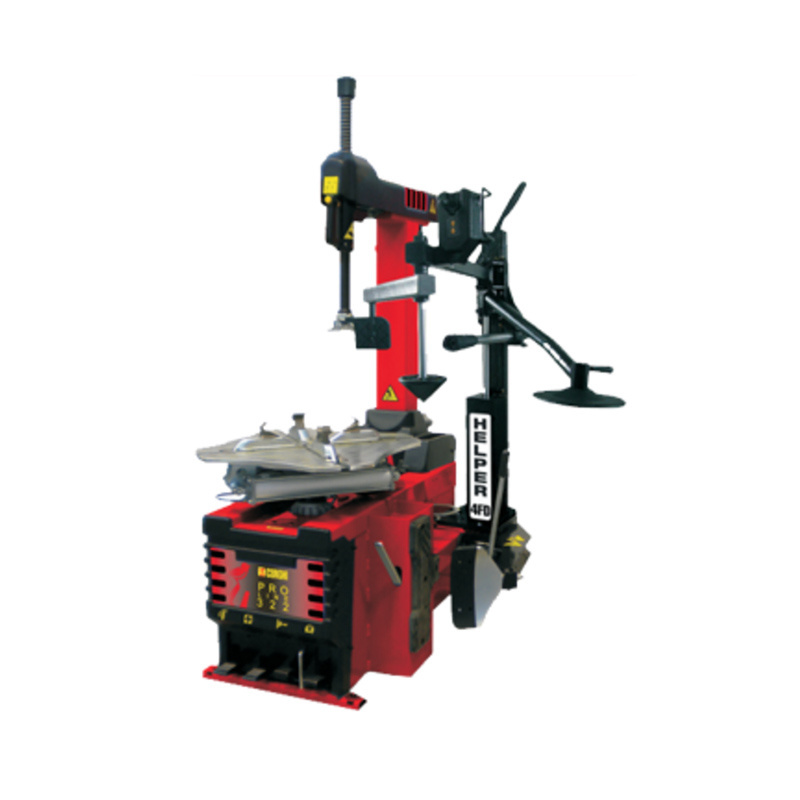

Car tire changer, Proline 322+ auxiliary arm,corghi
|
Working power
|
220V-1ph-50Hz - 380V-3ph-50Hz
|
|
Inner support size
|
12” - 24”
|
|
Outer clamp size
|
10’’- 22’’
|
|
Opening distance of tire shovel
|
400mm
|
|
Tire pressure
|
12000 N
|
|
Maximum tire diameter
|
1140mm
|
|
Tire width
|
350 mm (14”)
|
|
Turntable speed
|
6 rpm
|
|
Pressure requirements
|
8-10 bar
|
|
Equipment size
|
（1850X1350X2040）mm
|
|
Body weight
|
255kg
|
Features
1.Pneumatic lifting arm
2.Mechanical balance tire removal tool arm
3.Synchronized positioning of the tire removal tool arm and the claw
4.Double acting tire press cylinder
2.Mechanical balance tire removal tool arm
3.Synchronized positioning of the tire removal tool arm and the claw
4.Double acting tire press cylinder
5.The center of the turntable is self-positioning, and can be rotated clockwise and counterclockwise at a single speed.
6.Humanized storage space at the bottom of the back arm
6.Humanized storage space at the bottom of the back arm
7. Import of key components (tire removal head, pedal, gear box, etc.)
8. Automatic tire changer for cars, light trucks and motorcycles
