Quick Details
-
Weight (KG):
-
1800 KG
-
Product name:
-
Cold Heading Screw Machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dovin
-
Power (kW):
-
2.2
-
Weight (KG):
-
1800 KG
-
Product name:
-
Cold Heading Screw Machine

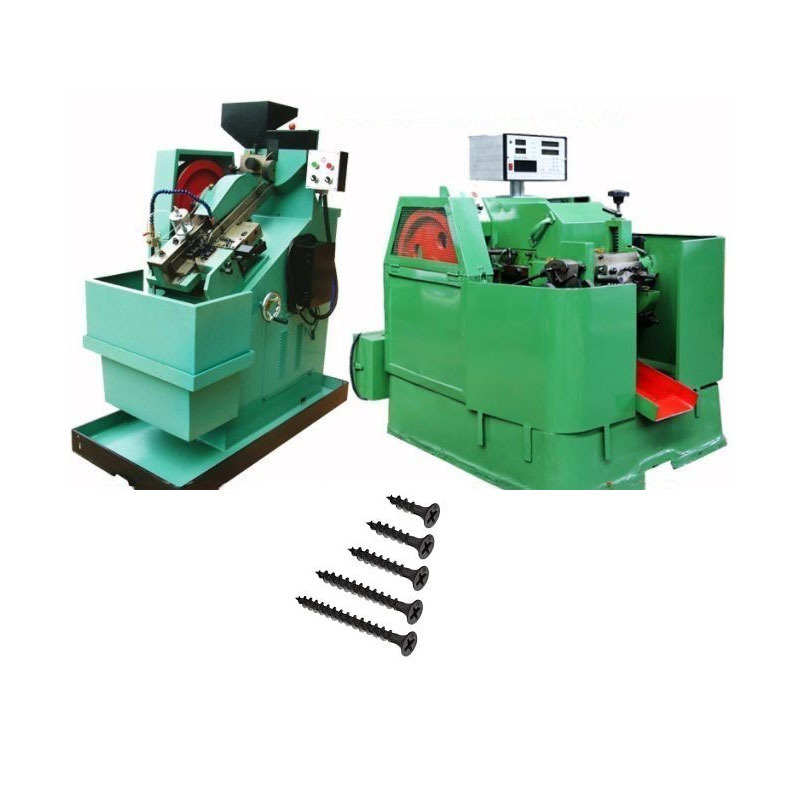

Product Overview
Cold heading machine /Heading machine
This equipment is specially used to produce a group of ordinary screw products. The high speed and precision of this machine greatly improve the production efficiency.
This equipment is specially used to produce a group of ordinary screw products. The high speed and precision of this machine greatly improve the production efficiency.
Production process:
1.
Self-tapping nail manufacturing process:
heading machine → thread rolling machine → heat treatment → galvanizing
2.
Wood screw production process:
Heading machine → tooth rubbing machine → boiled black
PRODUCT DESCRIPTION
Thread rolling machine / tooth rolling machine
The equipment is to arrange screws and hardware products in an orderly manner, cut and roll them, and process various ordinary screws.
Product parameters
|
Cold Heading Machine
|
|
|
|
|||
|
Model
|
|
Dovin-CHM5-6
|
Dovin-CHM5-6-A
|
|||
|
Nail diameter range
|
mm
|
2.2-5.5mm
|
2.2-5.5mm
|
|||
|
Nail length diameter range
|
mm
|
5-65mm
|
8-92mm
|
|||
|
Main die size
|
mm
|
34.5*80.5mm
|
34.5*100
|
|||
|
Punches die diameter
|
mm
|
31mm
|
31
|
|||
|
Cut-off die diameter
|
mm
|
19mm
|
19
|
|||
|
Motor power
|
kw
|
2.2
|
2.2
|
|||
|
Capacity(pcs/min)
|
pcs
|
120-160
|
130-140
|
|||
|
Overall dimension
|
mm
|
1100*700*750
|
1900*950*1250
|
|||
|
Weight
|
kg
|
1800kg
|
1980
|
|||
